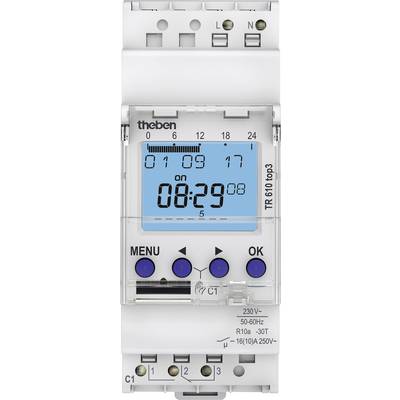

Theben 6100130 DIN rail mount timer TR610 top3 230 V AC Week settings
EAN:
Part number:
Item no:
Type
Week settings
Contact type
1 change-over
Switching voltage (max.)
250 V AC
Switching current (max.)
16 A
Product type
DIN rail mount timer
Number
Total (€ 130.24 / piece)
€ 159.66
-18 %
€
Only 3 Piece(s) available
Highlights & Details
Digital timer TR 610 top 3
- 56 memory locations
Technical specifications
- Type
TR610 top3
- Type
Week settings
- No. of switching intervals
56
- Power reserve
10 years
- Connection
Screw terminal
- Operating voltage
230 V AC
- Contact type
1 change-over
- Switching voltage (max.)
250 V AC
- Switching current (max.)
16 A
- Min. temperature
-30 °C
- Max. temperature
+55 °C
IP20
- Width
35.8 mm
- Height
128.2 mm
- Depth
69.2 mm
- Dim
(W x H x D) 35.8 x 128.2 x 69.2 mm
- Content
1 pc(s)
- Factory colour
Multicolour
- Mounting type
DIN rail
DIN rail
35
90 mm
60 mm
Change-over contact (NO/NC)
2
AC
IP20
- Product type
DIN rail mount timer
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1618701 Theben 6100130 DIN rail mount timer TR610 top3 230 V AC Week settings
User & Safety Instructions 1618701 Theben 6100130 DIN rail mount timer TR610 top3 230 V AC Week settings
Description
Digital timer switch with week program. The date and time is set at the factory. Text-oriented operator guidance on the display with switchable lighting. Full operability also without power connection. Automatic summer/winter time changeover, which can be deactivated. Switching rules for Europe, USA and other countries are already highlighted with a dark background. Dedicated switchover rule or switching to a fixed date can be selected. Interface for OBELISK top2 memory card for PC-based programming. Also, a app-programmierung is possible. Secure transmission via optional Bluetooth Low Energy OBELISK top 3. Maximum Security from manipulation, time switching programs can only be transferred from the App in the watch, if the Bluetooth OBELISK top 3 in the watch.
This text is machine translated.
This text is machine translated.
Features
- Copying Programs
- Program Security
- 10 years power reserve (lithium battery)
- On-off switching times
- Circuit selection
- Continuous switching ON/OFF
- Integrated operating hours counter
- Reset possibility
- Service function for monitoring maintenance intervals
- Holiday program
- PIN code
Hints
The bluetooth stick OBELISK top 3 and memory card OBELISK top 2 are not included in the delivery.
