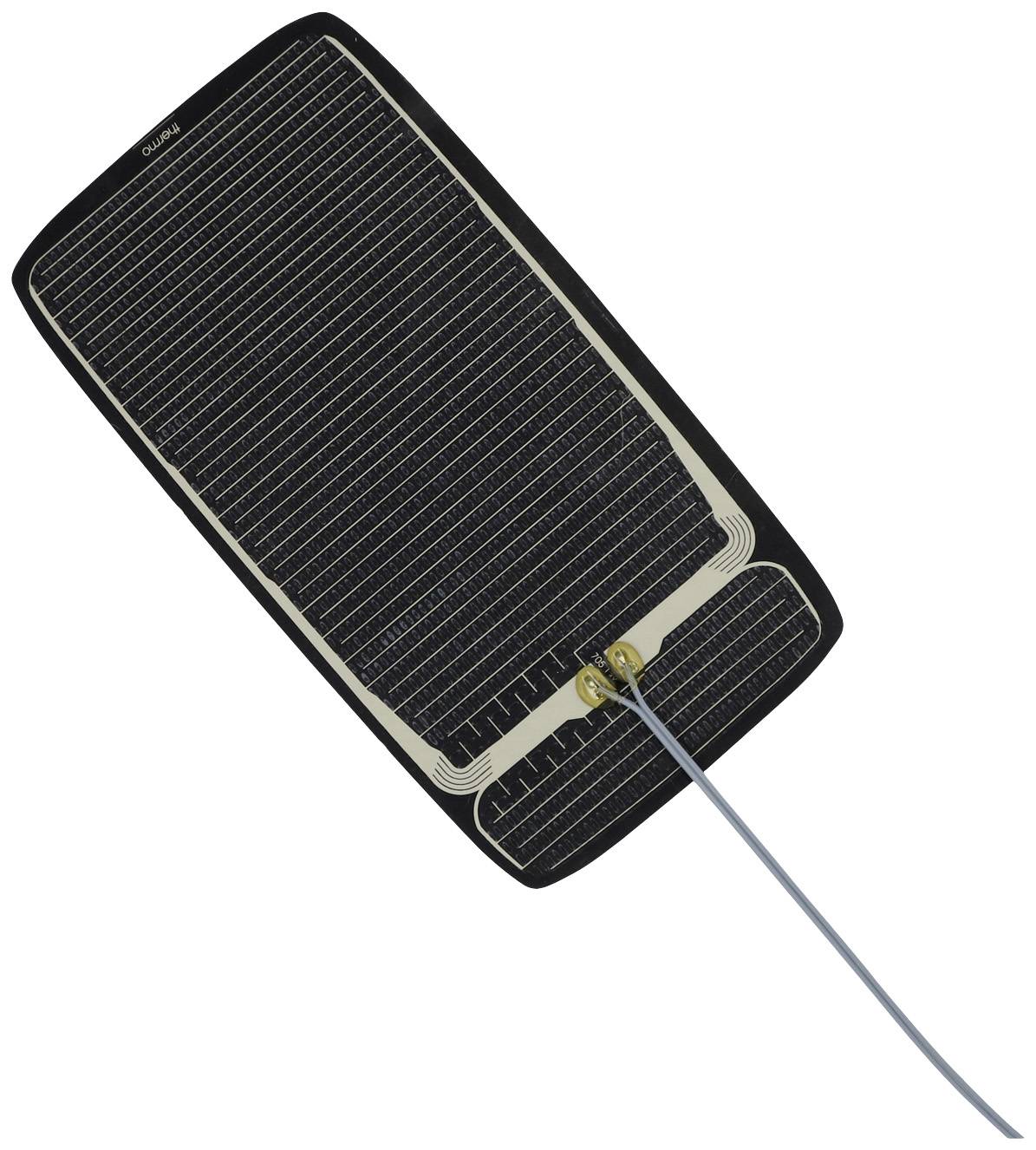

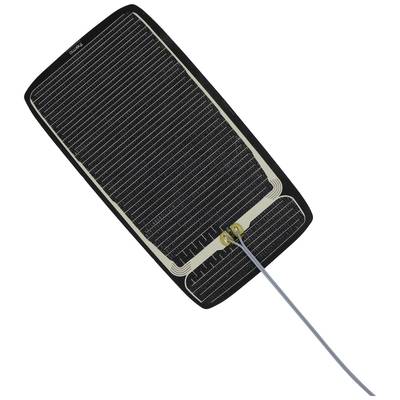

Thermo TECH Polyester Heating foil 12 V 20 W (L x W) 306 mm x 164 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 23.52
3
4% = € 1.02
€ 22.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 23.52 / piece)
€
Only 2 Piece(s) available
Technical specifications
- Operating voltage
12 V
20 W
- Material
Polyester
- Length
306 mm
- Width
164 mm
- Dim
(L x W) 306 mm x 164 mm
- Product type
Heating foil
Documents & Downloads
Datasheet
Datasheet 2634049 Thermo TECH Polyester Heating foil 12 V 20 W (L x W) 306 mm x 164 mm
Description
Heating foil made from Polyester with self adhesive rear side, splice- and rupture proof, suitable for universal application areas. To protect surfaces, equipment, housings, circuits, even various fluids against freezing temperatures. Highest Security- and performance quallity. With sealed connection cable.
This text is machine translated.
This text is machine translated.
Hints
Due to high heating power, in relation to the surface, the heating film depending on the situation, without sufficient cooling or temperature control, overheat and be damaged! The specified surface temperature corresponds to a mean value with an environmental temperature of 20 °C (45% r.H.) in still air! The target "Heating temperature" is extremely dependent on external influences such as presence and type of underground, thermal insulation, environmental temperature, air flow, air humidity, operating voltage and tolerances.
