Buy Thicon Models 58350 L945R 1:14 Electric RC scale model Kit

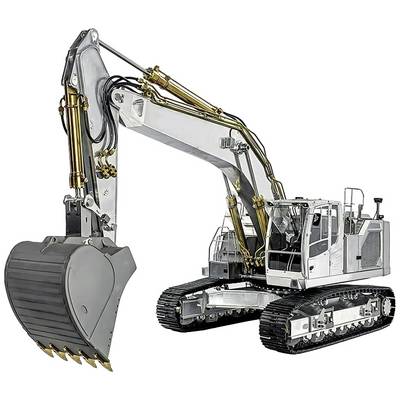

A large excavator with metal parts and hydraulic arms stands on tracks. The excavator is silver and has a large bucket.

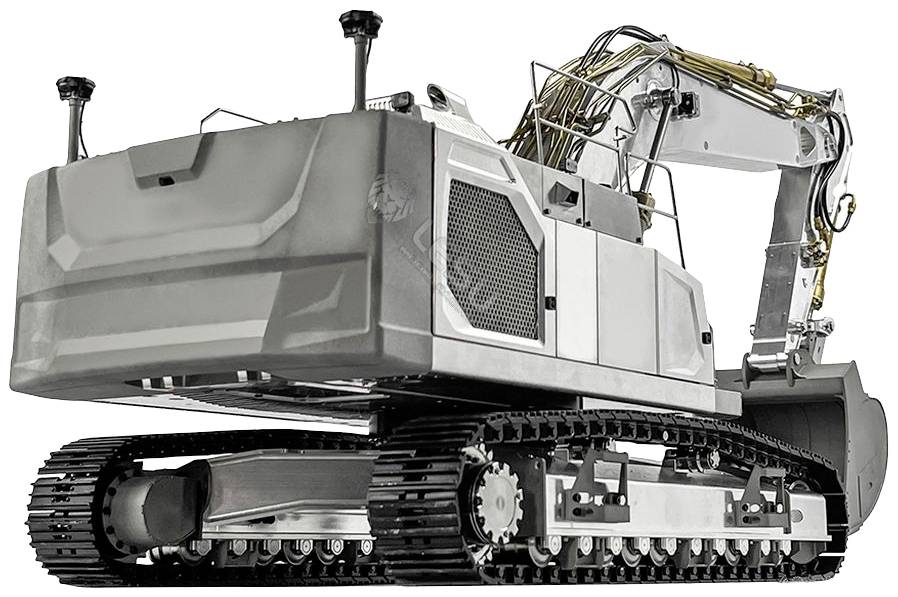

Silver excavator with tracked drive stands on a smooth surface. The arm is raised, the main body facing to the right.

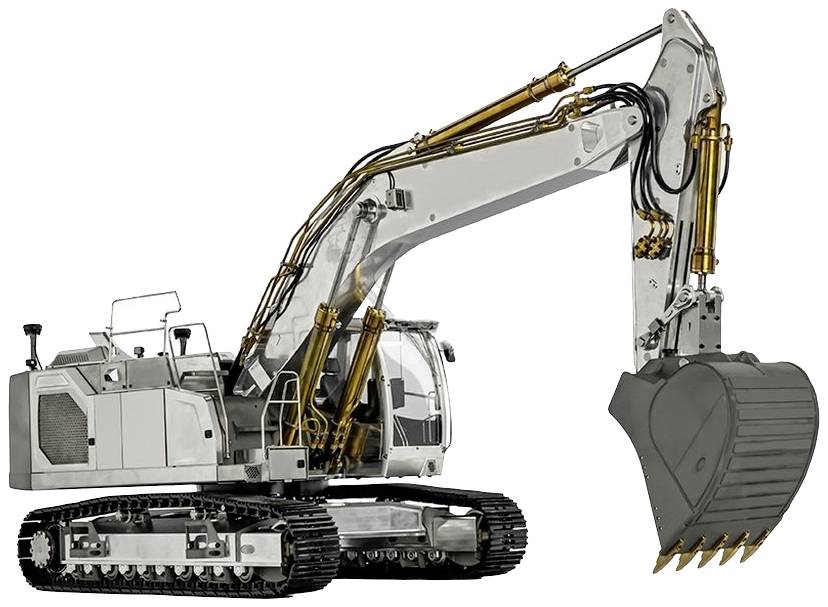

A large silver excavator with a hydraulic arm and bucket, mounted on tracks, stands ready for work.

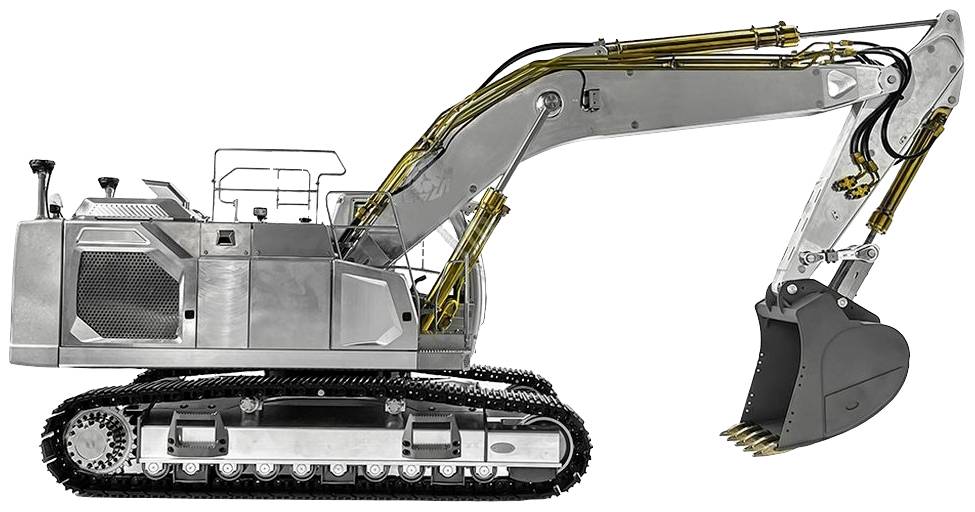

Silver excavator with tracked chassis, side view. The boom arm is extended forward, with the bucket pointing downwards.

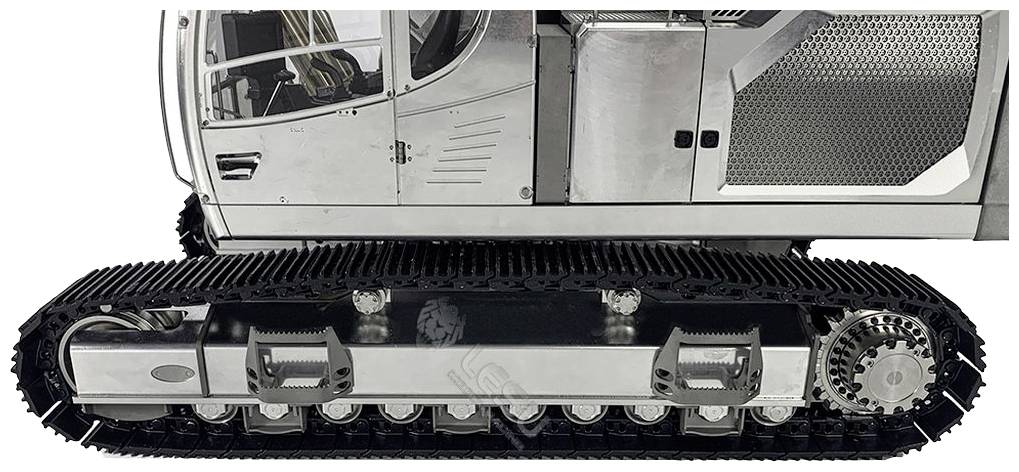

A silver model vehicle on tracks, detailed with visible mechanical and door structures, against a white background.

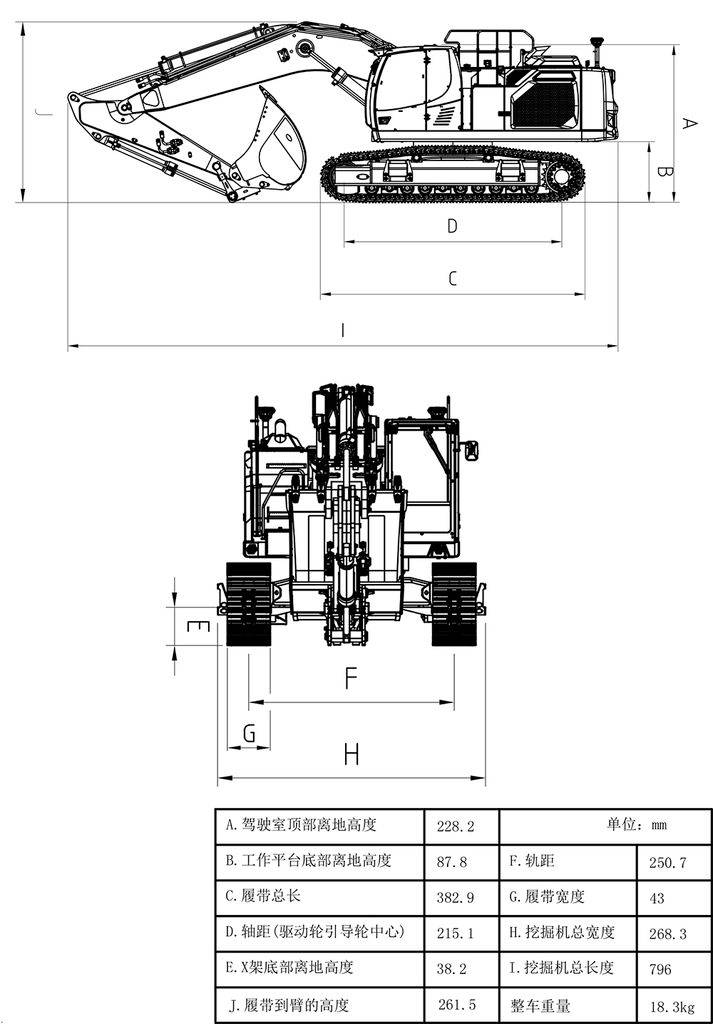

Excavators with various views and dimensions. Diagram with measurements in metres, including height, width, and length.

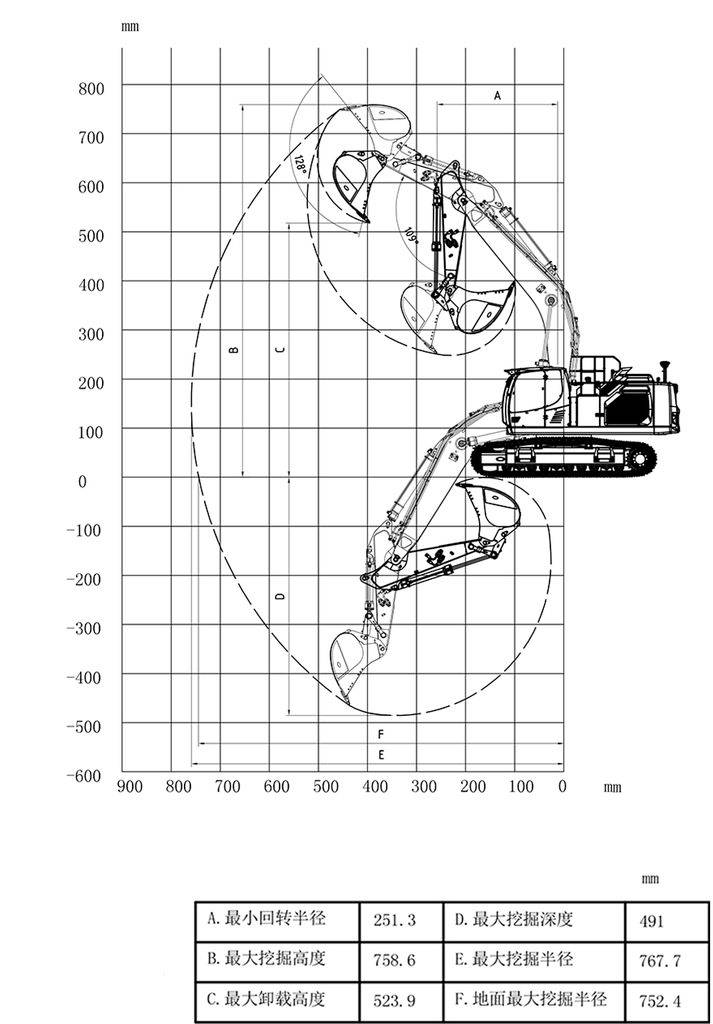

Excavator moves on a grid diagram. Shows range and digging depth. Table below provides specific measurement values.

1/9

Sales and shipping:

Number

Piece(s)

Total (€ 3,441.18 / piece)

€

Report legal concerns

Highlights & Details

1:14 chain-operated excavator L945R kit made of aluminum with hydraulics

Rotating transmission, which allows continuous rotation of the overhead wagon
The machine comes as standard with a 6-way hydraulic control block
The hydraulic cylinders are provided with brass tubes

Technical specifications

Max. Length of transport position: 796mm
Chain width 43 mm
Chain length 382 mm
Operating pressure approx. 20bar

Dim: (L x W x H) 382 x 268 x 228 mm

Weight: 18.5 kg

Height: 228 mm

Length: 382 mm

Width: 268 mm

Engine type: Electric

Model craft type: Heavy-duty vehicle

Scale: 1:14

Model version: Kit

Product type: RC scale model

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2898927 Thicon Models 58350 L945R 1:14 Electric RC scale model Kit

Description

Precisely manufactured excavator-kit made of aluminum with hydraulics. The chain-operated excavator of 45t class is made mainly of aluminum. The chain drive takes place via two powerful brushless motors, which are installed directly in the hubs. The electrical connections of the motors are made via a mechanical one. The high-performance hydraulic pump has a built-in pressure gauge for pressure monitoring. The hydraulic system even has an oil cooler with active fan.

This text is machine translated.

Scope of delivery

Unpainted excavator kit
Hydraulic system with brushless pump
Oil cooler
6-way control valve
Motors
Controllers
Servos
Installing Instructions.

Hints

Required for operation: Hydraulic oil, remote control with at least 8 channels, 7.4V Li-battery, charger.
