Thicon Models 60001 1:16 Differential shaft 1 pc(s)
EAN:
Part number:
Item no:
Show alternatives
Sales and shipping:
Number
Total (€ 184.87 / piece)
€
Highlights & Details
01:16 Differential axle rear with locking through drive 3:1
Technical specifications
- Product type
Differential shaft
- Scale
1:16
- Content
1 pc(s)
- Type
With drive through
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2390668 Thicon Models 60001 1:16 Differential shaft 1 pc(s)
Description

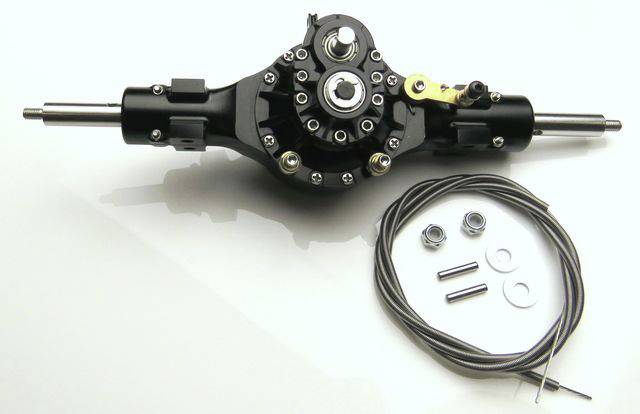

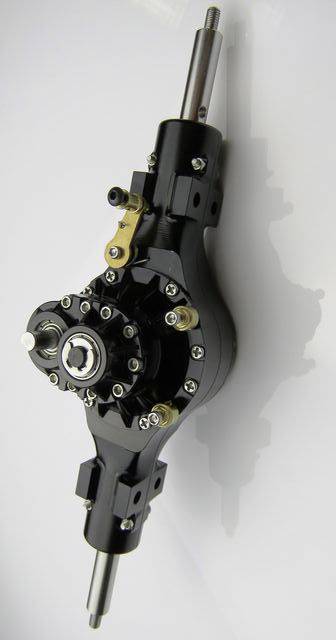

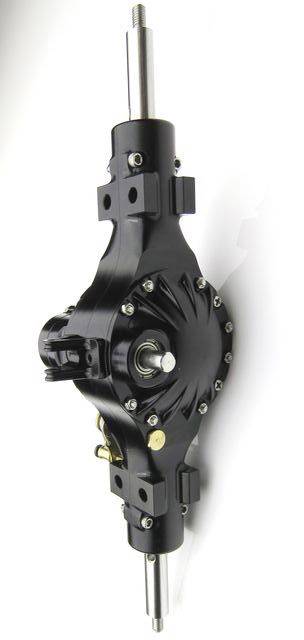

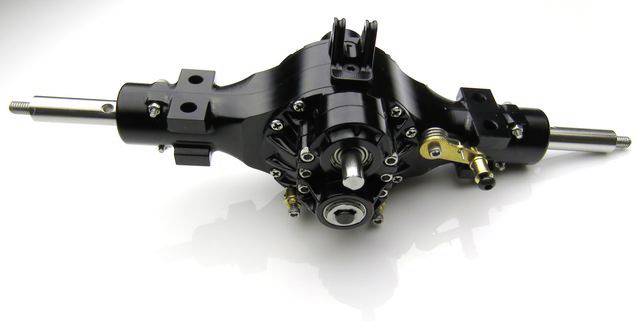

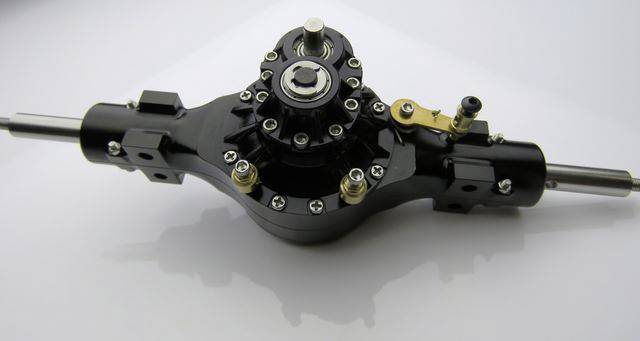

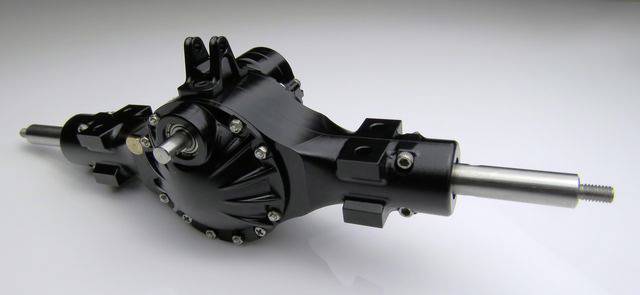

Precisely manufactured metal differential axle made of aluminum with stainless steel gear and locking mechanism that can be switched on.
The axle can be installed in all 1:16 models and can withstand even the most extreme loads.
The differential lock is activated internally by a stable metal cam ring. A steel Bowden cable is enclosed externally, with which the lock can be activated simply via a servo on the cable.
All common aluminum rims fit.
This text is machine translated.
The axle can be installed in all 1:16 models and can withstand even the most extreme loads.
The differential lock is activated internally by a stable metal cam ring. A steel Bowden cable is enclosed externally, with which the lock can be activated simply via a servo on the cable.
All common aluminum rims fit.
This text is machine translated.
Features
- Wide axis End M3 Thread: 150 mm
- Wide housing 100 mm
- Diameter axis: 6 mm, 20 mm long with M3 thread, 5 mm long
- Rim hub hole at 15 mm
- Height of housing: 37 mm, depth of housing: 43 mm
- Distance 3 mm bore
- Spring mounting 10 mm
- Spring seat width 68 mm
- Shaft: 4 mm, 5 mm long
- Bowden cable 0.6 mm
- Sleeve 2 mm.
Scope of delivery
- Metal differential with centering bracket for pendulum axle
- M4 nuts and 50 cm Bowden cable made of steel.
