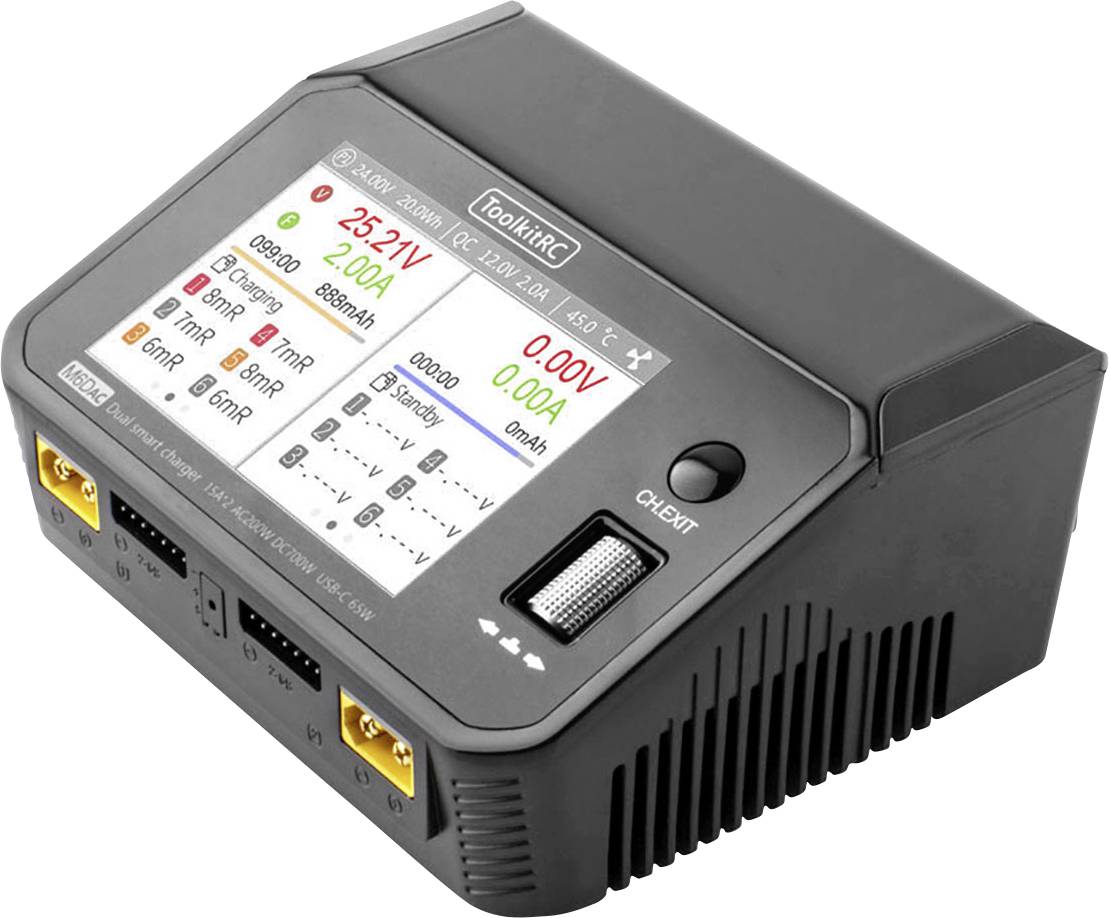

Toolkit RC M6DAC Scale model battery charger 25 A LiPolymer, LiFePO, Li-ion, LiHV, Lead, NiCd, NiMH
EAN:
Part number:
Item no:
Sales and shipping:
Number
Total (€ 147.05 / piece)
€
Technical specifications
- Input voltage DC 7-28V, max. 30A
- Charging current: 0.1-15A, 350W x2 (asynchronous mode), 0.1-25A, 700W (synchronous mode)
- Discharge current: 0.1-15A, 350W x2 (recycle mode), 0.1-3A, 15W x2 (normal mode)
- Charging accuracy <0.005V
- USB C: 65W, 20V, 3.25A (or upgrade)
- Balancer current 1000 mA, 2 6S
- Number of cells: LiPo/LiFe/LiIon/LiHV 1-6S
- Number of cells: NiMH/NiCd 1-16S
- Pb battery voltage: 1-10S
- VOLTAGE 1.0V-5.0V, 1-6S

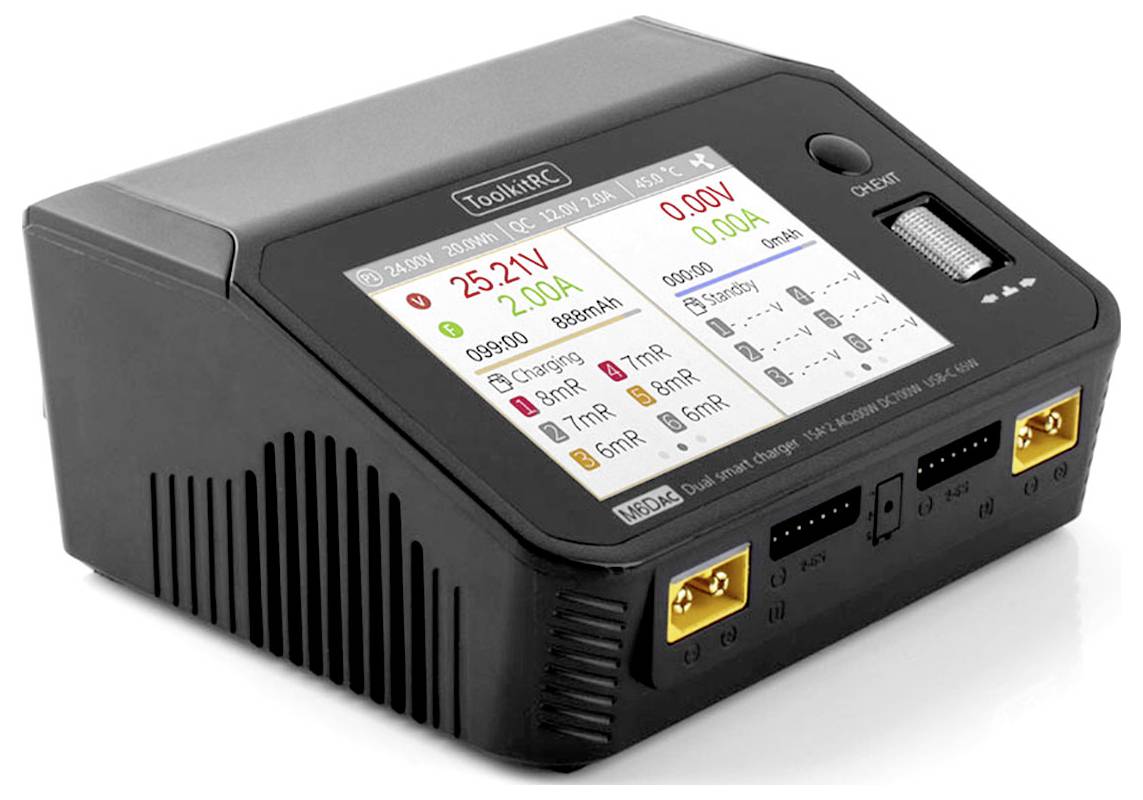

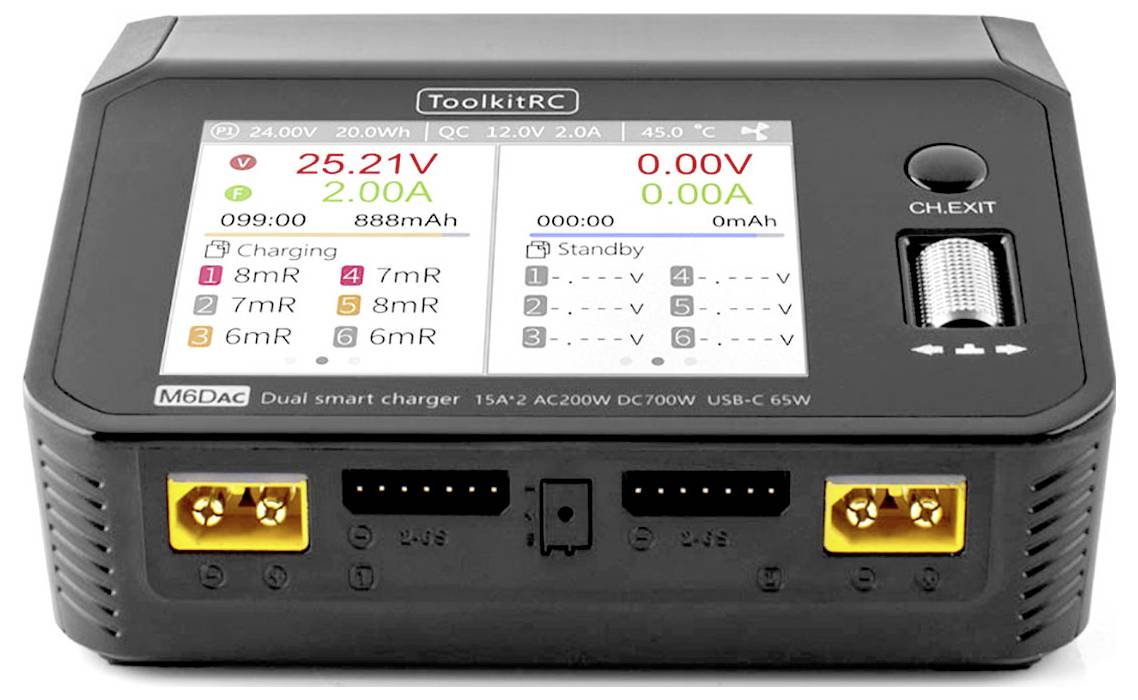

- Display: LCD, IPS 3.5' 480x320px
- Max. charging capacity
350 W
- Charging current (max.)
25 A
- Charging slots
1
- Dim
(L x W x H) 127 x 106 x 57 mm
- Height
57 mm
- Length
127 mm
- Width
106 mm
- Matching rechargeable battery
LiPolymer
LiFePO
Li-ion
LiHV
Lead
NiCd
NiMH
- Suitable for (No. of LiPo/LiIon/LiFe batteries) (max.)
6
- Suitable for (No. of LiPo/LiIon/LiFe batteries) (min.)
1
- Suitable for (no. of NiCd/NiMH batteries) (max.)
16
- Suitable for (No. of NiCd/NiMH batteries) (min.)
1
- Suitable for lead-type rechargeables (max.)
10 V
- Suitable for lead-type rechargeables (min.)
1 V
- Manufacturer part #
TK11500-EU
- Weight
520 g
- Product type
Scale model battery charger
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400275 Toolkit RC M6DAC Scale model battery charger 25 A LiPolymer, LiFePO, Li-ion, LiHV, Lead, NiCd, NiMH
Description
The M6DAC is a dual-channel charger with some useful functions for unloading, cyclic charging and general adjustment. Due to its special construction, the charger is able to supply two accumulators with more energy than just a new one. This charging process can take place with the M6DAC both synchronously and asynchronously. This makes this charger so versatile. This means that if for example two batteries are charged in synchronous mode, the charging process runs the same time and the charger can thus provide the maximum charging current of up to 25A. In asynchronous mode, on the other hand, both batteries are charged separately and thus a current of max. 15A is possible. You can also enjoy short charging times thanks to the 65 watt quick-charge output, which also supports many mobile devices such as smartphones, tablets and laptops.
This text is machine translated.
This text is machine translated.
Features
- Up to 700W charging power and a maximum of 25A charging current in synchronous mode
- Max. 350W discharge power and maximum 15 A

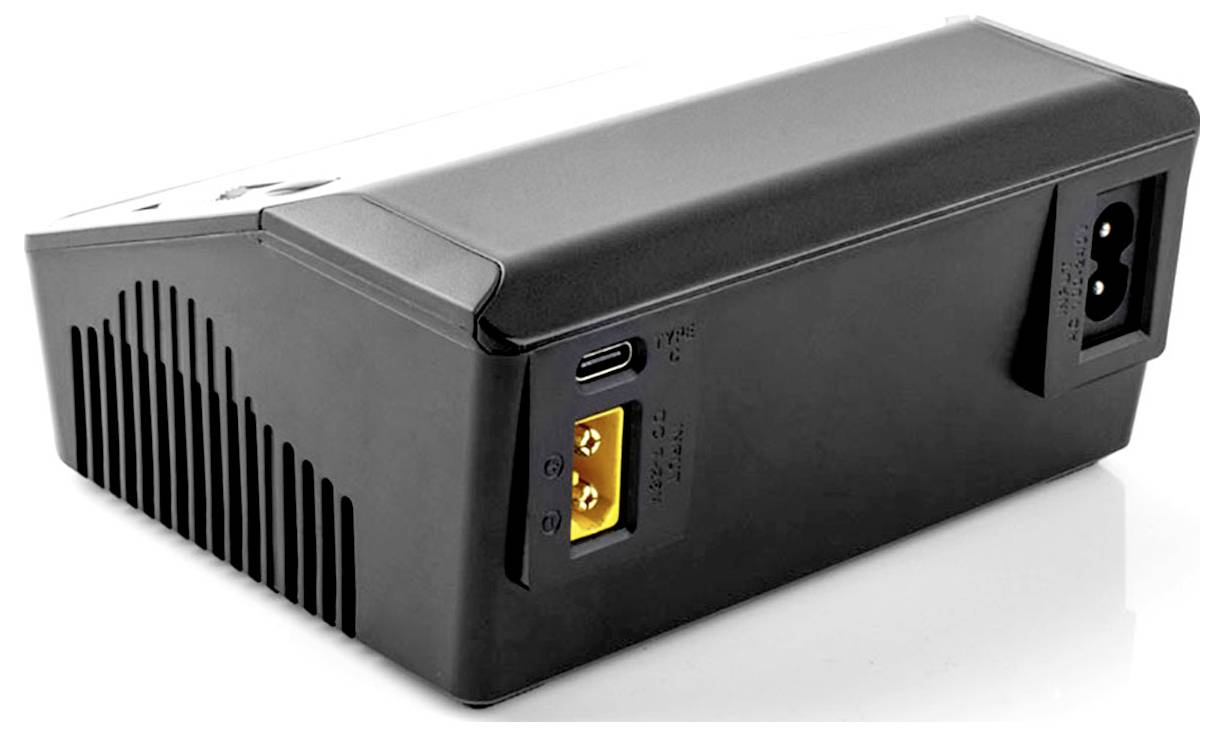

- Including DC- (7-28V) and AC input (100-240V)
- Simple operation with scroll wheel and one button
- Multilingual user interface incl. speech output
- Can be upgraded via USB
- Various safety monitors
