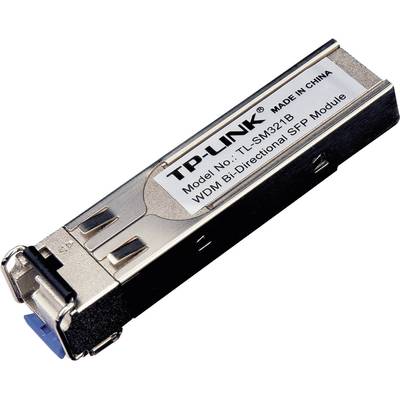

TP-LINK TL-SM321B TL-SM321B SFP transceiver module 1 GBit/s 10000 m Module type BX
EAN:
Part number:
Item no:
Show alternatives
Sales and shipping:
Total (€ 20.16 / piece)
€
Highlights & Details
Bi-directional 1000Base-BX WDM SFP module
- Bidirectional WDM SFP module
- Supports bidirectional WDM, what a single fiber used and thus cost saving.
Technical specifications
- Product type
SFP transceiver module
- Transfer rate
1 GBit/s
- Interfaces
LC
- Module type
BX
- Distances up to
10000 m
- Depth
123 mm
- Height
80 mm
- Width
38 mm
- 10/100/1000 Mbps ports
1 x
- Weight
75.00
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 995832 TP-LINK TL-SM321B TL-SM321B SFP transceiver module 1 GBit/s 10000 m Module type BX
Description
The TL-SM321B from TP-LINK uses the latest 1000Base-BX Standard for sending via one single strand of glass fiber cable with different wavelengths for each direction. You can use the range of the network with routers, switches and media converters from TP-LINK at 10 km extend high speed and stability.
This text is machine translated.
This text is machine translated.
Features
- Supports bidirectional WDM technology, uses a single fiber strand
- TX: 1310 nm/RX: 1,550 nm
- 3.3V power supply
- For use with TL-SM321A
- Plug-and-Play
- Suitable for: MC220L, TL-R 4199 G/4299 G, TL-SG 3109, TL-SL 3428/3452, TL-SG2109 WEB/2216 WEB/2224 WEB, TL-SL2210 WEB/2218 WEB/2428 WEB/2452 WEB, TL-SL1351 and other equivalent devices.
