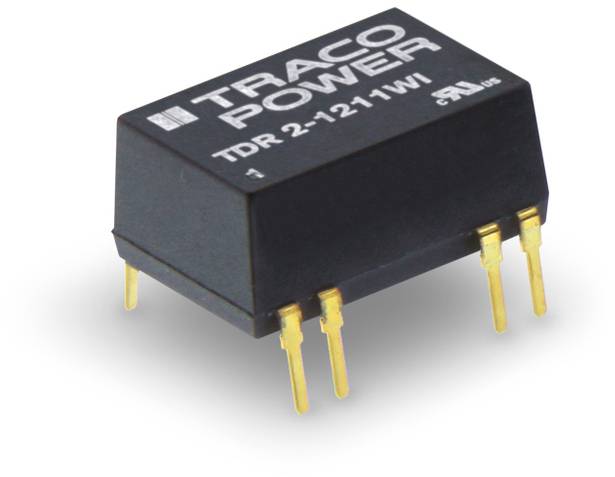

TracoPower TDR 2-2412WI DC/DC converter (print) 24 V DC 12 V DC 167 mA 2 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 24.36
30
4% = € 1.06
€ 23.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 24.36 / piece)
€
Highlights & Details
TracoPower TDR 2-2412WI DC/DC converter (print) 24 V DC 12 V DC 167 mA 2 W No. of outputs: 1 x Content 1 pc(s)
- 3-year manufacturer's guarantee
Technical specifications
- Control deviations: input change ±0.2 %, load change ±1 %
- Ripple: 30 mVpk-pk (20 MHz bandwidth)
- Type
TDR 2-2412WI
- Nominal voltage
24 V DC
- Min. input voltage
9 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Output voltages
12 V DC
- Max. output current
167 mA
- Output current (max.) - rounded
167 mA
- Efficiency (max.)
80 %
2 W
- Insulation voltage
1500 V DC
- Enclosure
DIL 14
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 18.9 x 12.8 x 8.7 mm
- Height
8.7 mm
- Length
18.9 mm
- Width
12.8 mm
- Content
1 pc(s)
2 W
- Operating temperature
(without output reduction) -40 to +85 °C
- Insulation voltage
1500 V DC
- Product type
DC/DC converter (print)
Documents & Downloads
Datasheet
Datasheet 3369972 TracoPower TDR 2-2412WI DC/DC converter (print) 24 V DC 12 V DC 167 mA 2 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3369972 TracoPower TDR 2-2412WI DC/DC converter (print) 24 V DC 12 V DC 167 mA 2 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3369972 TracoPower TDR 2-2412WI DC/DC converter (print) 24 V DC 12 V DC 167 mA 2 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3369972 TracoPower TDR 2-2412WI DC/DC converter (print) 24 V DC 12 V DC 167 mA 2 W No. of outputs: 1 x Content 1 pc(s)
Description
Compact features in the DIL 14 casing, ultra-wide 4:1 input range, no base load required. Regulated outputs, external on/off (standby 2.5 mA). Safety standards: UL/cUL 60950-1, EN 60950-1 and IEC 60950-1.
