Buy TracoPower TEL 15-2422WIN DC/DC converter 12 V DC 0.6 A 15 W

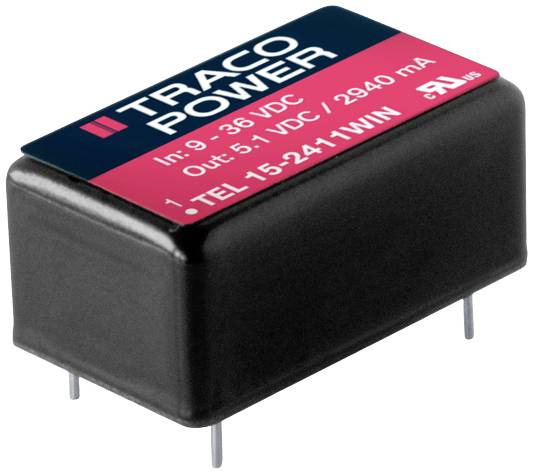

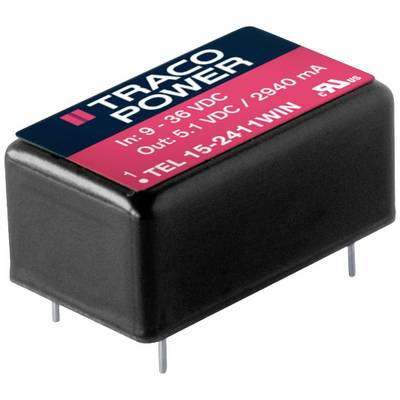

Rectangular, black Traco Power module with red and white markings. Input: 9–36 VDC, Output: 5 VDC, 2940 mA. For industrial applications.

Datasheet (PDF)

Sales and shipping:

Number

Piece(s)

Minimum order quantity: 10

Total (€ 35.29 / piece)

€

Report legal concerns

Highlights & Details

DC/DC converter, TEL 15WIN series

Output 12 V DC/0.6 A;Power 15 W

Technical specifications

Max. output current: 0.6 A

Output current (max.) - rounded: 600 mA

Dim: (L x W x H) 23.80 x 13.70 x 10.20 mm

Height: 10.20 mm

Length: 23.80 mm

Width: 13.70 mm

Type: closed

Type: TEL 15-2422WIN

Input voltage (max.): 36 V DC

Min. input voltage: 9 V DC

Operating temperature (max.): +85 °C

Operating temperature (min.): -40 °C

Output voltage (max.): 12 V DC

No. of outputs: 2 x

: 15 W

Weight: 8.8 g

Product type: DC/DC converter

Documents & Downloads

Datasheet

Datasheet 3373070 TracoPower TEL 15-2422WIN DC/DC converter 12 V DC 0.6 A 15 W

User & Safety Instructions

User & Safety Instructions 3373070 TracoPower TEL 15-2422WIN DC/DC converter 12 V DC 0.6 A 15 W

Warranty Terms

Warranty Terms 3373070 TracoPower TEL 15-2422WIN DC/DC converter 12 V DC 0.6 A 15 W

Description

The DESIGN of the TEL 15WIN series combines current specifications in terms of dimensions, reliability and cost efficiency. These DC/DC converters are housed in ultra-compact, robust DIL-16 metal housings. Efficiency of up to 87% allows reliable operation with full load at an ambient temperature of up to +55°C. This series is rounded off by an integrated filter according to EN 55032, class A and a wide 4:1 input range. The TEL 15WIN series offers a low-cost solution for applications in industry, communications and IT areas.

This text is machine translated.
