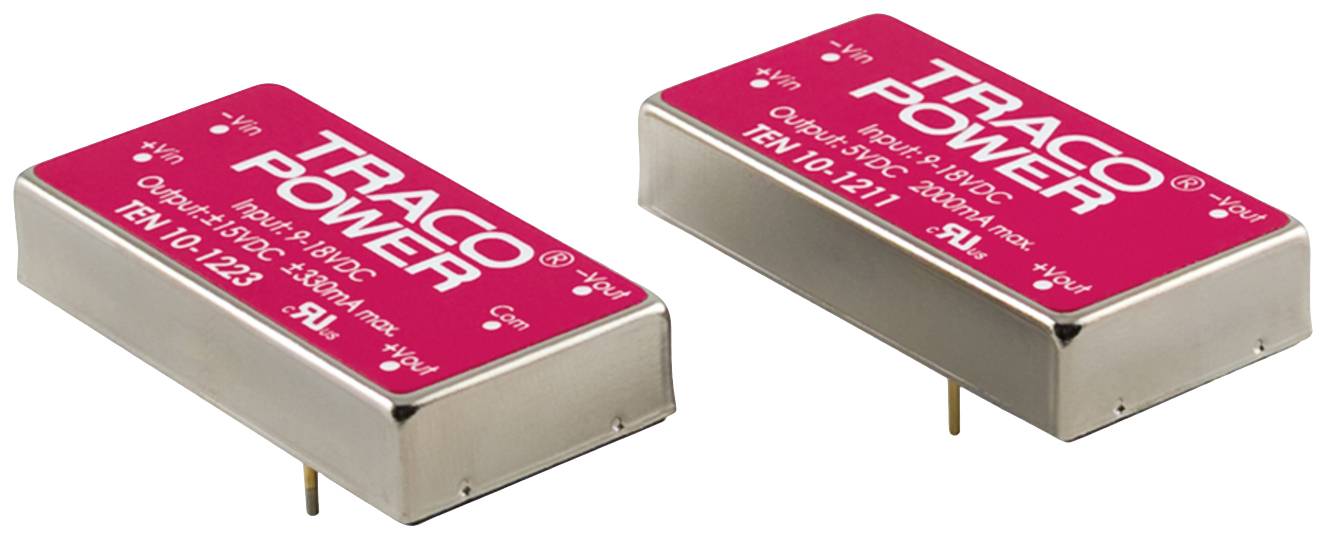

TracoPower TEN 10-2421 DC/DC converter (print) 24 V DC 5 V DC, -5 V DC 1 A 10 W No. of outputs: 2 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
TracoPower TEN 10-2421 DC/DC converter (print) 24 V DC 5 V DC, -5 V DC 1 A 10 W No. of outputs: 2 x Content 1 pc(s)
- Protected against permanent short circuit
- 3 year guarantee
Technical specifications
- Residual ripple: (20 MHz bandwidth) 50 mVpp
- Power control: ±0.3 %
- Load control (%): (Single) ±0.5 %/(Dual) ±1 %
- Type
TEN 10-2421
- Nominal voltage
24 V DC
- Min. input voltage
18 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
2 x
- Output voltages
5 V DC
-5 V DC
- Max. output current
1 A
- Output current (max.) - rounded
1 A
- Efficiency (max.)
81 %
10 W
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
75 °C
- Dim
(L x W x H) 50.8 x 25.4 x 10.2 mm
- Height
10.2 mm
- Length
50.8 mm
- Width
25.4 mm
- Content
1 pc(s)
10 W
- Type
TEN 10 Series
- Operating temperature
-40 - +75 °C
- Mains control
max. ±0.3 %
- Product type
DC/DC converter (print)
Documents & Downloads
Datasheet
Datasheet 3369896 TracoPower TEN 10-2421 DC/DC converter (print) 24 V DC 5 V DC, -5 V DC 1 A 10 W No. of outputs: 2 x Content 1 pc(s)
Datasheet 3369896 TracoPower TEN 10-2421 DC/DC converter (print) 24 V DC 5 V DC, -5 V DC 1 A 10 W No. of outputs: 2 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3369896 TracoPower TEN 10-2421 DC/DC converter (print) 24 V DC 5 V DC, -5 V DC 1 A 10 W No. of outputs: 2 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3369896 TracoPower TEN 10-2421 DC/DC converter (print) 24 V DC 5 V DC, -5 V DC 1 A 10 W No. of outputs: 2 x Content 1 pc(s)
Description
Wide 2:1 input range, protected against permanent short circuit , input filter in accordance with EN 55022, class A.
