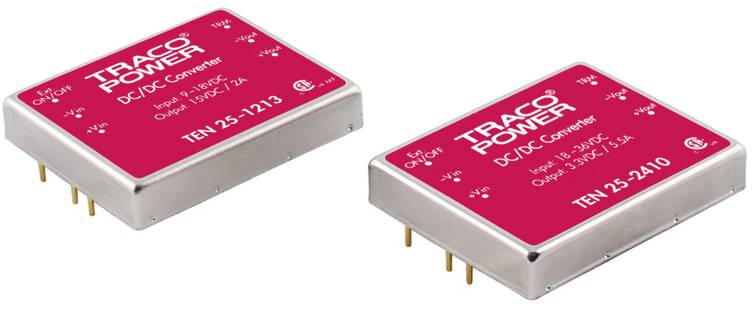

TracoPower TEN 25-4810 DC/DC converter (print) 48 V DC 3.3 V DC 5.5 A 25 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Minimum order quantity: 5
Total (€ 67.22 / piece)
€
Technical specifications
- Product type
DC/DC converter (print)
- Type
TEN 25-4810
- Nominal voltage
48 V DC
- Min. input voltage
36 V DC
- Input voltage (max.)
75 V DC
- No. of outputs
1 x
- Output voltages
3.3 V DC
- Max. output current
5.5 A
- Output current (max.) - rounded
5.5 A
- Efficiency (max.)
82 %
25 W
- Insulation voltage
1500 V DC
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 50.8 x 15.5 x 40.6 mm
- Height
40.6 mm
- Length
50.8 mm
- Width
15.5 mm
- Output voltage (max.)
3.3 V DC
- Output voltage (min.)
3.3 V DC
- Weight
48 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3370392 TracoPower TEN 25-4810 DC/DC converter (print) 48 V DC 3.3 V DC 5.5 A 25 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3370392 TracoPower TEN 25-4810 DC/DC converter (print) 48 V DC 3.3 V DC 5.5 A 25 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3370392 TracoPower TEN 25-4810 DC/DC converter (print) 48 V DC 3.3 V DC 5.5 A 25 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3370392 TracoPower TEN 25-4810 DC/DC converter (print) 48 V DC 3.3 V DC 5.5 A 25 W No. of outputs: 1 x Content 1 pc(s)
Description
2:1 input range, short-circuit proof, external on/off, E/A-insulation 1500 V/DC, input filter according to EN 55022, class A.
