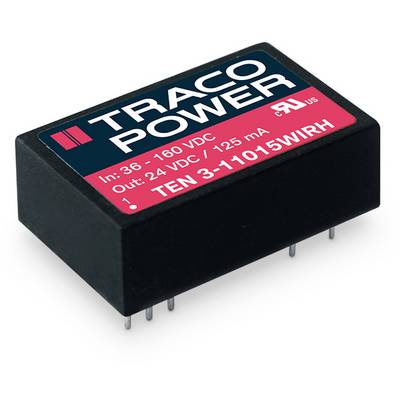

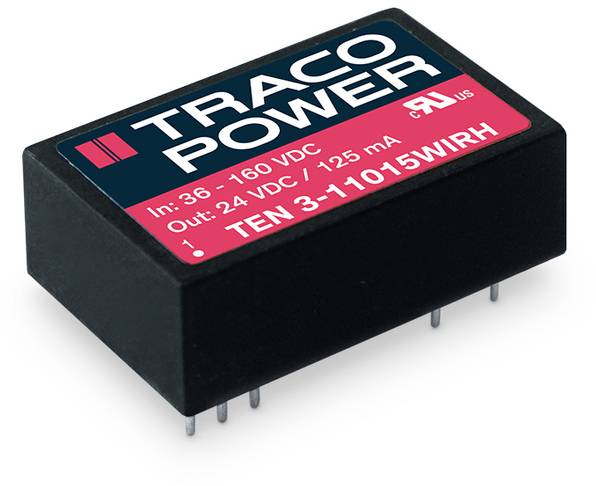

TracoPower TEN 3-11023WIRH DC/DC converter (print) 110 V DC +15 V DC 100 mA 3 W No. of outputs: 2 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 31.92
30
4% = € 1.38
€ 30.54
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 31.92 / piece)
€
Technical specifications
- Product type
DC/DC converter (print)
- Type
TEN 3-11023WIRH
- Nominal voltage
110 V DC
- Min. input voltage
36 V DC
- Input voltage (max.)
160 V DC
- No. of outputs
2 x
- Output voltages
+15 V DC
- Max. output current
100 mA
- Output current (max.) - rounded
100 mA
3 W
- Enclosure
DIP 24
- Connection
Soldering
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+95 °C
- Dim
(L x W x H) 31.80 x 20.30 x 10.60 mm
- Height
10.60 mm
- Length
31.80 mm
- Width
20.30 mm
- RoHS-compliant
Yes
- Weight
14
- Content
1 pc(s)
