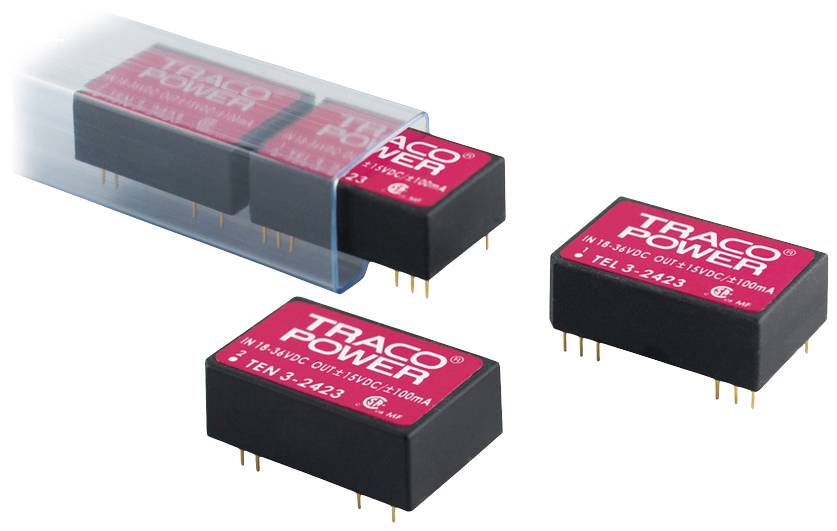

TracoPower TEN 3-1221 DC/DC converter (print) 12 V DC 5 V DC, -5 V DC 250 mA 3 W No. of outputs: 2 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 21.00
30
4% = € 0.92
€ 20.08
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 21.00 / piece)
€
Technical specifications
- Type
TEN 3-1221
- Nominal voltage
12 V DC
- Min. input voltage
9 V DC
- Input voltage (max.)
18 V DC
- No. of outputs
2 x
- Output voltages
5 V DC
-5 V DC
- Max. output current
250 mA
- Output current (max.) - rounded
250 mA
- Efficiency (max.)
77 %
3 W
- Insulation voltage
1500 V DC
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 31.8 x 14.7 x 20.3 mm
- Height
20.3 mm
- Length
31.8 mm
- Width
14.7 mm
- Content
1 pc(s)
- Output voltage (max.)
5 V DC
-5 V DC
- Output voltage (min.)
5 V DC
-5 V DC
- Weight
12 g
- Product type
DC/DC converter (print)
Documents & Downloads
Datasheet
Datasheet 3370442 TracoPower TEN 3-1221 DC/DC converter (print) 12 V DC 5 V DC, -5 V DC 250 mA 3 W No. of outputs: 2 x Content 1 pc(s)
Datasheet 3370442 TracoPower TEN 3-1221 DC/DC converter (print) 12 V DC 5 V DC, -5 V DC 250 mA 3 W No. of outputs: 2 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3370442 TracoPower TEN 3-1221 DC/DC converter (print) 12 V DC 5 V DC, -5 V DC 250 mA 3 W No. of outputs: 2 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3370442 TracoPower TEN 3-1221 DC/DC converter (print) 12 V DC 5 V DC, -5 V DC 250 mA 3 W No. of outputs: 2 x Content 1 pc(s)
Description
2:1 input range, short-circuit proof, E/A-insulation 1500 V/DC, input filter according to EN 55022, class A, industry-standard pinning.
