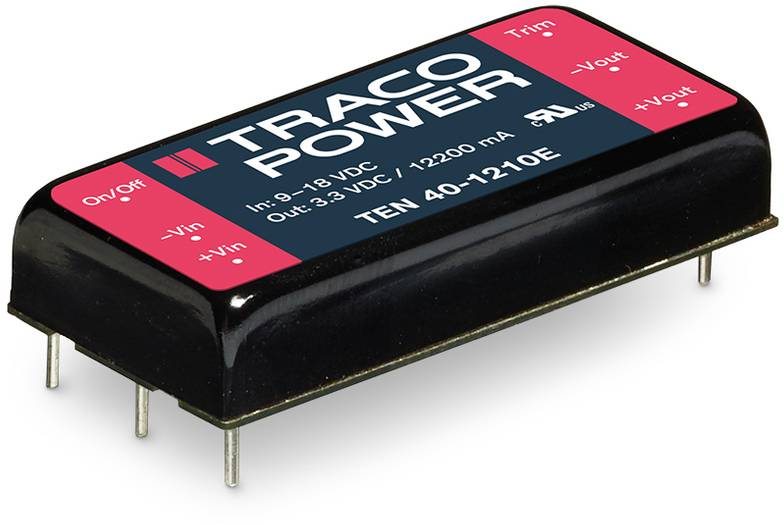

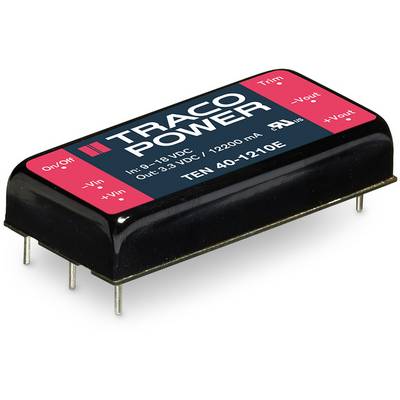

TracoPower TEN 40-1210E DC/DC converter (print) 12.2 A 40 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Minimum order quantity: 10
Total (€ 60.50 / piece)
€
Technical specifications
- Product type
DC/DC converter (print)
- Type
TEN 40-1210E
- Min. input voltage
9 V DC
- Input voltage (max.)
18 V DC
- No. of outputs
1 x
- Max. output current
12.2 A
- Output current (max.) - rounded
12.2 A
- Efficiency (max.)
89 %
40 W
- Insulation voltage
1600 V DC
- Connection
Solder pins
- PSU features
DC-to-DC converter
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 50.8 x 25.4 x 10.2 mm
- Height
10.2 mm
- Length
50.8 mm
- Width
25.4 mm
- RoHS-compliant
Yes
- Output voltage (max.)
3.3 V DC
- Output voltage (min.)
3.3 V DC
- Weight
34 g
- Content
1 pc(s)
