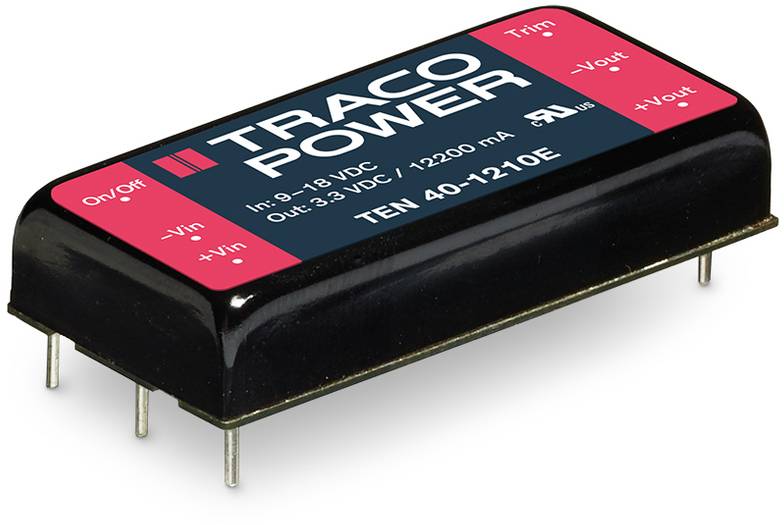

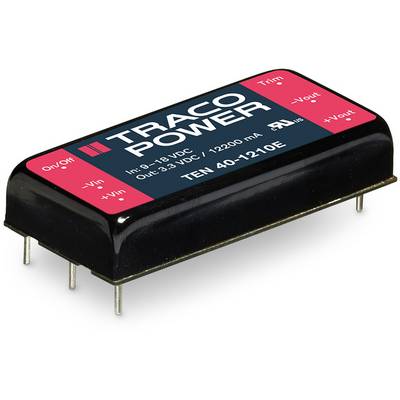

TracoPower TEN 40-2412E DC/DC converter (print) 3.333 A 40 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Minimum order quantity: 10
Total (€ 63.86 / piece)
€
Technical specifications
- Product type
DC/DC converter (print)
- Type
TEN 40-2412E
- Min. input voltage
18 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Max. output current
3.333 A
- Output current (max.) - rounded
3.33 A
- Efficiency (max.)
92 %
40 W
- Insulation voltage
1600 V DC
- Connection
Solder pins
- PSU features
DC-to-DC converter
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 50.8 x 25.4 x 10.2 mm
- Height
10.2 mm
- Length
50.8 mm
- Width
25.4 mm
- RoHS-compliant
Yes
- Output voltage (max.)
12.0 V DC
- Output voltage (min.)
12.0 V DC
- Weight
34 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3372429 TracoPower TEN 40-2412E DC/DC converter (print) 3.333 A 40 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3372429 TracoPower TEN 40-2412E DC/DC converter (print) 3.333 A 40 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3372429 TracoPower TEN 40-2412E DC/DC converter (print) 3.333 A 40 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3372429 TracoPower TEN 40-2412E DC/DC converter (print) 3.333 A 40 W No. of outputs: 1 x Content 1 pc(s)
