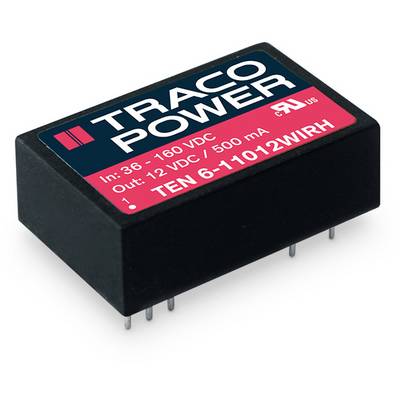

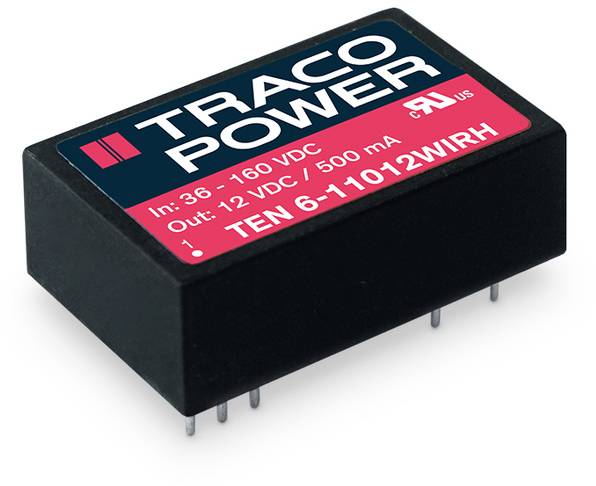

TracoPower TEN 6-11012WIRH DC/DC converter (print) 110 V DC 12 V DC 500 mA 6 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 10
Total (€ 36.97 / piece)
€
Technical specifications
- Type
TEN 6-11012WIRH
- Nominal voltage
110 V DC
- Min. input voltage
36 V DC
- Input voltage (max.)
160 V DC
- No. of outputs
1 x
- Output voltages
12 V DC
- Max. output current
500 mA
- Output current (max.) - rounded
500 mA
6 W
- Enclosure
DIP 24
- Connection
Soldering
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Dim
(L x W x H) 31.80 x 20.30 x 10.60 mm
- Height
10.60 mm
- Length
31.80 mm
- Width
20.30 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- Weight
14
- Product type
DC/DC converter (print)
