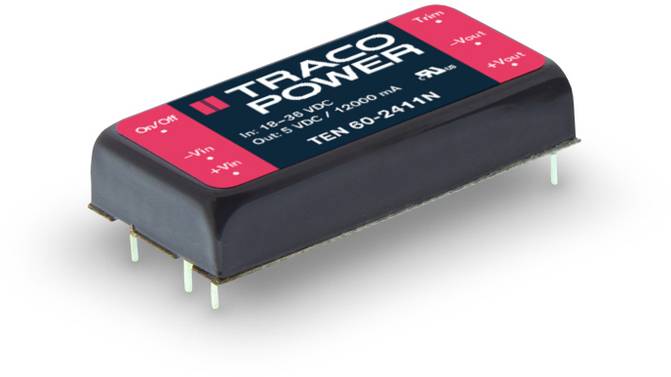

TracoPower TEN 60-2411N DC/DC converter (print) 24 V DC 5 V DC 12 A 60 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 10
Total (€ 113.44 / piece)
€
Technical specifications
- Type
TEN 60-2411N
- Nominal voltage
24 V DC
- Min. input voltage
18 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Output voltages
5 V DC
- Max. output current
12 A
- Output current (max.) - rounded
12 A
- Efficiency (max.)
92 %
60 W
- Insulation voltage
1500 V DC
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 50.8 x 15.8 x 25.4 mm
- Height
25.4 mm
- Length
50.8 mm
- Width
15.8 mm
- Content
1 pc(s)
- Output voltage (max.)
5 V DC
- Output voltage (min.)
5 V DC
- Weight
33 g
- Product type
DC/DC converter (print)
Documents & Downloads
Datasheet
Datasheet 3370641 TracoPower TEN 60-2411N DC/DC converter (print) 24 V DC 5 V DC 12 A 60 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3370641 TracoPower TEN 60-2411N DC/DC converter (print) 24 V DC 5 V DC 12 A 60 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3370641 TracoPower TEN 60-2411N DC/DC converter (print) 24 V DC 5 V DC 12 A 60 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3370641 TracoPower TEN 60-2411N DC/DC converter (print) 24 V DC 5 V DC 12 A 60 W No. of outputs: 1 x Content 1 pc(s)
Description
60 W in the 25.4 mm x 50.8 mm metal housing, 2:1 input range, input filter according to EN 55022, class A, external on/off, low-voltage cut-off.
