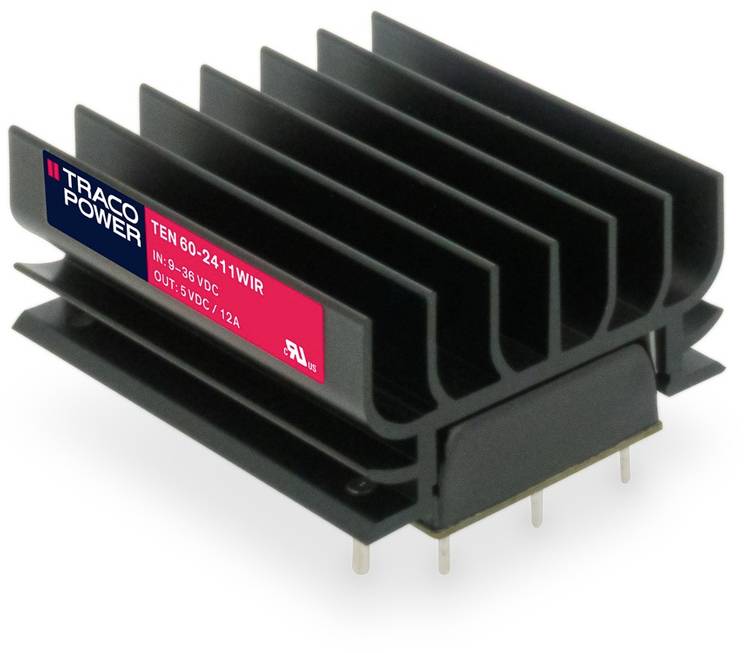

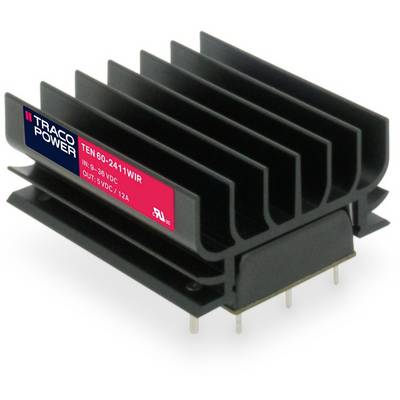

TracoPower TEN 60-4811WIR DC/DC converter (print) 12 A 60 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Minimum order quantity: 10
Total (€ 130.24 / piece)
€
Technical specifications
- Product type
DC/DC converter (print)
- Type
TEN 60-4811WIR
- Min. input voltage
18 V DC
- Input voltage (max.)
75 V DC
- No. of outputs
1 x
- Max. output current
12 A
- Output current (max.) - rounded
12 A
- Efficiency (max.)
92 %
60 W
- Insulation voltage
3000 V DC
- Connection
Solder pins
- PSU features
DC-to-DC converter
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 50.8 x 40.7 x 25.4 mm
- Height
25.4 mm
- Length
50.8 mm
- Width
40.7 mm
- RoHS-compliant
Yes
- Output voltage (max.)
5.0 V DC
- Output voltage (min.)
5.0 V DC
- Weight
66.9 g
- Content
1 pc(s)
