TracoPower TEN 60-4812 DC/DC converter (print) 48 V DC 12 V DC 5 A 60 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Minimum order quantity: 5
Total (€ 92.43 / piece)
€
Technical specifications
- Product type
DC/DC converter (print)
- Type
TEN 60-4812
- Nominal voltage
48 V DC
- Min. input voltage
36 V DC
- Input voltage (max.)
75 V DC
- No. of outputs
1 x
- Output voltages
12 V DC
- Max. output current
5 A
- Output current (max.) - rounded
5 A
- Efficiency (max.)
90 %
60 W
- Insulation voltage
1500 V DC
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 50.8 x 14.8 x 50.8 mm
- Height
50.8 mm
- Length
50.8 mm
- Width
14.8 mm
- Output voltage (max.)
12 V DC
- Output voltage (min.)
12 V DC
- Weight
60 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3370659 TracoPower TEN 60-4812 DC/DC converter (print) 48 V DC 12 V DC 5 A 60 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3370659 TracoPower TEN 60-4812 DC/DC converter (print) 48 V DC 12 V DC 5 A 60 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3370659 TracoPower TEN 60-4812 DC/DC converter (print) 48 V DC 12 V DC 5 A 60 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3370659 TracoPower TEN 60-4812 DC/DC converter (print) 48 V DC 12 V DC 5 A 60 W No. of outputs: 1 x Content 1 pc(s)
Description

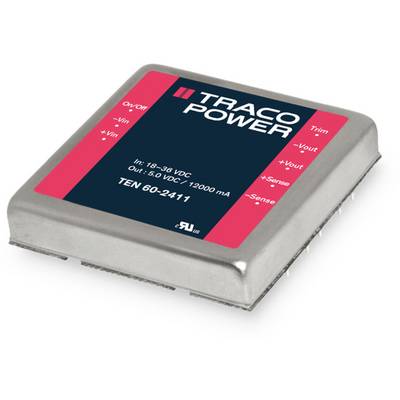

60 W in the 50.8 mm x 50.8 mm metal housing, 2:1 input range, short-circuit proof, external on/off, heat sink (Option - not included).
