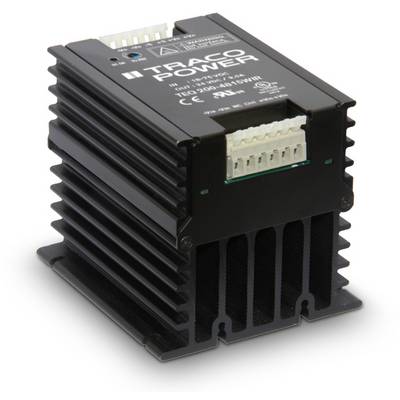

TracoPower TEQ 200-4815WIR DC/DC converter (module) 48 V DC 24 V DC 7.5 A 200 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 444.54 / piece)
€
Technical specifications
- Product type
DC/DC converter (module)
- Type
TEQ 200-4815WIR
- Nominal voltage
48 V DC
- Min. input voltage
19 V DC
- Input voltage (max.)
75 V DC
- No. of outputs
1 x
- Output voltages
24 V DC
- Max. output current
7.5 A
- Output current (max.) - rounded
7.5 A
- Efficiency (max.)
89 %
200 W
- Insulation voltage
1600 V DC
- Connection
Screw terminal
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
70 °C
- Dim
(L x W x H) 103.2 x 87.6 x 88.9 mm
- Height
88.9 mm
- Length
103.2 mm
- Width
87.6 mm
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Weight
800 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2791522 TracoPower TEQ 200-4815WIR DC/DC converter (module) 48 V DC 24 V DC 7.5 A 200 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 2791522 TracoPower TEQ 200-4815WIR DC/DC converter (module) 48 V DC 24 V DC 7.5 A 200 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 2791522 TracoPower TEQ 200-4815WIR DC/DC converter (module) 48 V DC 24 V DC 7.5 A 200 W No. of outputs: 1 x Content 1 pc(s)
Description
4:1 input range, high-power block with excellent thermal convection, increased shock and vibration resistance. Approvals for railways according to EN 50155, input filter according to EN 55022, class A, E/A-insulation 2250 V/DC.
