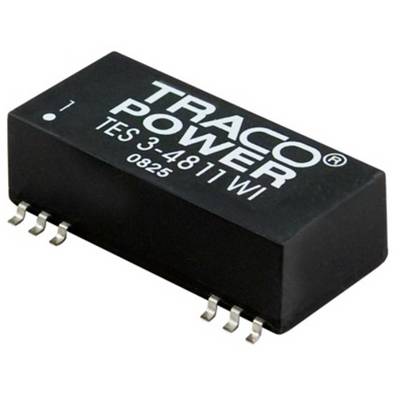

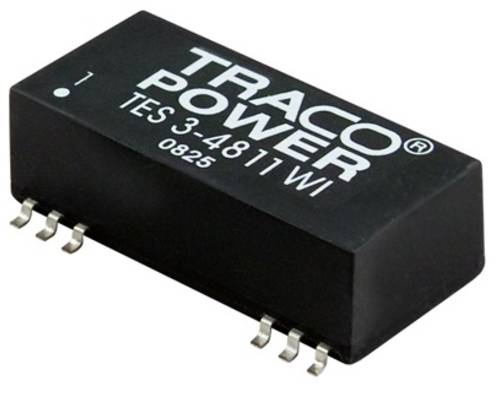

TracoPower TES 3-2421WI DC/DC converter (SMD) 24 V DC 5 V DC, -5 V DC 200 mA 3 W No. of outputs: 2 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 10
Total (€ 36.97 / piece)
€
Technical specifications
- Type
TES 3-2421WI
- Nominal voltage
24 V DC
- Min. input voltage
18 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
2 x
- Output voltages
5 V DC
-5 V DC
- Max. output current
200 mA
- Output current (max.) - rounded
200 mA
- Efficiency (max.)
81 %
3 W
- Insulation voltage
1500 V DC
- Enclosure
SMD
- Connection
SMD
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 32.3 x 18.8 x 10.2 mm
- Height
10.2 mm
- Length
32.3 mm
- Width
18.8 mm
- Content
1 pc(s)
- Output voltage (max.)
5 V DC
-5 V DC
- Output voltage (min.)
5 V DC
-5 V DC
- Weight
8.8 g
- Product type
DC/DC converter (SMD)
Documents & Downloads
Datasheet
Datasheet 3370721 TracoPower TES 3-2421WI DC/DC converter (SMD) 24 V DC 5 V DC, -5 V DC 200 mA 3 W No. of outputs: 2 x Content 1 pc(s)
Datasheet 3370721 TracoPower TES 3-2421WI DC/DC converter (SMD) 24 V DC 5 V DC, -5 V DC 200 mA 3 W No. of outputs: 2 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3370721 TracoPower TES 3-2421WI DC/DC converter (SMD) 24 V DC 5 V DC, -5 V DC 200 mA 3 W No. of outputs: 2 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3370721 TracoPower TES 3-2421WI DC/DC converter (SMD) 24 V DC 5 V DC, -5 V DC 200 mA 3 W No. of outputs: 2 x Content 1 pc(s)
Description
Compact SMD casing, 4:1 input range, input/output insulation 1500 V/DC, input filter according to EN 55022, class A. Suitable for lead-free soldering process after IPC/JEDEC J-STD-020D.
