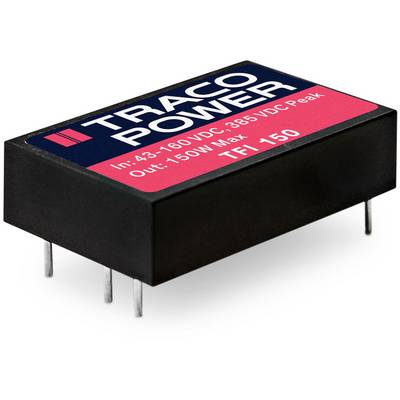

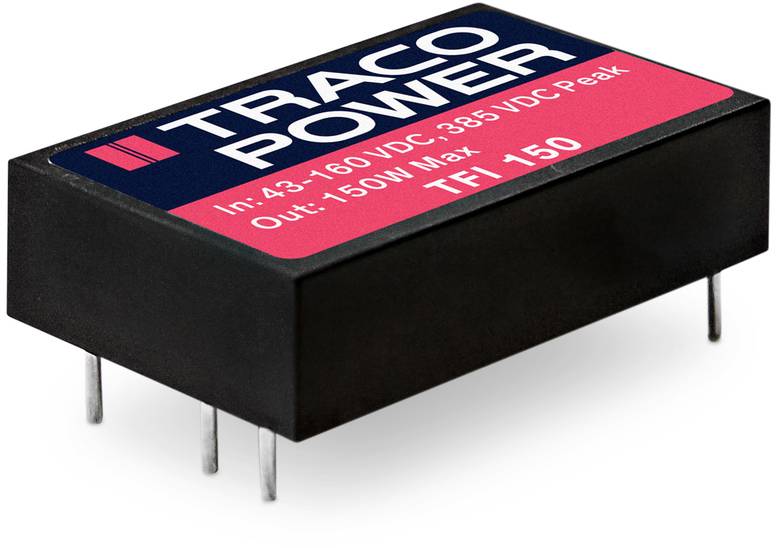

TracoPower TFI 150 DC/DC converter (print) 150 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Sales and shipping:
Number
Minimum order quantity: 10
Total (€ 45.37 / piece)
€
Technical specifications
- Product type
DC/DC converter (print)
- Type
TFI 150
- Min. input voltage
43 V DC
- Input voltage (max.)
160 V DC
- No. of outputs
1 x
- Efficiency (max.)
90 %
150 W
- Insulation voltage
3000 V DC
- Connection
Solder pins
- PSU features
DC-to-DC converter
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
95 °C
- Dim
(L x W x H) 40.6 x 25.4 x 10.4 mm
- Height
10.4 mm
- Length
40.6 mm
- Width
25.4 mm
- RoHS-compliant
Yes
- Output voltage (max.)
110 V DC
- Output voltage (min.)
72 V DC
- Weight
22 g
- Content
1 pc(s)
