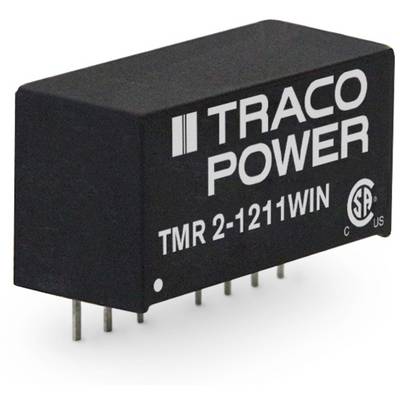

TracoPower TMR 2-1211WIN DC/DC converter (print) 12 V DC 5 V DC 400 mA 2 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 16.80
30
5% = € 0.83
€ 15.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 16.80 / piece)
€
Technical specifications
- Product type
DC/DC converter (print)
- Type
TMR 2-1211WIN
- Nominal voltage
12 V DC
- Min. input voltage
4.5 V DC
- Input voltage (max.)
18 V DC
- No. of outputs
1 x
- Output voltages
5 V DC
- Max. output current
400 mA
- Output current (max.) - rounded
400 mA
- Efficiency (max.)
80 %
2 W
- Insulation voltage
1500 V DC
- Enclosure
SIP 8
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 21.8 x 9.3 x 14.4 mm
- Height
14.4 mm
- Length
21.8 mm
- Width
9.3 mm
- Output voltage (max.)
5 V DC
- Output voltage (min.)
5 V DC
- Weight
4.65 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3371136 TracoPower TMR 2-1211WIN DC/DC converter (print) 12 V DC 5 V DC 400 mA 2 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3371136 TracoPower TMR 2-1211WIN DC/DC converter (print) 12 V DC 5 V DC 400 mA 2 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3371136 TracoPower TMR 2-1211WIN DC/DC converter (print) 12 V DC 5 V DC 400 mA 2 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3371136 TracoPower TMR 2-1211WIN DC/DC converter (print) 12 V DC 5 V DC 400 mA 2 W No. of outputs: 1 x Content 1 pc(s)
Description
4:1 input range, compact housing, SIP8-E/A-insulation 1500 V/DC, excellent control properties, external on/off.
