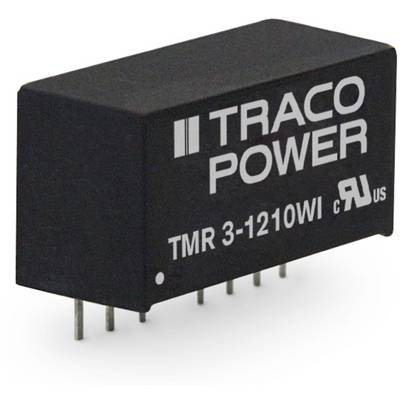

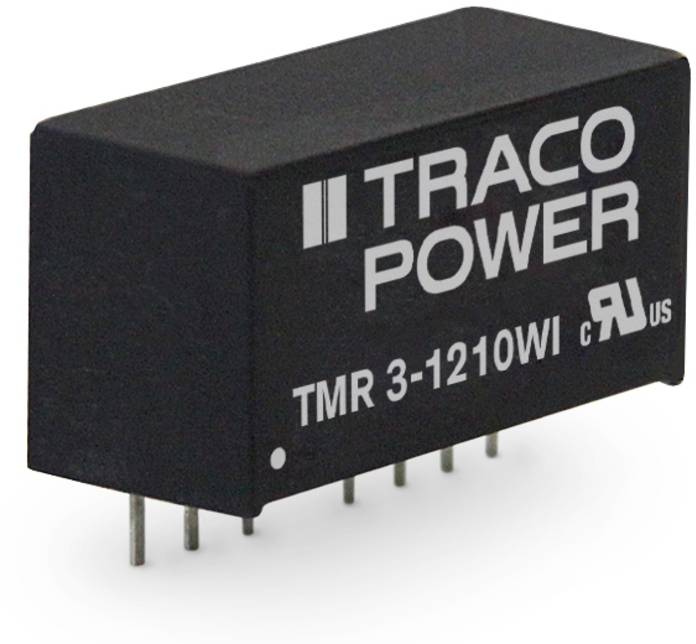

TracoPower TMR 3-1211WI DC/DC converter (print) 12 V DC 5 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 24.36
30
4% = € 1.06
€ 23.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 24.36 / piece)
€
Technical specifications
- Type
TMR 3-1211WI
- Nominal voltage
12 V DC
- Min. input voltage
4.5 V DC
- Input voltage (max.)
18 V DC
- No. of outputs
1 x
- Output voltages
5 V DC
- Max. output current
600 mA
- Output current (max.) - rounded
600 mA
- Efficiency (max.)
80 %
3 W
- Insulation voltage
1500 V DC
- Enclosure
SIP 8
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 21.8 x 15.1 x 9.2 mm
- Height
9.2 mm
- Length
21.8 mm
- Width
15.1 mm
- Content
1 pc(s)
- Output voltage (max.)
5 V DC
- Output voltage (min.)
5 V DC
- Weight
4.8 g
- Product type
DC/DC converter (print)
Documents & Downloads
Datasheet
Datasheet 3371191 TracoPower TMR 3-1211WI DC/DC converter (print) 12 V DC 5 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3371191 TracoPower TMR 3-1211WI DC/DC converter (print) 12 V DC 5 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3371191 TracoPower TMR 3-1211WI DC/DC converter (print) 12 V DC 5 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3371191 TracoPower TMR 3-1211WI DC/DC converter (print) 12 V DC 5 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Description
4:1 input range, compact housing, SIP8-E/A-insulation 1500 V/DC, excellent control properties, external on/off.
