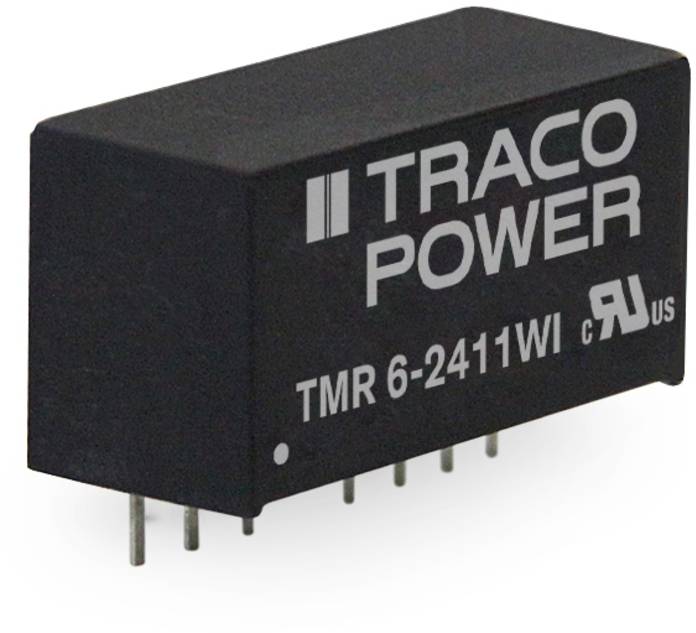

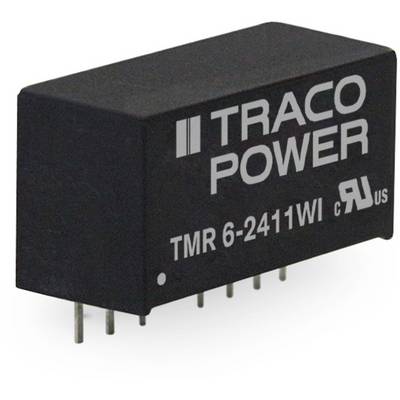

TracoPower TMR 6-2421WI DC/DC converter (print) 24 V DC 5 V DC, -5 V DC 600 mA 6 W No. of outputs: 2 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 27.72
30
4% = € 1.21
€ 26.51
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 27.72 / piece)
€
Technical specifications
- Product type
DC/DC converter (print)
- Type
TMR 6-2421WI
- Nominal voltage
24 V DC
- Min. input voltage
9 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
2 x
- Output voltages
5 V DC
-5 V DC
- Max. output current
600 mA
- Output current (max.) - rounded
600 mA
- Efficiency (max.)
84 %
6 W
- Insulation voltage
1600 V DC
- Enclosure
SIP 8
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
71 °C
- Dim
(L x W x H) 21.8 x 15.3 x 9.1 mm
- Height
9.1 mm
- Length
21.8 mm
- Width
15.3 mm
- Output voltage (max.)
5 V DC
-5 V DC
- Output voltage (min.)
5 V DC
-5 V DC
- Weight
4.8 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3371272 TracoPower TMR 6-2421WI DC/DC converter (print) 24 V DC 5 V DC, -5 V DC 600 mA 6 W No. of outputs: 2 x Content 1 pc(s)
Datasheet 3371272 TracoPower TMR 6-2421WI DC/DC converter (print) 24 V DC 5 V DC, -5 V DC 600 mA 6 W No. of outputs: 2 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3371272 TracoPower TMR 6-2421WI DC/DC converter (print) 24 V DC 5 V DC, -5 V DC 600 mA 6 W No. of outputs: 2 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3371272 TracoPower TMR 6-2421WI DC/DC converter (print) 24 V DC 5 V DC, -5 V DC 600 mA 6 W No. of outputs: 2 x Content 1 pc(s)
Description
4:1 input range, Compact SIP8-casing, input/output insulation 1600 V/DC, short-circuit proof, excellent control properties, external on/off.
