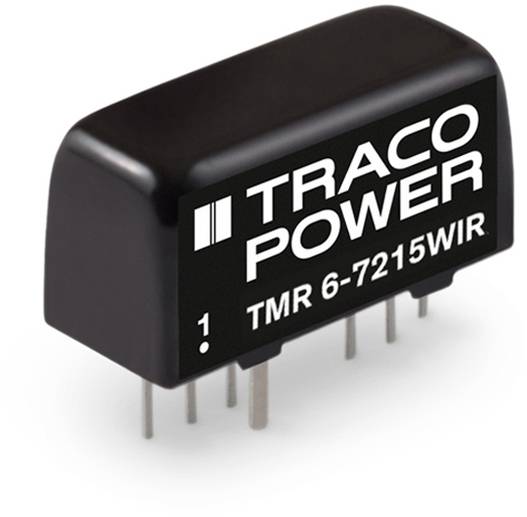

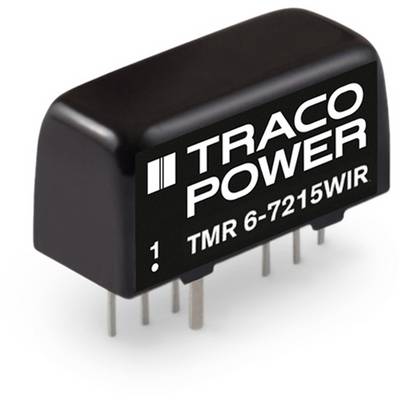

TracoPower TMR 6-7222WIR DC/DC converter (print) 110 V DC 250 mA 6 W No. of outputs: 2 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Minimum order quantity: 10
Total (€ 32.76 / piece)
€
Technical specifications
- Product type
DC/DC converter (print)
- Type
TMR 6-7222WIR
- Nominal voltage
110 V DC
- Min. input voltage
43 V DC
- Input voltage (max.)
160 V DC
- No. of outputs
2 x
- Max. output current
250 mA
- Output current (max.) - rounded
250 mA
- Efficiency (max.)
86 %
6 W
- Insulation voltage
3000 V DC
- Enclosure
SIL 8
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+80 °C
- Dim
(L x W x H) 9.6 x 21.8 x 15.3 mm
- Height
15.3 mm
- Length
9.6 mm
- Width
21.8 mm
- Output voltage (max.)
12 V DC
-12 V DC
- Weight
5.9 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3371876 TracoPower TMR 6-7222WIR DC/DC converter (print) 110 V DC 250 mA 6 W No. of outputs: 2 x Content 1 pc(s)
Datasheet 3371876 TracoPower TMR 6-7222WIR DC/DC converter (print) 110 V DC 250 mA 6 W No. of outputs: 2 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3371876 TracoPower TMR 6-7222WIR DC/DC converter (print) 110 V DC 250 mA 6 W No. of outputs: 2 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3371876 TracoPower TMR 6-7222WIR DC/DC converter (print) 110 V DC 250 mA 6 W No. of outputs: 2 x Content 1 pc(s)
Description
4:1 input range, compact SIL-8 metal housing. Regulated output, increased shock and vibration resistance. E/A-insulation 3000 V/DC, short-circuit proof. Approval according to EN 50155, IEC/EN/UL 60950-1.
