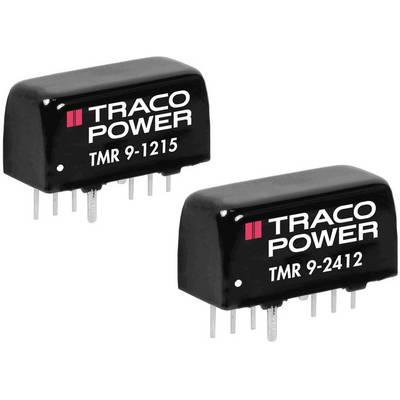

TracoPower TMR 9-4821 DC/DC converter (print) 48 V DC 5 V DC, -5 V DC 800 mA 9 W No. of outputs: 2 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Minimum order quantity: 10
Total (€ 40.33 / piece)
€
Technical specifications
- Product type
DC/DC converter (print)
- Type
TMR 9-4821
- Nominal voltage
48 V DC
- Min. input voltage
36 V DC
- Input voltage (max.)
75 V DC
- No. of outputs
2 x
- Output voltages
5 V DC
-5 V DC
- Max. output current
800 mA
- Output current (max.) - rounded
800 mA
- Efficiency (max.)
86 %
9 W
- Insulation voltage
1600 V DC
- Enclosure
SIP 8
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 21.8 x 15.3 x 9.6 mm
- Height
9.6 mm
- Length
21.8 mm
- Width
15.3 mm
- Output voltage (max.)
5 V DC
-5 V DC
- Output voltage (min.)
5 V DC
-5 V DC
- Weight
5.9 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3371321 TracoPower TMR 9-4821 DC/DC converter (print) 48 V DC 5 V DC, -5 V DC 800 mA 9 W No. of outputs: 2 x Content 1 pc(s)
Datasheet 3371321 TracoPower TMR 9-4821 DC/DC converter (print) 48 V DC 5 V DC, -5 V DC 800 mA 9 W No. of outputs: 2 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3371321 TracoPower TMR 9-4821 DC/DC converter (print) 48 V DC 5 V DC, -5 V DC 800 mA 9 W No. of outputs: 2 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3371321 TracoPower TMR 9-4821 DC/DC converter (print) 48 V DC 5 V DC, -5 V DC 800 mA 9 W No. of outputs: 2 x Content 1 pc(s)
Description
2:1 input range, high power density in the SIP8-casing, input/output insulation 1600 V/DC. Permanent short circuit, excellent control properties, external on/off.
