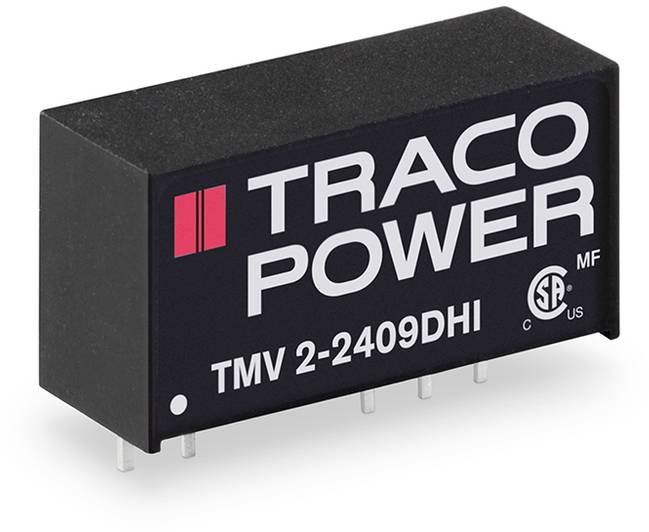

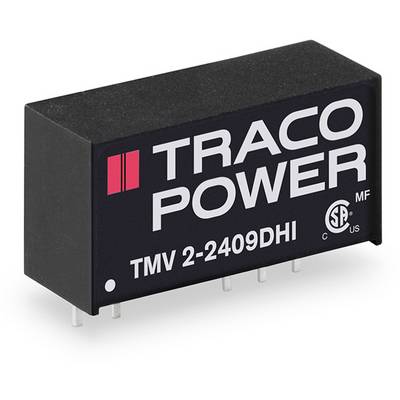

TracoPower TMV 2-0515DHI DC/DC converter (print) 5 V DC 15 V DC, -15 V DC 650 mA 2 W No. of outputs: 2 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 12.60
30
6% = € 0.70
€ 11.90
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 12.60 / piece)
€
Technical specifications
- Type
TMV 2-0515DHI
- Nominal voltage
5 V DC
- Min. input voltage
4.5 V DC
- Input voltage (max.)
5.5 V DC
- No. of outputs
2 x
- Output voltages
15 V DC
-15 V DC
- Max. output current
650 mA
- Output current (max.) - rounded
650 mA
- Efficiency (max.)
79 %
2 W
- Insulation voltage
5200 V DC
- Enclosure
SIL 7
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
80 °C
- Dim
(L x W x H) 19.5 x 13.4 x 7.1 mm
- Height
7.1 mm
- Length
19.5 mm
- Width
13.4 mm
- Content
1 pc(s)
- Output voltage (max.)
15 V DC
-15 V DC
- Output voltage (min.)
15 V DC
-15 V DC
- Weight
2.4 g
- Product type
DC/DC converter (print)
Documents & Downloads
Datasheet
Datasheet 3371386 TracoPower TMV 2-0515DHI DC/DC converter (print) 5 V DC 15 V DC, -15 V DC 650 mA 2 W No. of outputs: 2 x Content 1 pc(s)
Datasheet 3371386 TracoPower TMV 2-0515DHI DC/DC converter (print) 5 V DC 15 V DC, -15 V DC 650 mA 2 W No. of outputs: 2 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3371386 TracoPower TMV 2-0515DHI DC/DC converter (print) 5 V DC 15 V DC, -15 V DC 650 mA 2 W No. of outputs: 2 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3371386 TracoPower TMV 2-0515DHI DC/DC converter (print) 5 V DC 15 V DC, -15 V DC 650 mA 2 W No. of outputs: 2 x Content 1 pc(s)
Description
Compact SIL7-casing, E/A-insulation 5200 V/DC, suitable for IGBT applications, unregulated output.
