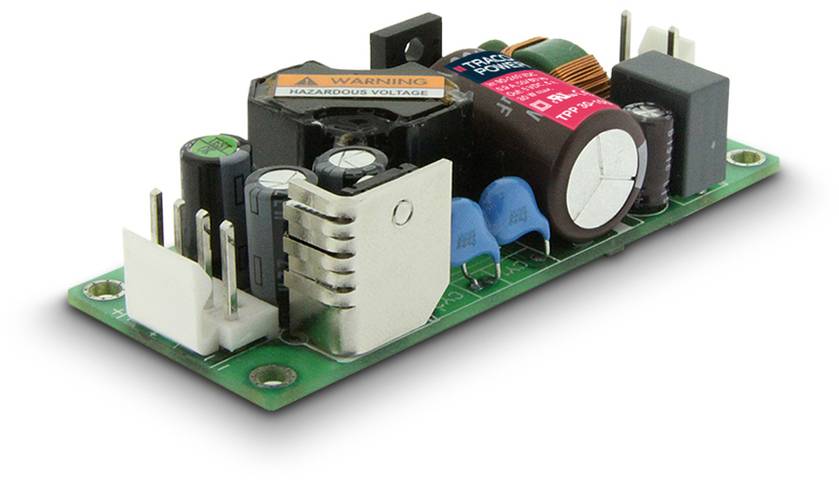

TracoPower TPP 30-112A-J SMPSU 13.2 V DC 2500 mA 30 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Total (€ 39.49 / piece)
€
Highlights & Details
AC/DC switched-mode power supply, TPP 30-series
- 30 watt power supply unit for medical applications in open frameSafety standards according to IEC/EN/ES 60601-1, 3rd edition, 2x MOPPRisk management in accordance with ISO 14971Sustained short-circuit protectionE/A-INSULATION 4000 VACProtection classes I and II
- This text is machine translated.
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
- Max. output current
2500 mA
- Output current (max.) - rounded
2.5 A
- Min. input voltage
85 V AC
- Dim
(L x W x H) 84.8 x 34.6 x 22.4 mm
- Output voltage (max.)
13.2 V DC
- Connection
Connector
30 W
- No. of outputs
1 x
- Type
open
- Weight
60.5 g
- Width
34.6 mm
- Height
22.4 mm
- Length
84.8 mm
- Type
TPP 30-112A-J
- Output current (min.)
0 mA
- Output voltage (min.)
10.8 V DC
- No. of inputs
1 x
- Interference suppression
EN 55011, according to IEC 60601-1-2 4th Edition EN 55032, class B
- Max. temperature
85 °C
- Min. temperature
-40 °C
