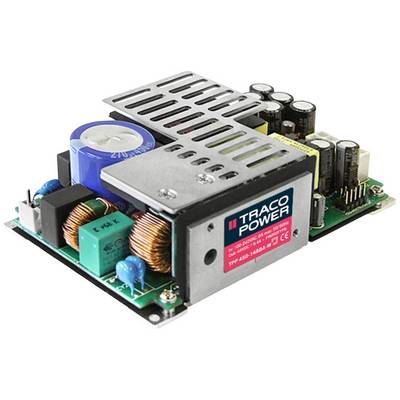

TracoPower TPP 450-115BA-M SMPSU 39.6 V DC 1810 mA 65 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 201.67 / piece)
€
Highlights & Details
AC/DC-Switching power supply, TPI 65A-J series
- Output 39.6 V DC / 1810 mA
- Power 65 W
- JST connector
Technical specifications
- Max. output current
1810 mA
- Output current (max.) - rounded
1.81 A
- Dim
(L x W x H) 76.2 x 50.8 x 26.5 mm
- Height
26.5 mm
- Length
76.2 mm
- Width
50.8 mm
- Connection
JST connector
- Type
open
- Type
TPP 450-115BA-M
- Input voltage (max.)
264 V AC
- Min. input voltage
85 V AC
- Output voltage (max.)
39.6 V DC
- Output voltage (min.)
28.8 V DC
- No. of outputs
1 x
65 W
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- Weight
117 g
- Product type
SMPSU
