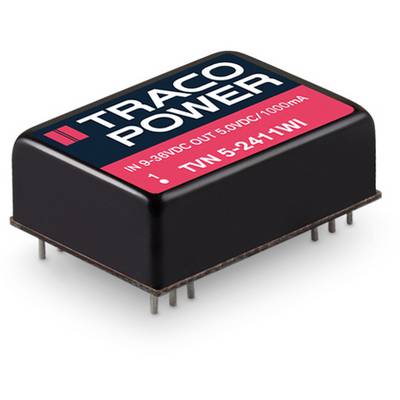

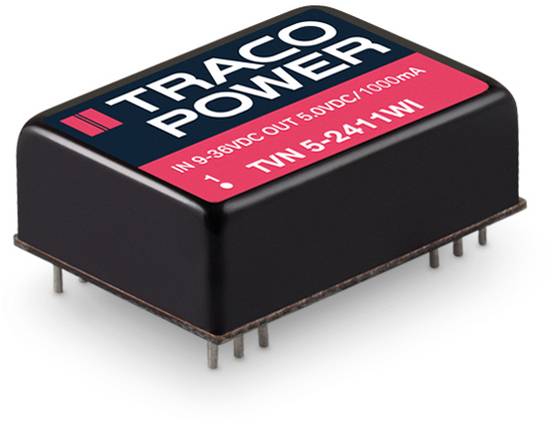

TracoPower TVN 5-0910WI DC/DC converter (print) 1.515 A 5 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Minimum order quantity: 10
Total (€ 68.90 / piece)
€
Technical specifications
- Product type
DC/DC converter (print)
- Type
TVN 5-0910WI
- Min. input voltage
4.5 V DC
- Input voltage (max.)
12 V DC
- No. of outputs
1 x
- Max. output current
1.515 A
- Output current (max.) - rounded
1.52 A
- Efficiency (max.)
79 %
5 W
- Insulation voltage
1600 V DC
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
90 °C
- Dim
(L x W x H) 32 x 20 x 10.20 mm
- Height
10.20 mm
- Length
32 mm
- Width
20 mm
- RoHS-compliant
Yes
- Output voltage (max.)
3.3 V DC
- Output voltage (min.)
3.3 V DC
- Weight
15.30 g
- Content
1 pc(s)
