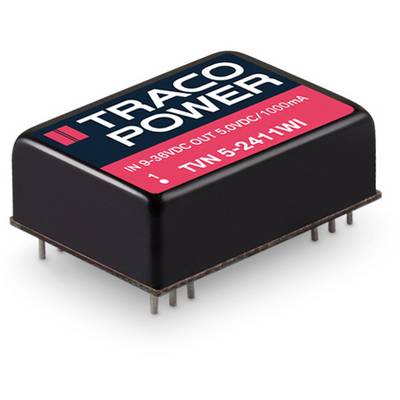

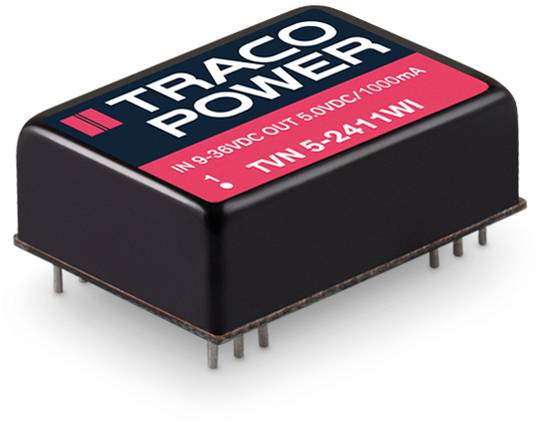

TracoPower TVN 5-4813WI DC/DC converter (print) 48 V DC 15 V DC 333 mA 5 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Minimum order quantity: 10
Total (€ 58.82 / piece)
€
Technical specifications
- Type
TVN 5-4813WI
- Nominal voltage
48 V DC
- Min. input voltage
4.5 V DC
- Input voltage (max.)
5.5 V DC
- No. of outputs
1 x
- Output voltages
15 V DC
- Max. output current
333 mA
- Output current (max.) - rounded
333 mA
- Efficiency (max.)
86 %
5 W
- Insulation voltage
1500 V DC
- Enclosure
DIL 24
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 32 x 14.7 x 20 mm
- Height
20 mm
- Length
32 mm
- Width
14.7 mm
- Content
1 pc(s)
- Output voltage (max.)
15 V DC
- Output voltage (min.)
15 V DC
- Weight
14.8 g
- Product type
DC/DC converter (print)
Documents & Downloads
Datasheet
Datasheet 3371513 TracoPower TVN 5-4813WI DC/DC converter (print) 48 V DC 15 V DC 333 mA 5 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3371513 TracoPower TVN 5-4813WI DC/DC converter (print) 48 V DC 15 V DC 333 mA 5 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3371513 TracoPower TVN 5-4813WI DC/DC converter (print) 48 V DC 15 V DC 333 mA 5 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3371513 TracoPower TVN 5-4813WI DC/DC converter (print) 48 V DC 15 V DC 333 mA 5 W No. of outputs: 1 x Content 1 pc(s)
Description
Very low ripple 10 mVp-p type. Six-sided shielded DIL-24 metal housing, input filter according to EN 55022, Class B, 4:1 input range, input/output insulation 1500 V/DC.
