Transcend MTE662P 256 GB NVMe/PCIe M.2 internal SSD PCIe NVMe 3.0 x4 Industrial TS256GMTE662P
EAN:
Part number:
Item no:
Highlights & Details

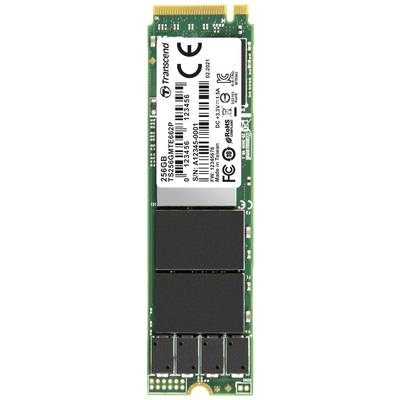

Transcend MTE662P M.2 2280 256GB
- Memory capacity: 256 GB
- Form factor M.2 2280
- Bus connection interface: NVMe PCIe Gen3 x4
- Flash type 3D NAND flash
Technical specifications
- Product type
NVMe/PCIe M.2 internal SSD
- Series
MTE662P
- Form factor
M.2 Module 2280
- Interfaces
PCIe NVMe 3.0 x4
- Memory capacity
256 GB
- IOPS read speed (max.)
340000 IOPS
- IOPS write speed (max.)
355000 IOPS
- Features
3D NAND
- Design height
3.88 mm
- Width
22 mm
- Height
3.88 mm
- Depth
80 mm
- Type
Industrial
- Operating temperature range
-20 up to 75 °C
- Operating temperature (max.)
75 °C
- Operating temperature (min.)
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2995068 Transcend MTE662P 256 GB NVMe/PCIe M.2 internal SSD PCIe NVMe 3.0 x4 Industrial TS256GMTE662P
Warranty Terms
Warranty Terms 2995068 Transcend MTE662P 256 GB NVMe/PCIe M.2 internal SSD PCIe NVMe 3.0 x4 Industrial TS256GMTE662P
Description
The Transcend MTE662P M.2 SSD features the PCI Express (PCIe) Gen 3 x4 interface and is compatible with the NVM Express (NVMe) 1.3 specifications to achieve unprecedented transfer speeds. The MTE662P features state-of-the-art 3D NAND technology in which 96 layers of 3D NAND flash chips are stacked vertically. As compared to 3D NAND with 64 layers the storage efficiency is increased considerably and the in-built DRAM-cache enables a faster access. The MTE662P is equipped with a 30µ" gold finger printed circuit board and Corner Bond technology and is fully tested at the factory. It has a lifespan of 3,000 write/erase cycles and an extended operating temperature range of -20°C to 75°C. The built-in Power loss protection (PLP) also ensures data integrity in important applications.
