Transfer module RS F60 LPK 2H/62 Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Transfer module
- RS F60 LPK 2 H/62
Technical specifications
- Nominal current per connection: 1 A
- Rated insulation voltage: 100 V
- Overvoltage category: II
- Pollution degree: 2
- Pulse voltage testing (1.2/50µs): 0.8 kV
- conductor cross-section min. AWG: AWG 26
- conductor cross-section max. AWG: AWG 12
- Torque, min.: 0.5 Nm
- Torque, max.: 0.6 Nm
- Earth conductor connection: Flat contact
- Rated voltage: 60 V AC / 75 V DC
- Content
1 pc(s)
- Dim
(L x W x H) 180 x 45 x 65.5 mm
- Total no. of pins
60
- Height
65.5 mm
- Length
180 mm
- Width
45 mm
- Connector (control)
Connector
- Connector (field)
Screws
- Series
RSF
- Features
+ PG
- Type

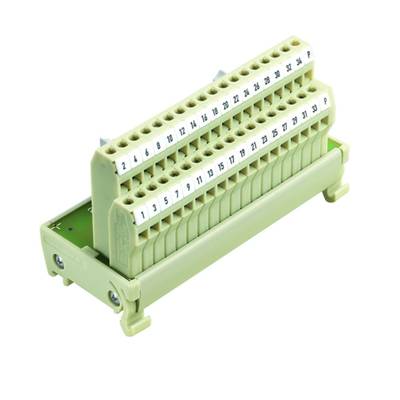

Interface, RSF, connector to IEC60603-13/DIN41651, 60-pin, screw connection
- Cross section (flexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Number of pins
60
- Stripping length (max.)
6 mm
- Type
RS F60 LPK 2 H/62
- RoHS-compliant
Yes
- Max. temperature
+55 °C
- Min. temperature
0 °C
- Weight
286 g
- Product type
Transfer module
Documents & Downloads
Datasheet
Datasheet 257960 Transfer module RS F60 LPK 2H/62 Weidmüller Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 257960 Transfer module RS F60 LPK 2H/62 Weidmüller Content: 1 pc(s)
Description
Transfer module. Interface connector according to IEC 603-1/DIN 41651, RSF,, 60-pin, screw connection. Passive interfaces for signal transmission with a receptacle equipped flat cable connector according to IEC 603-1/DIN 41651. The most important features are: group with 10- to 64-pin connectors. Electrical connection on a one-to-one between control and panel connections. Extremely compact modules in RS-profile 45 for mounting on standard mounting rail TS 35. Long locking hooks. Pen for the earth connection.
