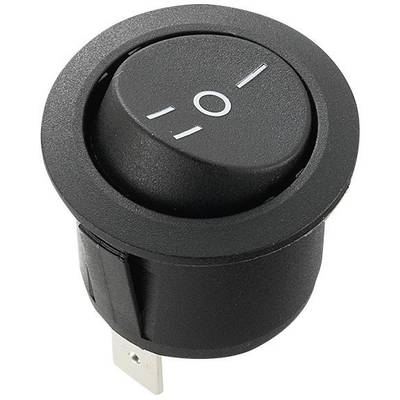

TRU COMPONENTS 1588078 Flip switch TC-R13-223D-01 250 V AC 10 A 1 x On/Off/On latch 1 pc(s)
EAN:
Part number:
Item no:
Product type
Flip switch
Casing/button colour
Black
Functions
latch
Lighting type
None
Switch position
1 x On/Off/On
Datasheet (PDF)
1227 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.53
10
8% = € 0.19
€ 2.34
25
10% = € 0.26
€ 2.27
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.53 / piece)
€
Highlights & Details
Toggle switch 250 Vac 10 A 1 x On/Off/On SCI R13-223D-01 latch 1 pc(s)
Technical specifications
- Product type
Flip switch
- Casing/button colour
Black
- Functions
latch
- Lighting type
None
- Switch position
1 x On/Off/On
- Print motif
I/0/II
- Material
Polyamide
- Connection
Type C CEE 7/16 plug 6.3 mm
- Contact resistance
50 mΩ
- Switching voltage
250 V AC
- Switching current (max.)
10 A
- Dielectric strength
1500 V/AC 1 minute
- Min. temperature
-25 °C
- Max. temperature
+85 °C
- Recess diameter
25.2 mm
- Front panel thickness
4 mm
- Content
1 pc(s)
- Insulation resistance
100 MΩ/500 V DC
- RoHS-compliant
Yes
- Type
TC-R13-223D-01
Documents & Downloads
Datasheet
Datasheet 1588078 TRU COMPONENTS 1588078 Flip switch TC-R13-223D-01 250 V AC 10 A 1 x On/Off/On latch 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1588078 TRU COMPONENTS 1588078 Flip switch TC-R13-223D-01 250 V AC 10 A 1 x On/Off/On latch 1 pc(s)
Description
Rocker switch 1-pole for 'snap-in mounting', with guide lug for front panel mounting Approvals: UL.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
