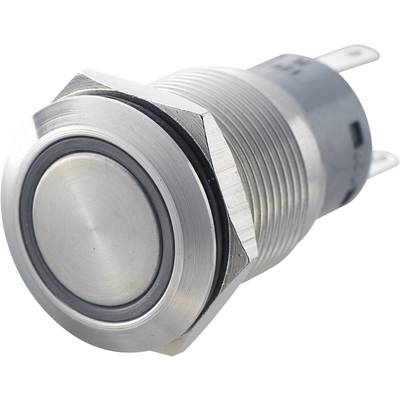

TRU COMPONENTS 701319 LAS1-AGQ-11ZE, BL Tamper-proof pushbutton 250 V AC 5 A 1 x On/On latch Blue IP67 1 pc(s)
EAN:
Part number:
Item no:
Product type
Tamper-proof pushbutton
Lighting type
Circular lighting
Switch position
1 x On/On
Contact type
1 maker
1 breaker
Connection
Soldering
Datasheet (PDF)
770 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.86
3
6% = € 0.66
€ 11.20
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.86 / piece)
€ 21.00
-44 %
€
Highlights & Details
TRU COMPONENTS 701319 LAS1-AGQ-11ZE, BL Tamper-proof pushbutton 250 V AC 5 A 1 x On/On latch Blue IP67 1 pc(s)
- IP67 protection
Technical specifications
- Voltage bulb 12 V
- Product type
Tamper-proof pushbutton
- Switch/button features
Planar
- Casing/button colour
Stainless steel
- Functions
latch
- Lighting type
Circular lighting
- Colour
Blue
- Bulb type
LED (monochrome)
- Switch position
1 x On/On
- Contact type
1 maker
1 breaker
- Material
Stainless steel
- Contact material
Silver alloy
- Connection
Soldering
- Contact resistance
≤ 50 mΩ
- Switching voltage
250 V AC
- Switching current (max.)
5 A
- Dielectric strength
2000 V AC
- Min. temperature
-20 °C
- Max. temperature
+70 °C
- Durability
1000000 cycles

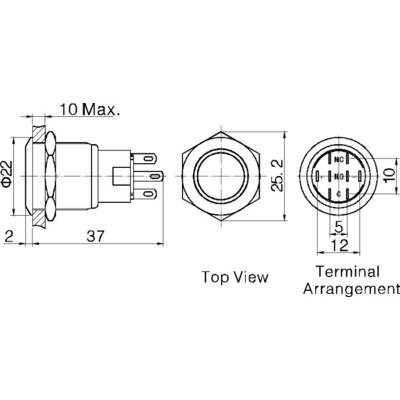

- Recess diameter
19 mm
- Electrical lifespan
50000 cycles
IP67
- Actuating force
5.5 N
- Content
1 pc(s)
- Insulation resistance
≥ 1000 MΩ
- Dim
- RoHS-compliant
- Board thickness (max.)
10 mm
- Type
LAS1-AGQ-11ZE, BL
- Material (details)
Stainless steel
- Switching current
5 A
- Type
LAS1-AGQ-11ZE, blue
- Actuating force
5.5 N
- Connection
Soldered connections
- Temperature range
-20 - +70 °C
Documents & Downloads
Datasheet
Datasheet 701319 TRU COMPONENTS 701319 LAS1-AGQ-11ZE, BL Tamper-proof pushbutton 250 V AC 5 A 1 x On/On latch Blue IP67 1 pc(s)
User & Safety Instructions
User & Safety Instructions 701319 TRU COMPONENTS 701319 LAS1-AGQ-11ZE, BL Tamper-proof pushbutton 250 V AC 5 A 1 x On/On latch Blue IP67 1 pc(s)
Conformity certificate
Conformity certificate 701319 TRU COMPONENTS 701319 LAS1-AGQ-11ZE, BL Tamper-proof pushbutton 250 V AC 5 A 1 x On/On latch Blue IP67 1 pc(s)
Description
Hints
The LED can be controlled separately.
For this purpose, the operating voltage is 12 volts.
