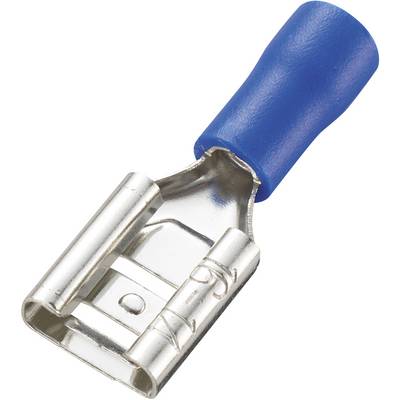

TRU COMPONENTS 737509 Blade receptacle Connector width: 8.0 mm Connector thickness: 0.8 mm 180 ° Partially insulated Blu
EAN:
Part number:
Item no:
Product type
Blade receptacle
Connector width
8.0 mm
Insulation type
Partially insulated
Content
100 pc(s)
max. cross section
2.50 mm²
110 Set(s)
Do your needs go beyond this?
Sales and shipping:
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 7.13
5
6% = € 0.43
€ 6.70
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 100 pc(s))
Total (€ 7.13 / piece)
€
Highlights & Details
Blade receptacle
- Blue
Our service for you
Technical specifications
- Product type
Blade receptacle
- Connector width
8.0 mm
- Factory colour
Blue
- Connector thickness
0.8 mm
- Support sleeve
No
- Insulation type
Partially insulated
- Connection angle
180°
- Contact material
Brass
- Content
100 pc(s)
- max. cross section
2.50 mm²
- Min. cross section
1.50 mm²
- AWG max.
16
- AWG (min.)
14
- Manufacturer part #
737509
- Insulation material
PVC
- Cross-section range
1.50 - 2.50 mm²
- Size
8.0 x 0.8 mm
- Temperature range
Up to +70 °C
- Type
FDD2-212
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1570199 TRU COMPONENTS 737509 Blade receptacle Connector width: 8.0 mm Connector thickness: 0.8 mm 180 ° Partially insulated Blu
Description
These plug-in sleeves offer reliable connections.
