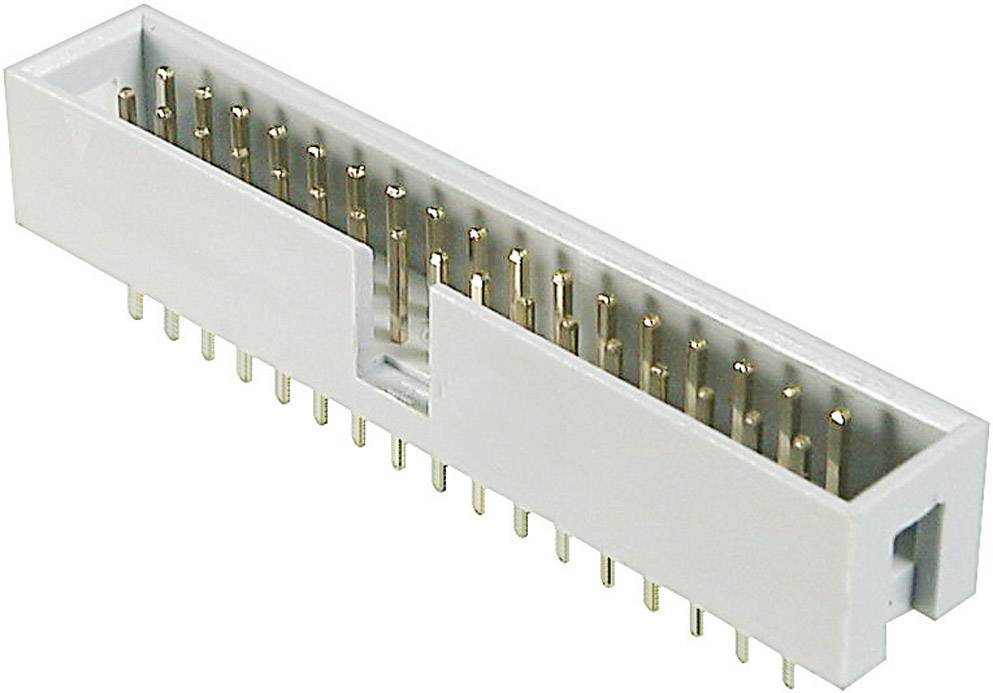

Image similar
TRU COMPONENTS TC-02747-14-1-00-2 Pin strip Contact spacing: 2.54 mm Total number of pins: 14 No. of rows: 2 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.35
30
9% = € 0.03
€ 0.32
50
11% = € 0.04
€ 0.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.35 / piece)
€
Highlights & Details
Pin strip
- Total number of pins 14
- No. of rows 2
- Content 1 pc(s)
Technical specifications
- Connector type
Pin strip, straight
- CS
2.54 mm
- No. of rows
2
- Pins per row
7
- Total number of pins
14
- Nominal voltage
250 V AC
- Nominal current
3 A
- Contact material
Copper alloy
- Content
1 pc(s)
- Connection
Print
- Type
TC-02747-14-1-00-2
- Dim
(L x W x H) 8.85 x 25.4 x 12.33 mm
- Factory colour
Black
- Height
12.33 mm
- Length
8.85 mm
- Width
25.4 mm
- Contact surface
Gold plated
- Manufacturer part #
TC-02747-14-1-00-2
- Insulation material
Thermoplastic material
- Case material
Thermoplastic material
- RoHS-compliant
Yes
- Max. temperature
+105 °C
- Min. temperature
-55 °C
- Product type
Pin strip
