Buy TRU COMPONENTS TC-10101420 EMI filter 250 V AC 1 A 3.7 mH (L x W x H) 68 x 50 x 25.5 mm 1 pc(s)

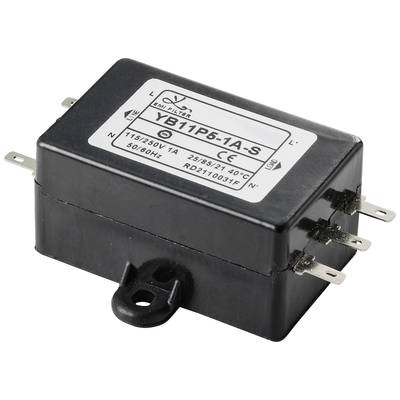

'Black EMC filter type YB11P5-1A-S, with side connections; suitable for electrical devices with 115/250V, 50/60Hz, 1A.'

Black rectangular electronic component with a silver label displaying model and serial numbers.

'EMI Filter' with product number 'YB11P5-1A-S'. Technical specifications: 115/250V 1A, 25/85/21 40°C, 50/60Hz. Black housing with six terminals.

1/3

Datasheet (PDF)

143 Piece(s)

Do your needs go beyond this?

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 6.71 / piece)

€

Report legal concerns

Highlights & Details

Interference suppressor filter

Technical specifications

Connection: Type C CEE 7/16 plug 2.8 mm

Mounting type: Structure

Inductance (L): 3.7 mH

Capacity (elec.): 3300 pF

Nominal voltage: 250 V AC

Nominal current: 1 A

Nominal current - rounded value: 1 A

Length: 68 mm

Width: 50 mm

Height: 25.5 mm

Min. temperature: -25 °C

Max. temperature: +85 °C

Manufacturer part #: TC-10101420

Type: TC-10101420

Content: 1 pc(s)

Dim: (L x W x H) 68 x 50 x 25.5 mm

Nominal voltage (details): 115/250 V/AC (50/60Hz)

Product type: EMI filter

Documents & Downloads

Datasheet

Datasheet 2525355 TRU COMPONENTS TC-10101420 EMI filter 250 V AC 1 A 3.7 mH (L x W x H) 68 x 50 x 25.5 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2525355 TRU COMPONENTS TC-10101420 EMI filter 250 V AC 1 A 3.7 mH (L x W x H) 68 x 50 x 25.5 mm 1 pc(s)
