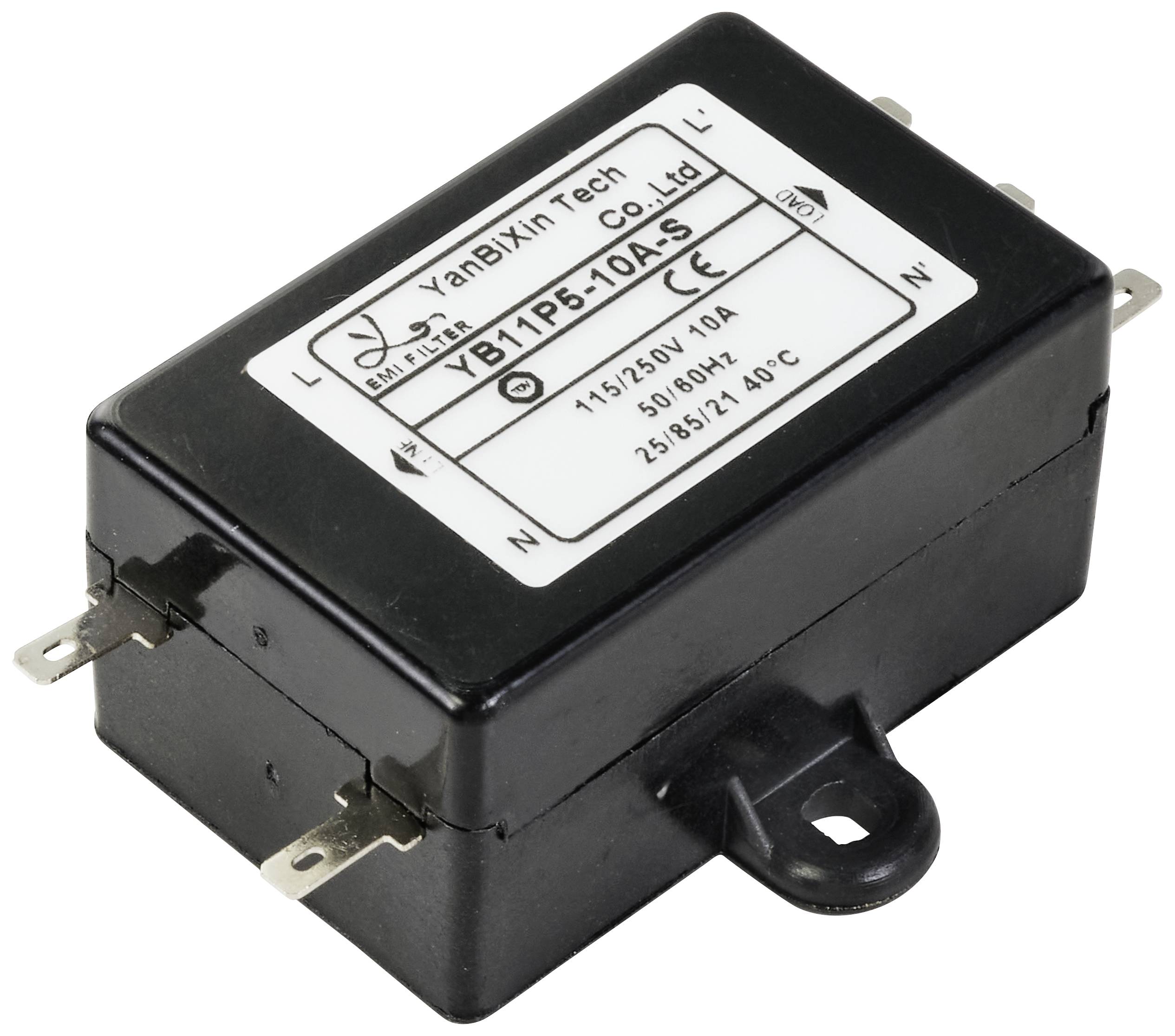

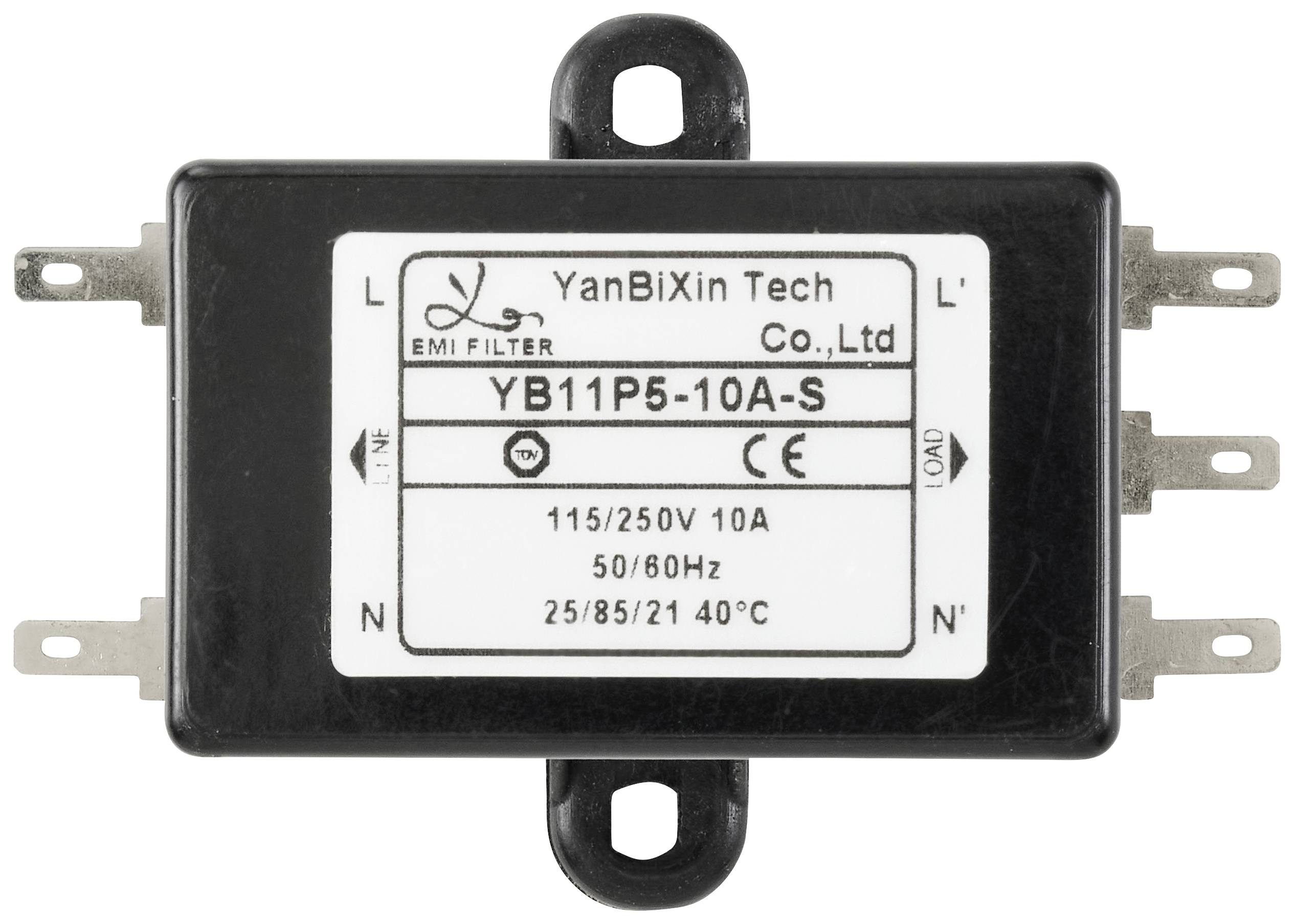

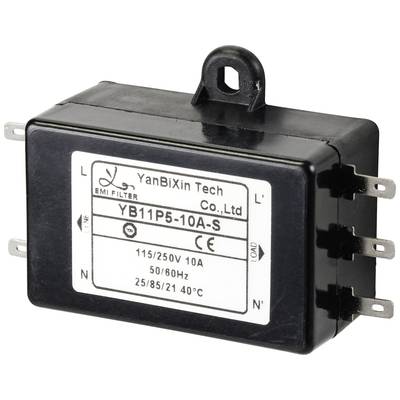

TRU COMPONENTS TC-10471952 Line filter 250 V AC 10 A 0.3 mH (L x W x H) 68 x 50 x 25 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.13
5
6% = € 0.43
€ 6.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.13 / piece)
€
Highlights & Details
Universal line filter
Technical specifications
- Connection
Type C CEE 7/16 plug 2.8 mm
- Mounting type
Structure
- Inductance (L)
0.3 mH
- Capacity (elec.)
3300 pF
- Nominal voltage
250 V AC
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Length
68 mm
- Width
50 mm
- Height
25 mm
- Min. temperature
-25 °C
- Max. temperature
+85 °C
- Manufacturer part #
TC-10471952
- Type
TC-10471952
- Content
1 pc(s)
- Dim
(L x W x H) 68 x 50 x 25 mm
- Nominal voltage (details)
115/250 V/AC (50/60Hz)
- RoHS-compliant
Yes
- Product type
Line filter
Documents & Downloads
Datasheet
Datasheet 2617988 TRU COMPONENTS TC-10471952 Line filter 250 V AC 10 A 0.3 mH (L x W x H) 68 x 50 x 25 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2617988 TRU COMPONENTS TC-10471952 Line filter 250 V AC 10 A 0.3 mH (L x W x H) 68 x 50 x 25 mm 1 pc(s)
Description
These filters are normally used to protect devices against interference from the mains supply; they should be mounted as close as possible to the mains voltage input. They also greatly attenuate noise voltages that may be generated inside the device itself, and prevent them from entering the power supply.
