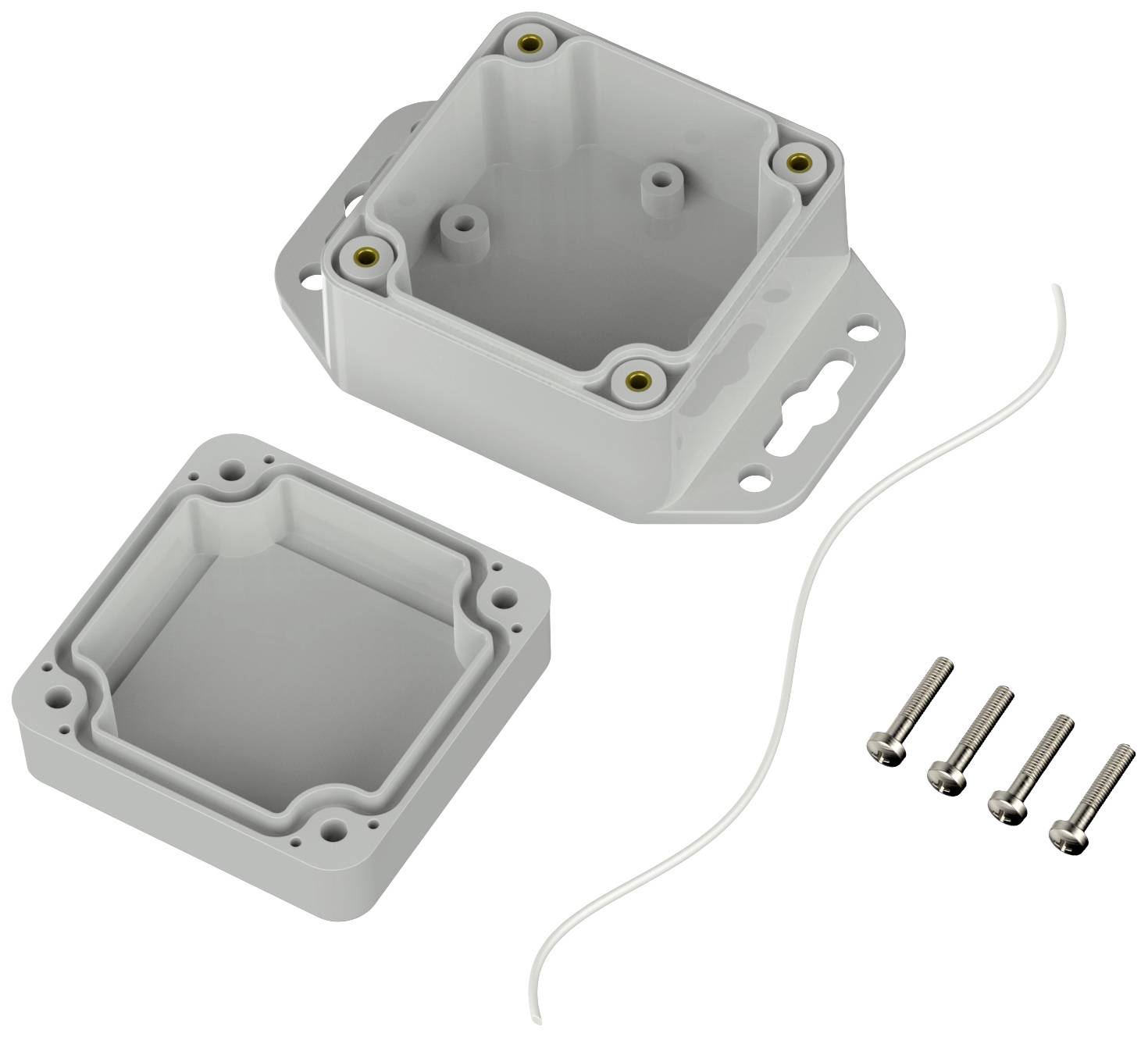

TRU COMPONENTS TC-10860388 Flanged box 60 x 60 x 40.10 Acrylonitrile butadiene styrene Light grey 1 pc(s)
EAN:
Part number:
Item no:
Material
Acrylonitrile butadiene styrene
IP rating
IP65
IK07
Width
60 mm
Height
40.10 mm
Content
1 pc(s)
Datasheet (PDF)
15 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.29
5
6% = € 0.38
€ 5.91
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.29 / piece)
€
Technical specifications
- Features
Mounting flange
- Material
Acrylonitrile butadiene styrene
IP65
IK07
- Factory colour
Light grey
- Length
60 mm
- Width
60 mm
- Height
40.10 mm
- Inside width
52.9 mm
- Inside height
33 mm
- Internal depth
33.6 mm
- Content
1 pc(s)
- Dim
(L x W x H) 60 x 60 x 40.10 mm
- RoHS-compliant
Yes
- Type
TC-10860388
- Product type
Flanged box
Documents & Downloads
Datasheet
Datasheet 2715097 TRU COMPONENTS TC-10860388 Flanged box 60 x 60 x 40.10 Acrylonitrile butadiene styrene Light grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2715097 TRU COMPONENTS TC-10860388 Flanged box 60 x 60 x 40.10 Acrylonitrile butadiene styrene Light grey 1 pc(s)
Download
Download 2715097 TRU COMPONENTS TC-10860388 Flanged box 60 x 60 x 40.10 Acrylonitrile butadiene styrene Light grey 1 pc(s)
Download 2715097 TRU COMPONENTS TC-10860388 Flanged box 60 x 60 x 40.10 Acrylonitrile butadiene styrene Light grey 1 pc(s)
Description
New industrial housing in various sizes and variants.2 materials ABS or polycarbonate.Numerous designs with or without wall bracket, transparent lid and film/display recess.
This text is machine translated.
This text is machine translated.
Features
- Recessed surface in the upper part for the flush mounting of display discs and membrane keypadsThe housing is equipped with directly shaped wall bracketsThe cover screws secured against falling out are screwed into high-quality threaded sockets.Circuit boards can be securely fastened in the base using screw domes.Hue light gray similar RAL 7035IK07 impact strength according to IEC 62262Protection class IP65 DIN 60529
Scope of delivery
- Upper and lower section, cover screws
Hints
For version with insertion seal:Protection class IP40 To achieve degree of protection IP65,The seal enclosed must be installed correctly.The seal must not be stretched or compressed in the corners.Cut and stick at an angle so that the interfaces are pressed against each other by spring pressure.
