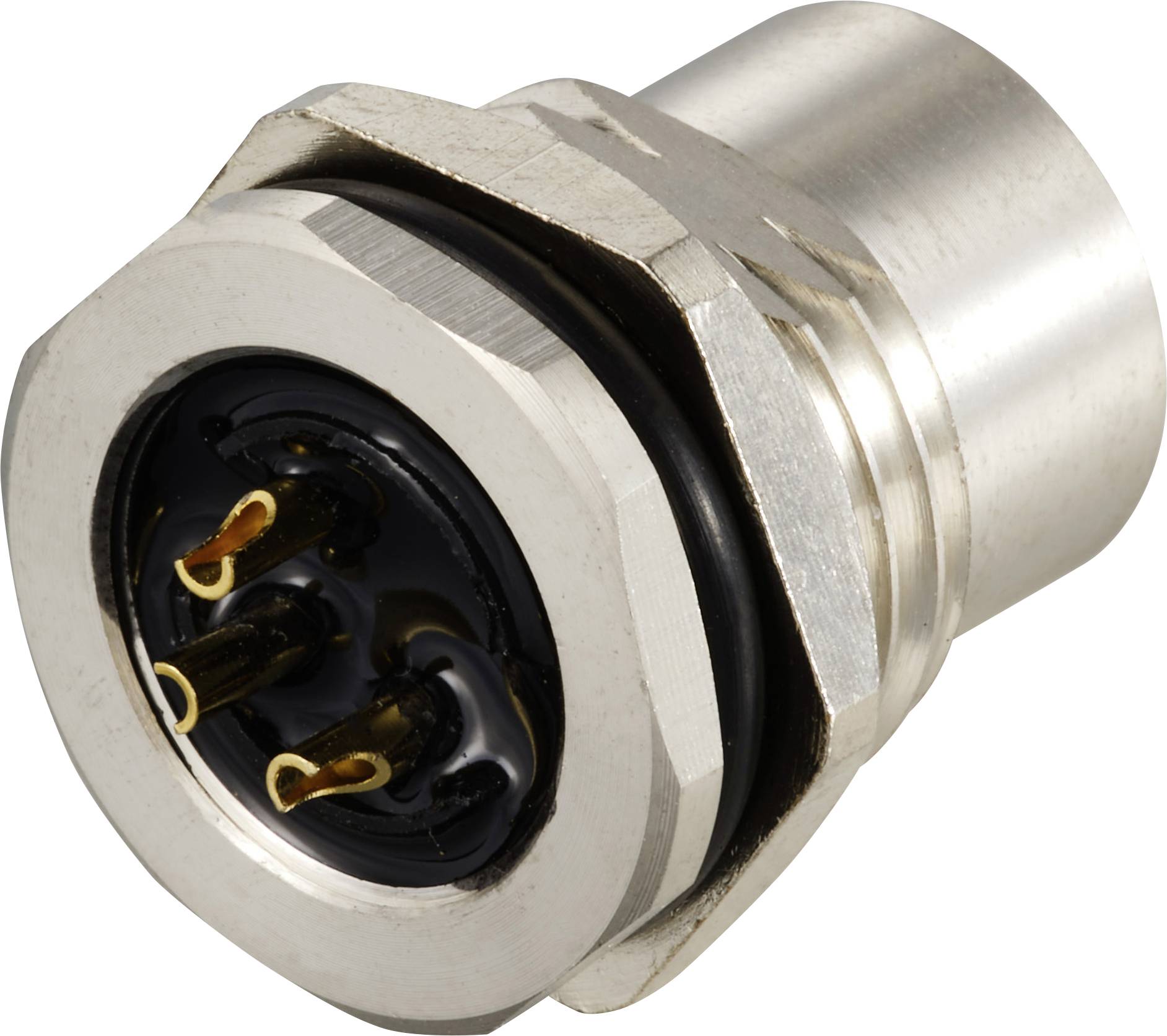

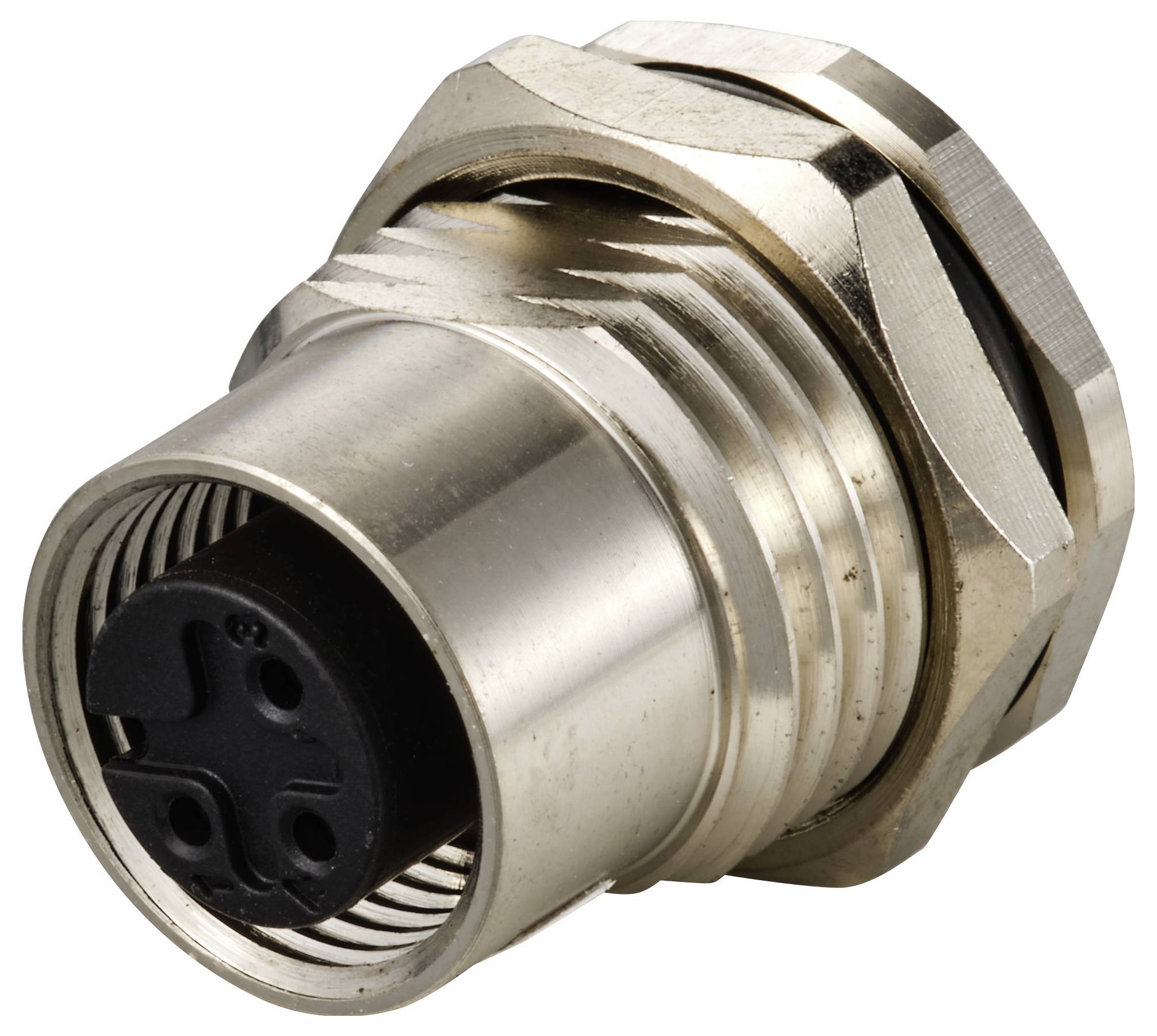

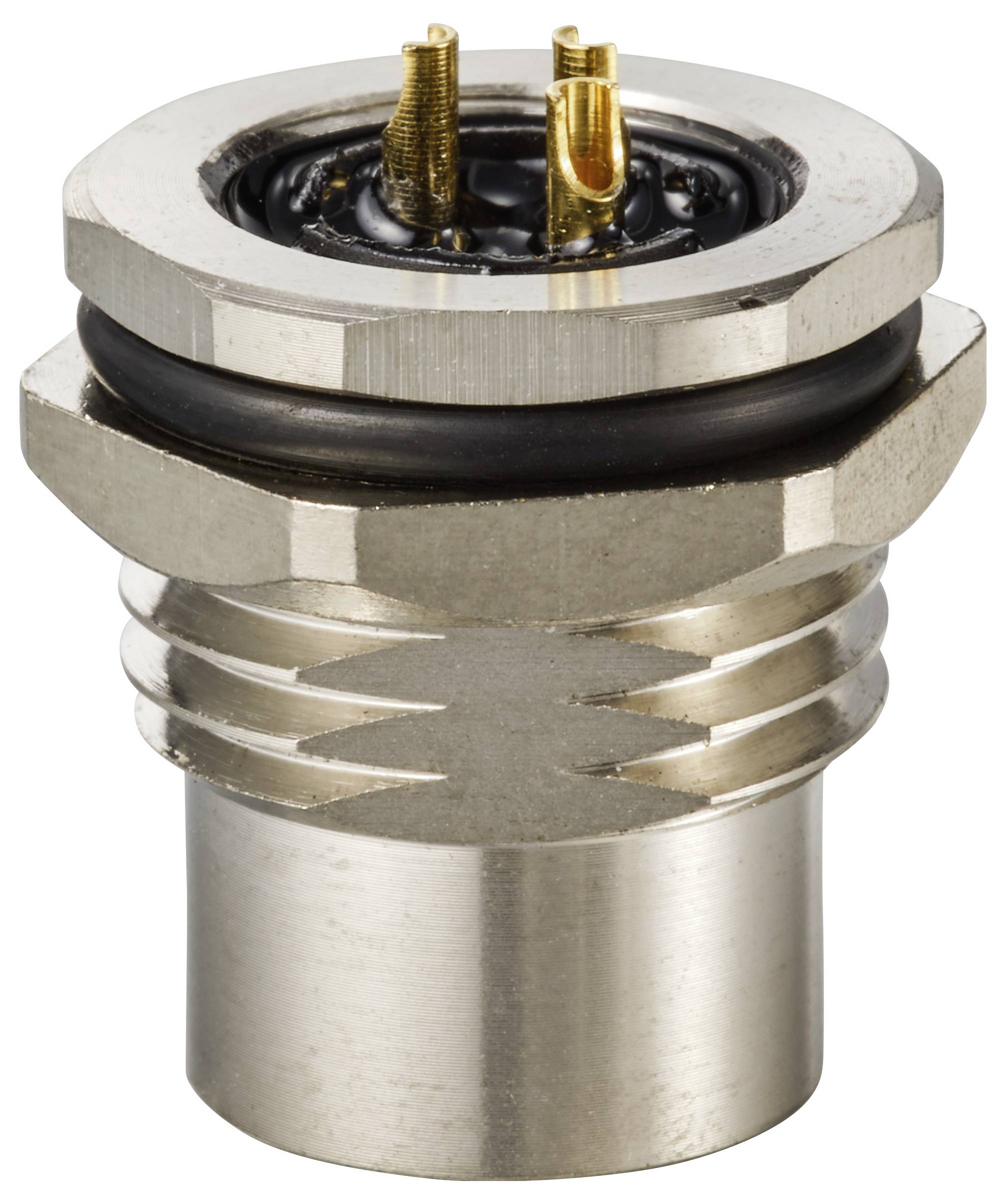

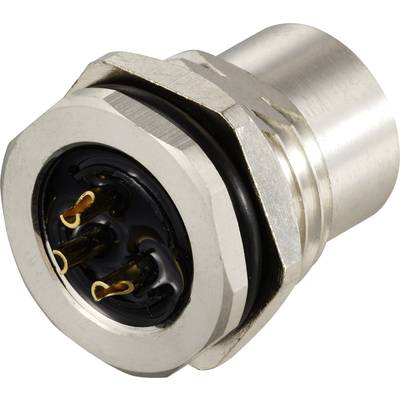

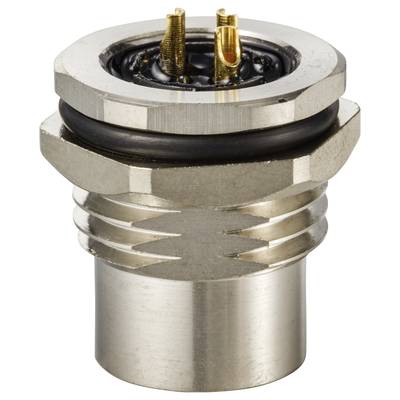

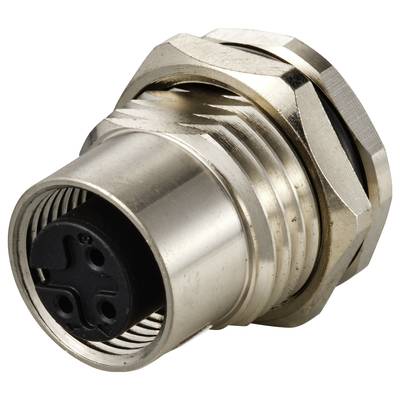

TRU COMPONENTS TC-12833196 Sensor/actuator recess-mount socket M12 Socket, built-in No. of pins (RJ): 3 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.03
5
7% = € 0.27
€ 3.76
10
9% = € 0.37
€ 3.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.03 / piece)
€
Technical specifications
- Connection type: Threaded connection
- Pollution level: 3
- Insertion and removal times: ≥500
- Contact resistance: ≤5 mΩ
- Insulation resistance: ≥100 MΩ
- Connector type
Socket, built-in
- No. of pins
3
- Nominal voltage
250 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Thread type connection side
M12
- Thread type (wiring and installation)
M16
- max. cross section
0.34 mm²
IP67
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Content
1 pc(s)
- Manufacturer part #
TC-12833196
- Type
TC-12833196
- RoHS-compliant
Yes
- Plastic free packaging
Plastic-free packaging
- Product type
Sensor/actuator recess-mount socket
Documents & Downloads
Datasheet
Datasheet 3208299 TRU COMPONENTS TC-12833196 Sensor/actuator recess-mount socket M12 Socket, built-in No. of pins (RJ): 3 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3208299 TRU COMPONENTS TC-12833196 Sensor/actuator recess-mount socket M12 Socket, built-in No. of pins (RJ): 3 1 pc(s)
Description
Metric M12 round plug with 12 mm fuse thread, for industrial automation and other demanding environments, for which compact and reliable power, signal and data connections are basic requirements.
For actuators, sensors, industrial ethernet networks and fieldbus applications.
This text is machine translated.
For actuators, sensors, industrial ethernet networks and fieldbus applications.
This text is machine translated.
