Image similar
UBC Bearing 6204 2Z Deep groove ball bearing Bore diameter 20 mm Outside diameter 47 mm Rotational speed (max.) 15000 U/
EAN:
Part number:
Item no:
Bore Ø
20 mm
Outside Ø
47 mm
Product type
Deep groove ball bearing
Type
6204 2Z
Manufacturer part #
RIKULA 6204 2Z
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.03
5
7% = € 0.27
€ 3.76
10
9% = € 0.37
€ 3.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.03 / piece)
€
Technical specifications
- Type
6204 2Z
- Manufacturer part #
RIKULA 6204 2Z
- Dim
(Ø x L) 47 mm x 14 mm
- (Ø)
47 mm
- Length
14 mm
- Features
Bilateral
- Bore Ø
20 mm
- Dynamic load rating (radial)
12700 N
- Outside Ø
47 mm
- Radial load rating
6550 N
- Rotational speed (max.)
15000 U/min
- Product type
Deep groove ball bearing
Variants(All information is without VAT, plus shipping costs)
Type
Bore Ø
Outside Ø
UBC Bearing 6204 2Z Deep groove ball bearing Bore diameter 20 mm Outside diameter 47 mm Rotational speed (max.) 15000 U/min
This article
6204 2Z
20 mm
47 mm
Minimum order quantity: 1
Multiple: 1
€ 4.03*
UBC Bearing 6200 2RS Deep groove ball bearing Bore diameter 10 mm Outside diameter 30 mm Rotational speed (max.) 17000 U/min
6200 2RS
10 mm
30 mm
Minimum order quantity: 1
Multiple: 1
€ 3.61*
UBC Bearing 6201 2Z Deep groove ball bearing Bore diameter 12 mm Outside diameter 32 mm Rotational speed (max.) 24000 U/min
6201 2Z
12 mm
32 mm
Minimum order quantity: 1
Multiple: 1
€ 3.18*

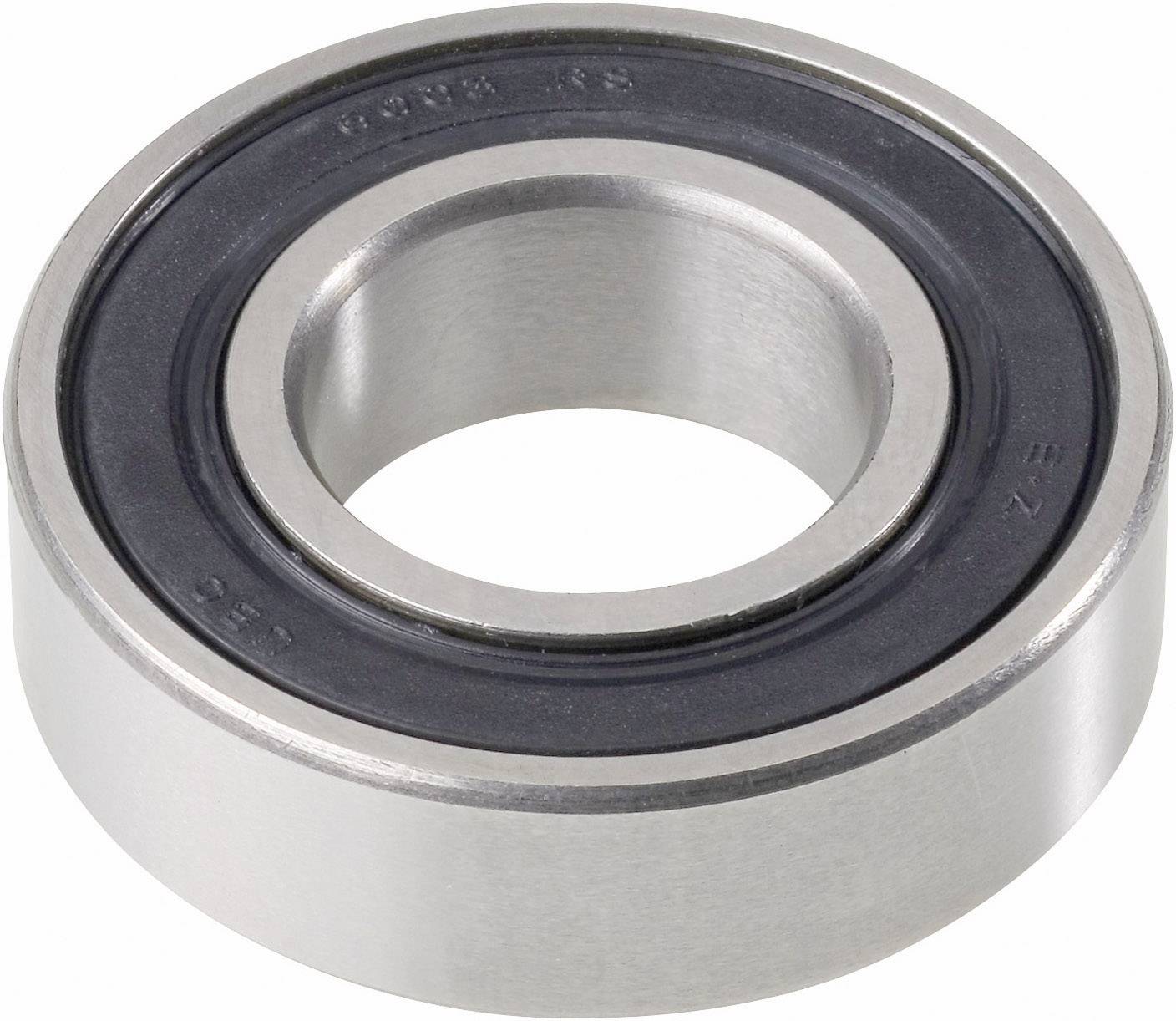

UBC Bearing 6201 2RS Deep groove ball bearing Bore diameter 12 mm Outside diameter 32 mm Rotational speed (max.) 16000 U/min
6201 2RS
12 mm
32 mm
Minimum order quantity: 1
Multiple: 1
€ 3.61*
UBC Bearing 6202 2Z Deep groove ball bearing Bore diameter 15 mm Outside diameter 35 mm Rotational speed (max.) 20000 U/min
6202 2Z
15 mm
35 mm
Minimum order quantity: 1
Multiple: 1
€ 3.61*
UBC Bearing 6202 2RS Deep groove ball bearing Bore diameter 15 mm Outside diameter 35 mm Rotational speed (max.) 14000 U/min
6202 2RS
15 mm
35 mm
Minimum order quantity: 1
Multiple: 1
€ 4.03*
UBC Bearing 6203 2Z Deep groove ball bearing Bore diameter 17 mm Outside diameter 40 mm Rotational speed (max.) 18000 U/min
6203 2Z
17 mm
40 mm
Minimum order quantity: 1
Multiple: 1
€ 4.03*
UBC Bearing 6203 2RS Deep groove ball bearing Bore diameter 17 mm Outside diameter 40 mm Rotational speed (max.) 12000 U/min
6203 2RS
17 mm
40 mm
Minimum order quantity: 1
Multiple: 1
€ 4.61*
UBC Bearing 6204 2RS Deep groove ball bearing Bore diameter 20 mm Outside diameter 47 mm Rotational speed (max.) 10000 U/min
6204 2RS
20 mm
47 mm
Minimum order quantity: 1
Multiple: 1
€ 5.03*
UBC Bearing 6205 2Z Deep groove ball bearing Bore diameter 25 mm Outside diameter 52 mm Rotational speed (max.) 14000 U/min
6205 2Z
25 mm
52 mm
Minimum order quantity: 1
Multiple: 1
€ 5.03*
Documents & Downloads
Datasheet
Datasheet 198579 UBC Bearing 6204 2Z Deep groove ball bearing Bore diameter 20 mm Outside diameter 47 mm Rotational speed (max.) 15000 U/
Description
Deep groove ball bearing, single row, DIN625
Deep groove ball bearings are the most widely sold type of bearing, because of their wide range of applications and low cost. They accept radial and axial forces and are suitable for high rotational speeds. Because of their constructional features, deep groove ball bearings are suitable for a wide range of applications. UBC deep groove ball bearings are heat treated, so that they can be used in operating temperatures of up to 150 °C.
Deep groove ball bearing with shields
The suffix 2Z after the type number indicates shields on both sides. The shields protect the inner part of the bearings from the ingress of dirt and other foreign bodies. If the outer ring rotates however, these bearings achieve no more than 40% of the maximum speed rating. Deep groove ball bearings covered on both sides, manufactured by UBC, greased for life and therefore maintenance-free.
Deep groove ball bearings with seals on both sides
The suffix 2RS after the type number indicates seals on both sides. These seals, made of rubber encased sheet steel reinforcement and closed with a sealing lip on the inner ring, offer a high degree of protection against the ingress of dirt and moisture. The synthetic rubber is resistant to a wide range of aggressive substances. Manufactured by UBC, these deep groove ball bearings are sealed on both sides, greased for life and therefore maintenance-free.
Deep groove ball bearings are the most widely sold type of bearing, because of their wide range of applications and low cost. They accept radial and axial forces and are suitable for high rotational speeds. Because of their constructional features, deep groove ball bearings are suitable for a wide range of applications. UBC deep groove ball bearings are heat treated, so that they can be used in operating temperatures of up to 150 °C.
Deep groove ball bearing with shields
The suffix 2Z after the type number indicates shields on both sides. The shields protect the inner part of the bearings from the ingress of dirt and other foreign bodies. If the outer ring rotates however, these bearings achieve no more than 40% of the maximum speed rating. Deep groove ball bearings covered on both sides, manufactured by UBC, greased for life and therefore maintenance-free.
Deep groove ball bearings with seals on both sides
The suffix 2RS after the type number indicates seals on both sides. These seals, made of rubber encased sheet steel reinforcement and closed with a sealing lip on the inner ring, offer a high degree of protection against the ingress of dirt and moisture. The synthetic rubber is resistant to a wide range of aggressive substances. Manufactured by UBC, these deep groove ball bearings are sealed on both sides, greased for life and therefore maintenance-free.
