Veroma 251100 1:10, 1:12, 1:14, 1:18 Transmission 1 pc(s)
EAN:
Part number:
Item no:
2 Piece(s)
Sales and shipping:
Number
Total (€ 163.86 / piece)
€
Only 2 Piece(s) available
Technical specifications
- Product type
Transmission
- Scale
1:10
1:12
1:14
1:18
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2110953 Veroma 251100 1:10, 1:12, 1:14, 1:18 Transmission 1 pc(s)
Description

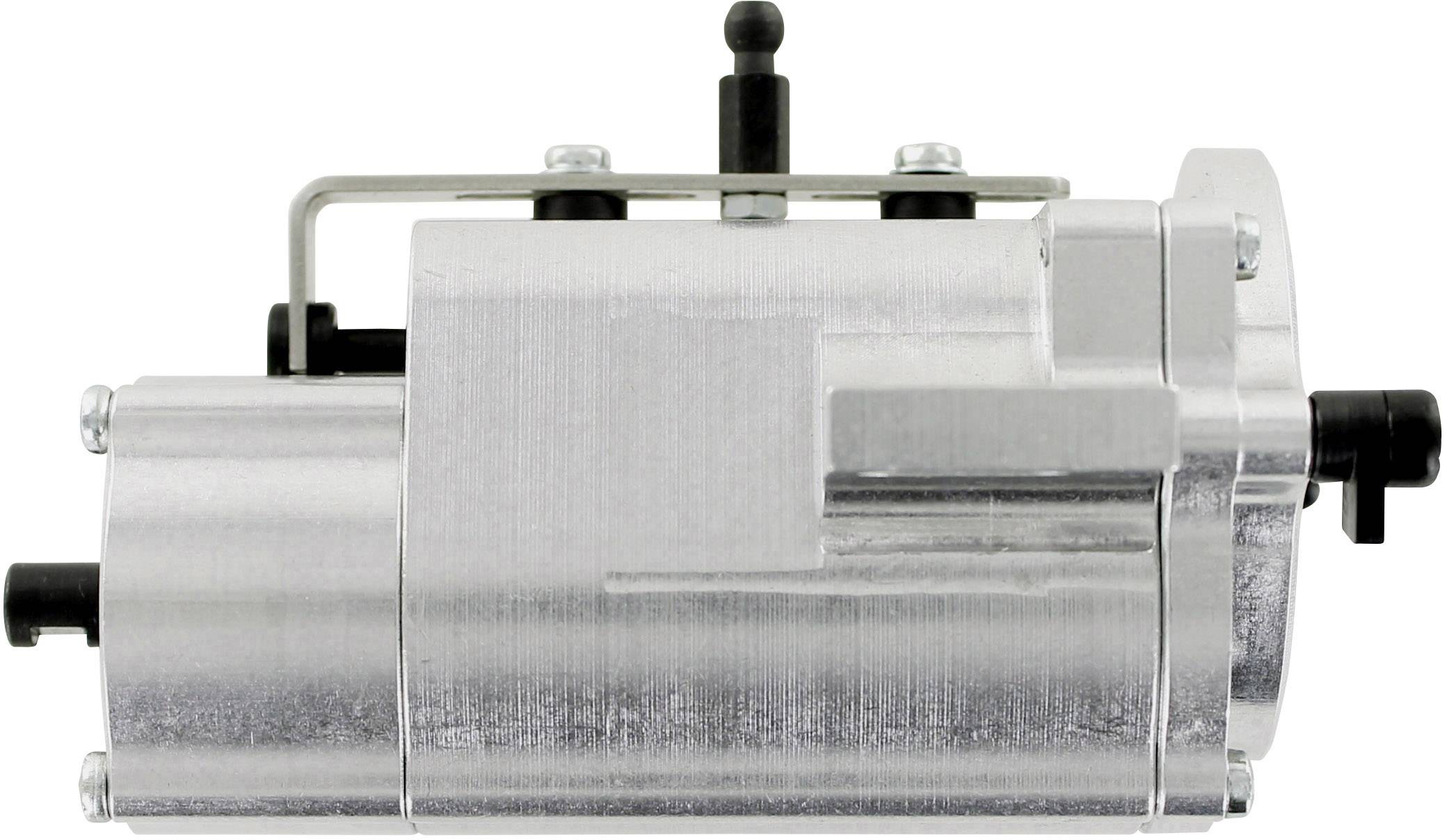

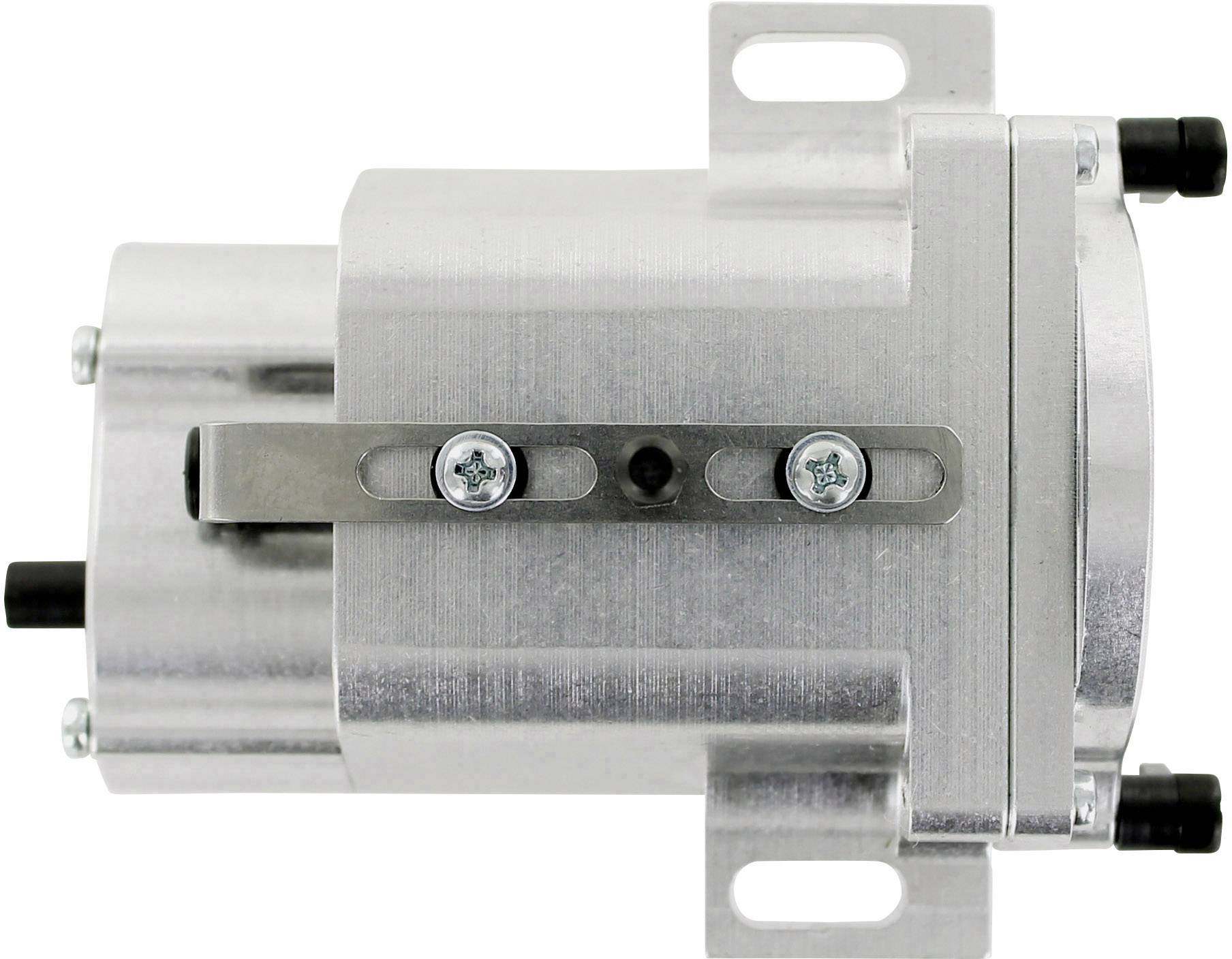

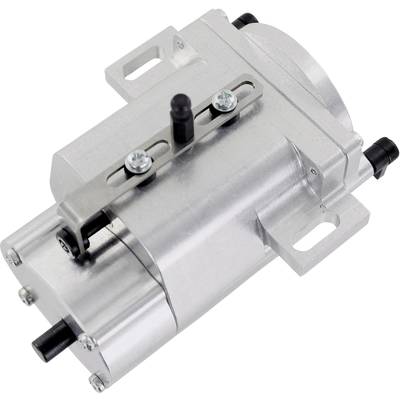

The gearbox is mounted, the motor and the matching flange are attached to the gearbox from the outside via two clamps, switched via a servo, the maximum input speed is 6,500 rpm. The attachment to the frame takes place via the existing retaining brackets on the transmission housing. The frame width should be between 60-63mm.
This text is machine translated.
This text is machine translated.
Features
- Gear housing made of aluminum
- Hardened gears made of steel
- 6-way ball bearing
- Suitable for the scale 1:16 - 1:10
- Ratios : 1st gear 22.65 : 1, 2nd gear 11.32 : 1, 3rd gear 5.66 : 1
- Dim. Length without motor 65mm, width 46.6mm, height 39.4mm, shaft output 5mm diameter
Scope of delivery
- Manual transmission
- Mounting screws
- Pivots
- User manual.
