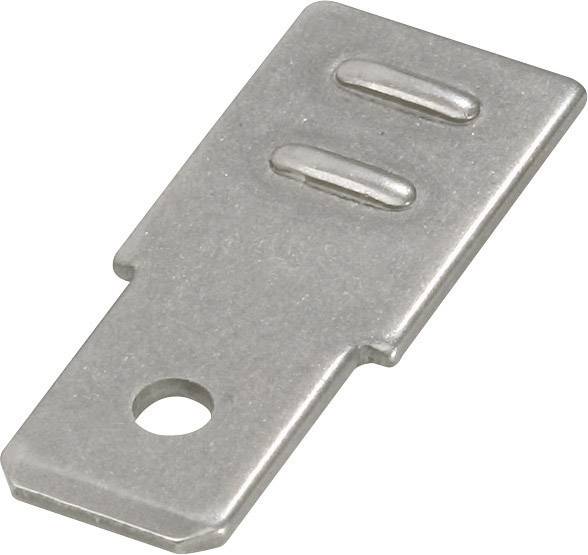

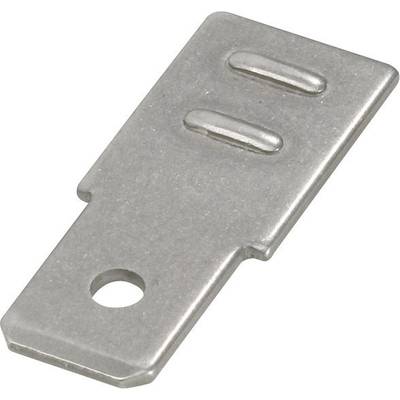

Vogt Verbindungstechnik 38402SBS.80 Blade connector Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Not insula
EAN:
Part number:
Item no:
Product type
Blade connector
Connector width
6.3 mm
Connector thickness
0.8 mm
Insulation type
Not insulated
Connection angle
180 °
Datasheet (PDF)
1717 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
20
-
€ 0.13
60
-
€ 0.13
100
8% = € 0.01
€ 0.12
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 20
Total (€ 0.13 / piece)
€ 0.23
-43 %
€
Highlights & Details
Socket buckle for welded attachment
- Metal
- 6.3 mm x 0.8 mm
- -
Technical specifications
- Product type
Blade connector
- Factory colour
Metal
- Connector width
6.3 mm
- Connector thickness
0.8 mm
- Support sleeve
No
- Insulation type
Not insulated
- Connection angle
180°
- Contact material
Steel plate
- Content
1 pc(s)
- Manufacturer part #
38402SBS.80
- Type
38402SBS.80
- Cross-section range
- RoHS-compliant
Yes
- Size
6.3 x 0.8 mm
- Material (details)
Steel Rf
- Type
6.3 x 0.8
- Cross section
-
- Certification marks
DIN 46342 section 1
- Connection
-
- Surface
Polished
Documents & Downloads
Datasheet
Datasheet 730028 Vogt Verbindungstechnik 38402SBS.80 Blade connector Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Not insula
Description
Rf = rust free steel, St = Steel.
