Buy Vogt Verbindungstechnik 3944S Blade receptacle Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Insulated Red 1

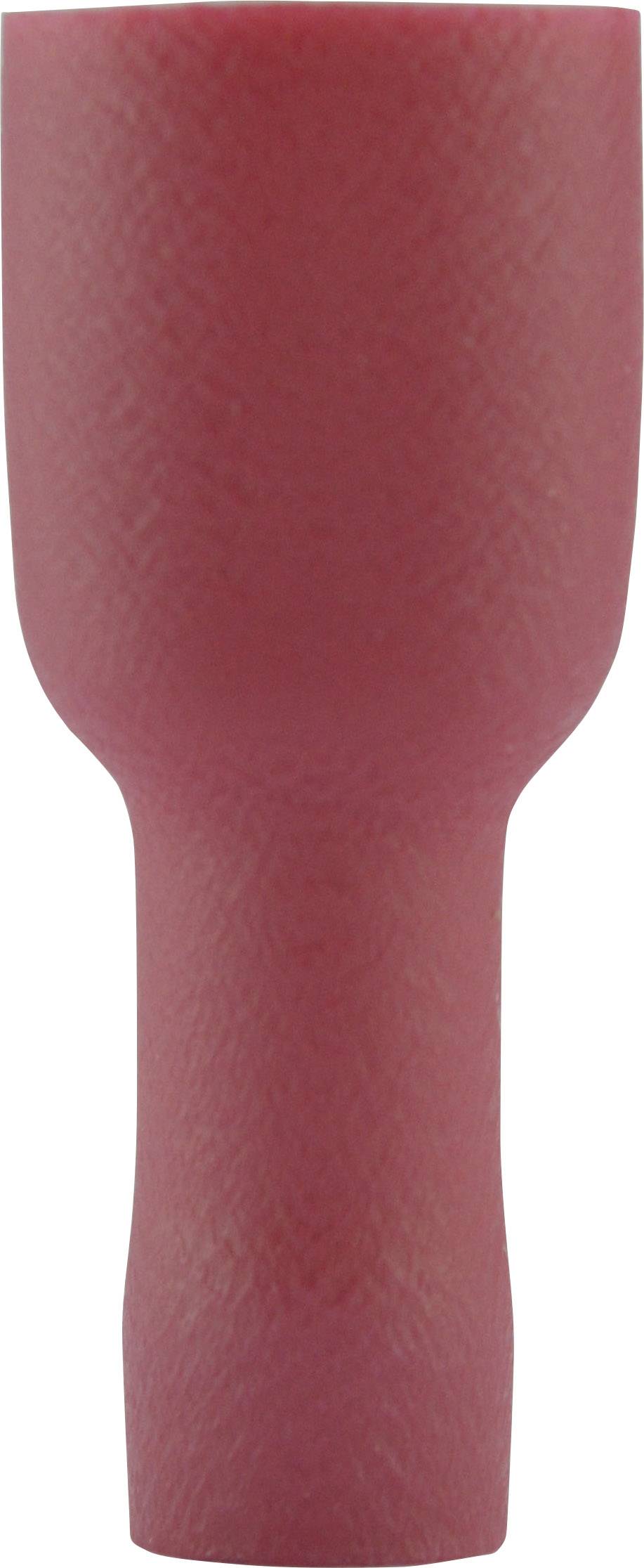

A red, cylindrical connector, presumably for electrical connections, stands upright.

Image similar

Technical drawing of a circular pipe with a reduced centre and cross-sectional view. Arrows and dimensions clarify the shape.

1/2

Image similar

Product type

Blade receptacle

Connector width

6.3 mm

Insulation type

Insulated

Content

1 pc(s)

max. cross section

1 mm²

Datasheet (PDF)

3749 Piece(s)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 0.15 / piece)

€ 0.34

-56 %

€

Report legal concerns

Highlights & Details

Vogt Verbindungstechnik 3944S Blade receptacle Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Insulated Red 1 pc(s)

Red
6.3 mm x 0.8 mm
0.50 mm² - 1 mm²

Technical specifications

Product type: Blade receptacle

Connector width: 6.3 mm

Factory colour: Red

Connector thickness: 0.8 mm

Support sleeve: No

Insulation type: Insulated

Connection angle: 180°

Contact material: Brass tin plated

Content: 1 pc(s)

max. cross section: 1 mm²

Type: sleeve

Min. cross section: 0.50 mm²

Manufacturer part #: 3944S

Insulation material: PVC

Cross-section range: 0.50 - 1 mm²

Size: 6.3 x 0.8 mm

Type: 3944S

Insulation: Fully-insulated PVC

Material (details): Brass, tin-plated

Type: 6.3 x 0.8 mm

Cross section: 0.5 - 1.0 mm²

Connection: -

Variants(All information is without VAT, plus shipping costs)

Factory colour

Connector width

max. cross section

Support sleeve

Insulation type

Min. cross section

Connector thickness

Vogt Verbindungstechnik 3905S Blade receptacle Connector width: 4.8 mm Connector thickness: 0.8 mm 180 ° Partially insulated Blue 1 pc(s)

Item no:732389

Blue

4.8 mm

2.50 mm²

Partially insulated

1.50 mm²

0.8 mm

Vogt Verbindungstechnik 390008S-1 Blade receptacle Connector width: 2.8 mm Connector thickness: 0.8 mm 180 ° Partially insulated Red 1 pc(s)

Item no:732630

Red

2.8 mm

1 mm²

Partially insulated

0.50 mm²

0.8 mm

Vogt Verbindungstechnik 3903S-1 Blade receptacle Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Partially insulated Red 1 pc(s)

Item no:732699

Red

6.3 mm

1 mm²

Partially insulated

0.50 mm²

0.8 mm

Vogt Verbindungstechnik 3902S Blade receptacle Connector width: 4.8 mm Connector thickness: 0.8 mm 180 ° Partially insulated Red 1 pc(s)

Item no:732788

Red

4.8 mm

1 mm²

Partially insulated

0.50 mm²

0.8 mm

Vogt Verbindungstechnik 389905S Blade receptacle Connector width: 2.8 mm Connector thickness: 0.5 mm 180 ° Partially insulated Blue 1 pc(s)

Item no:736513

Blue

2.8 mm

2.50 mm²

Partially insulated

1.50 mm²

0.5 mm

Vogt Verbindungstechnik 389908S Blade receptacle Connector width: 2.8 mm Connector thickness: 0.8 mm 180 ° Partially insulated Blue 1 pc(s)

Item no:736527

Blue

2.8 mm

2.50 mm²

Partially insulated

1.50 mm²

0.8 mm

Vogt Verbindungstechnik 390005S Blade receptacle Connector width: 2.8 mm Connector thickness: 0.5 mm 180 ° Partially insulated Red 1 pc(s)

Item no:736540

Red

2.8 mm

1 mm²

Partially insulated

0.50 mm²

0.5 mm

Vogt Verbindungstechnik 3901S Blade receptacle Connector width: 4.8 mm Connector thickness: 0.5 mm 180 ° Partially insulated Red 1 pc(s)

Item no:736553

Red

4.8 mm

1 mm²

Partially insulated

0.50 mm²

0.5 mm

Vogt Verbindungstechnik 3904S Blade receptacle Connector width: 4.8 mm Connector thickness: 0.5 mm 180 ° Partially insulated Blue 1 pc(s)

Item no:736567

Blue

4.8 mm

2.50 mm²

Partially insulated

1.50 mm²

0.5 mm

Vogt Verbindungstechnik 3902 Blade receptacle Connector width: 4.8 mm Connector thickness: 0.8 mm 180 ° Partially insulated Red 1 pc(s)

Item no:736933

Red

4.8 mm

1 mm²

Yes

Partially insulated

0.50 mm²

0.8 mm

Documents & Downloads

Datasheet

Datasheet 732494 Vogt Verbindungstechnik 3944S Blade receptacle Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Insulated Red 1
