Highlights & Details
VOLTCRAFT Charge Manager CM2020 Charger for cylindrical cells NiCd, NiMH AAA , AA , C, D, 9V PP3
- Impressive 16A of charging current in total
- RS-232 serial interface with PC
- Extensive charging and maintenance programs
Technical specifications
- Matching rechargeable battery
NiCd
NiMH
- Product type
Charger for cylindrical cells
- Suitable for battery size
AAA
AA
C
D
9V PP3
- Charging slots
10
- AAA
8
- AA
8
- Size C
8
- Size D
8
- 9 V
2
- Operating voltage
100 - 240 V
- Discharge current
850 mA
- Max. charging current per slot
4000 mA
- Charging current (AAA)
700 mA
- Charging current (AA)
2000 mA
- Charging current (C)
4000 mA
- Charging current (mono)
4000 mA
- 9 V battery charging current
21 mA
- Charger features
Discharger function
Graphic display
Battery diagnostics
- Average charging time for 9 V/150 mAh batteries
430 Min.
- Charging time for AAs
60 Min.
- Width
330 mm
- Height
100 mm
- Depth
250 mm
- Dim
(W x H x D) 330 x 100 x 250 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 202020 VOLTCRAFT Charge Manager CM2020 Charger for cylindrical cells NiCd, NiMH AAA , AA , C, D, 9V PP3
Conformity certificate
Conformity certificate 202020 VOLTCRAFT Charge Manager CM2020 Charger for cylindrical cells NiCd, NiMH AAA , AA , C, D, 9V PP3
Warranty Terms
Warranty Terms 202020 VOLTCRAFT Charge Manager CM2020 Charger for cylindrical cells NiCd, NiMH AAA , AA , C, D, 9V PP3
Description

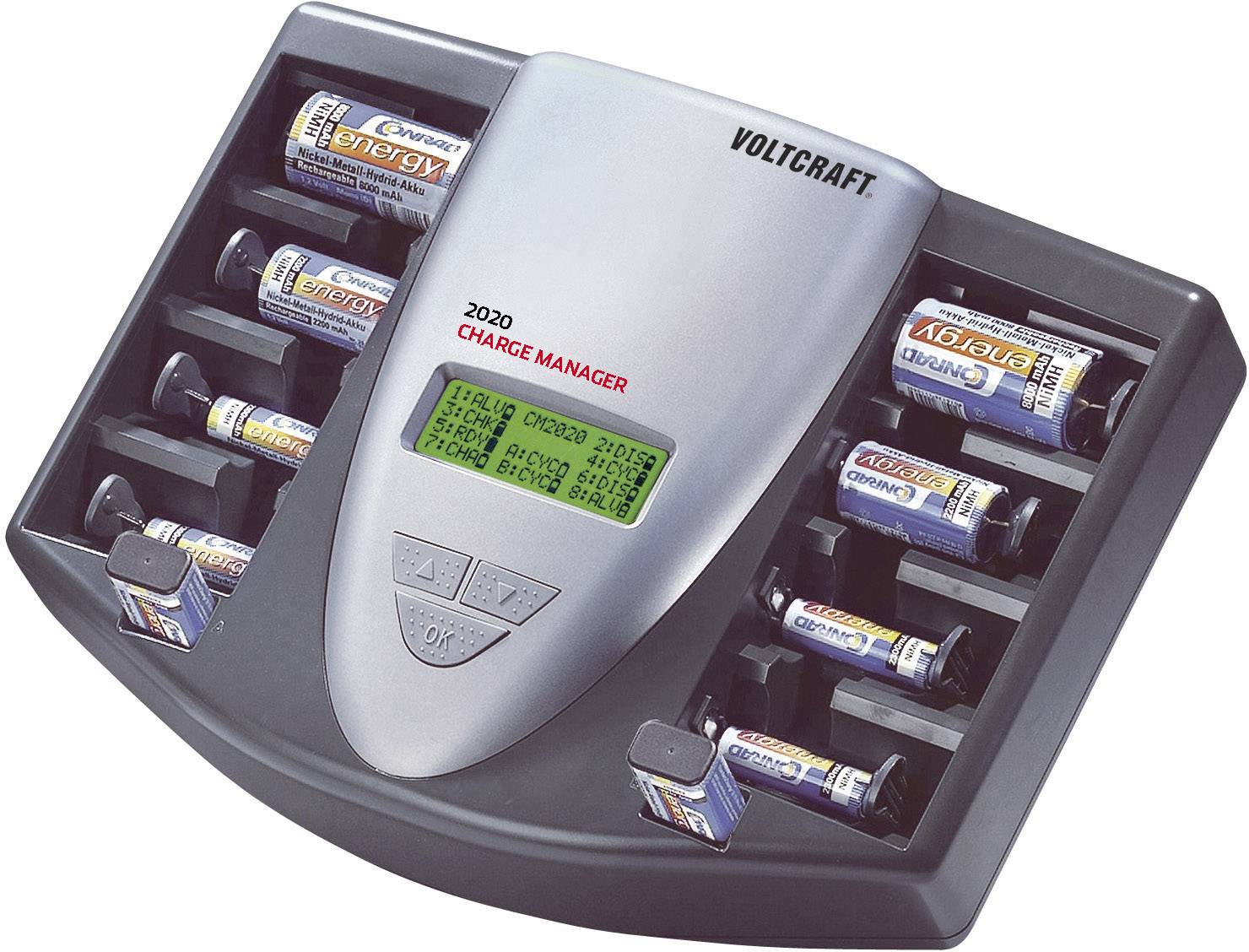

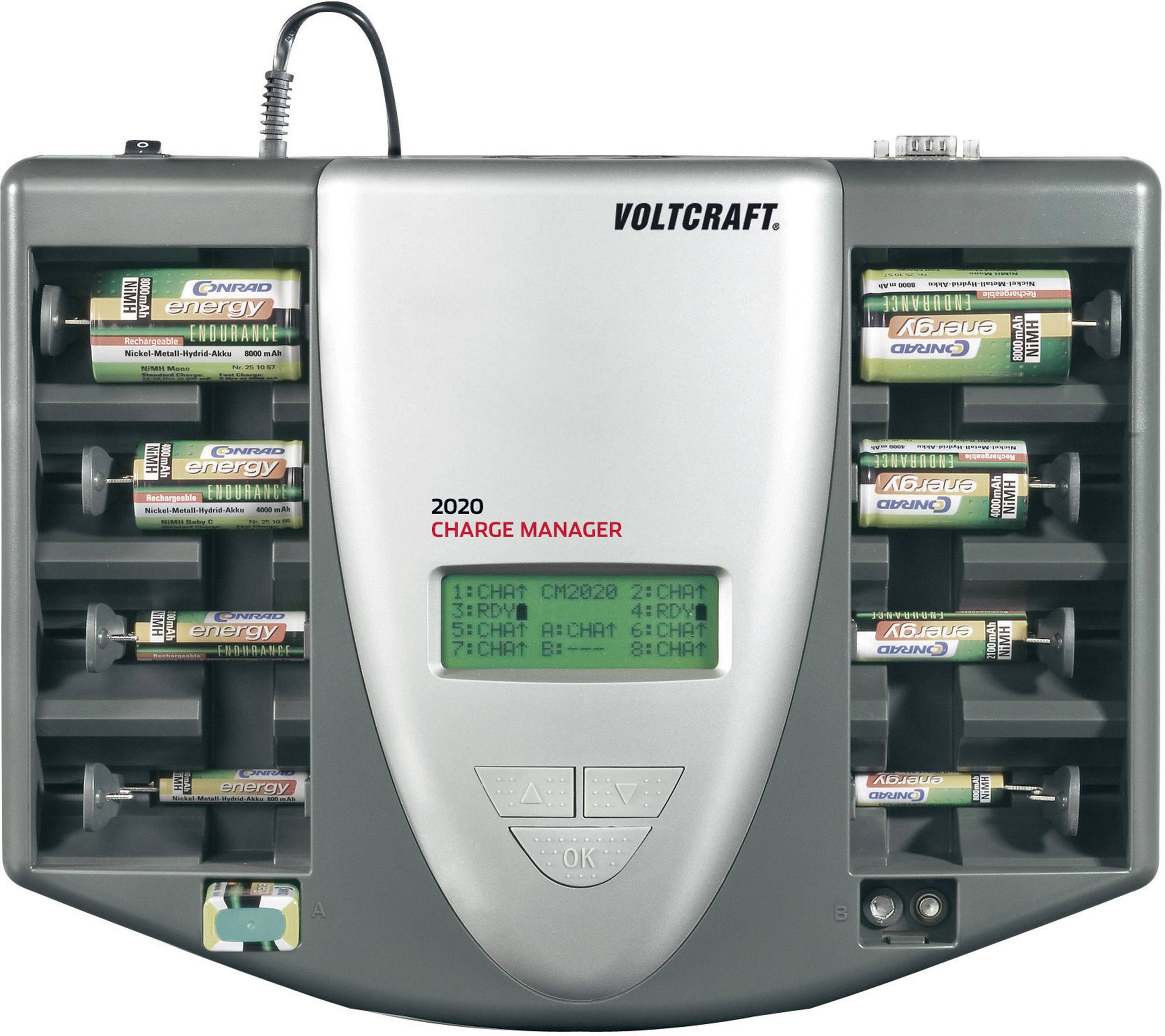

The most advanced member of Voltcraft's Charge Manager series, the Charge Manager 2020 offers professional intelligent charging for up to 10 batteries at once.
The Charge Manager 2020 ensures each battery is charged with the highest possible charging current through its unique power management technology. As a result, it is possible to charge 8 high current 2200 mAh AA batteries in just 1 hour, whilst guaranteeing 100% protection against overcharging.
At the centre of the Charge Manager 2020 is its integrated microcontroller, which allows a variety of programs for battery maintenance to be programmed: charge, discharge, check, cycle, revive. The serial interface allows data from the charger to be transmitted to a PC.
The Charge Manager 2020 ensures each battery is charged with the highest possible charging current through its unique power management technology. As a result, it is possible to charge 8 high current 2200 mAh AA batteries in just 1 hour, whilst guaranteeing 100% protection against overcharging.
At the centre of the Charge Manager 2020 is its integrated microcontroller, which allows a variety of programs for battery maintenance to be programmed: charge, discharge, check, cycle, revive. The serial interface allows data from the charger to be transmitted to a PC.
Features
- Five battery-care programs (Charge, discharge, check, cycle and alive)
- Switch-off criterion: Sensitive peak, Delta-T method and minus delta V process
- Automatic trickle charge
- Individual bay monitoring
- Incorrectly inserted or defective battery detection
- Refresh/discharge function for 'tired' batteries.
- Automatic battery recognition
- Fan control

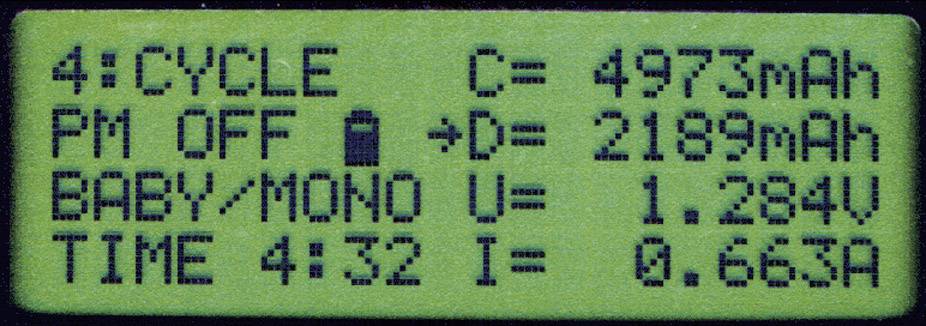

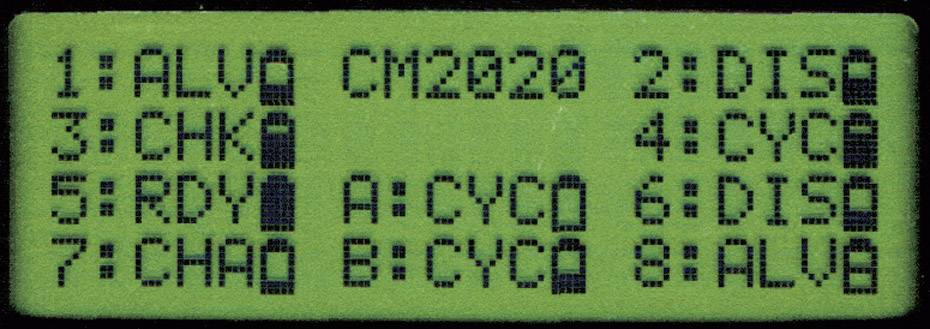

- Large high contrast LC display
- Serial PC-interface
- Innovative technology and menu control
Scope of delivery
- Charge Manager
- Power cable
- User manual.
Hints
The software package required for this can be ordered separately using order no. 51 20 19.
