VOLTCRAFT V-Charge 60 Scale model battery charger 6 A
EAN:
Part number:
Item no:
Show alternatives
Sales and shipping:
Total (€ 29.40 / piece)
€
Highlights & Details

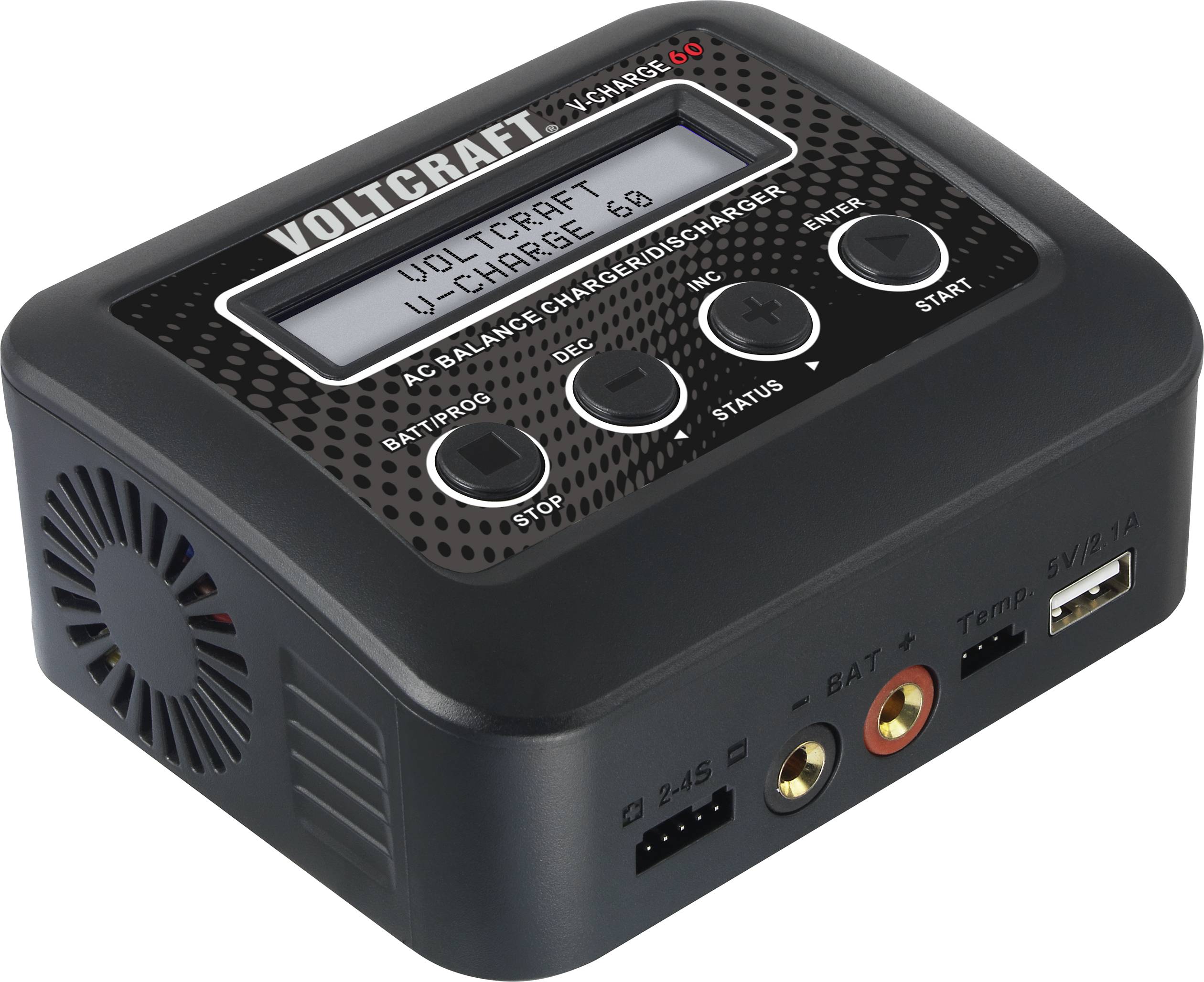

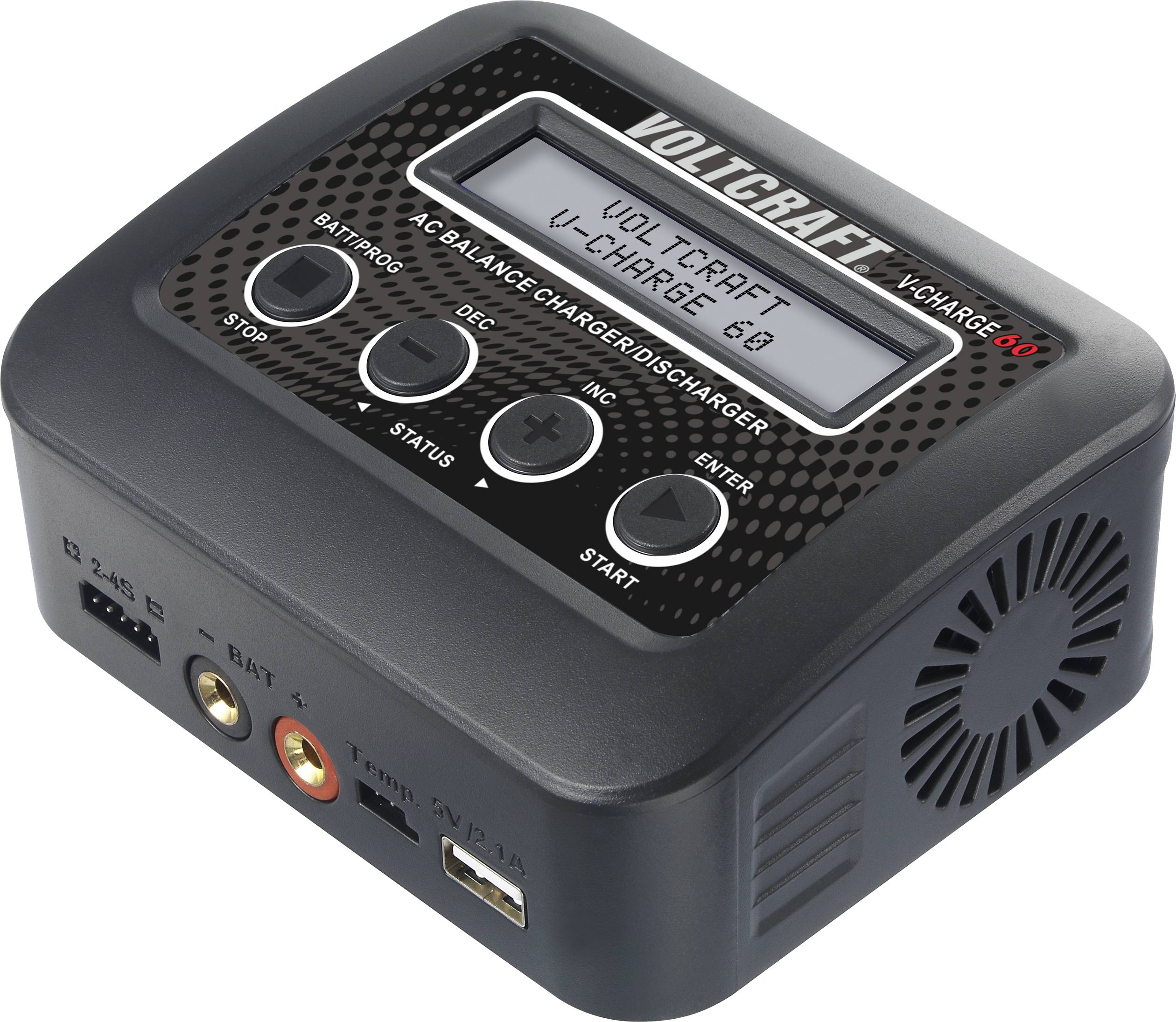

Model-making charger V-Charge 60
- 60 W
- Terminal Voltage Control (TVC)
- Battery checker
- USB charging for smart devices
Technical specifications
- Have temp. sensor socket
- Termina Voltage control ( TVC)
- Bettery meter
- Automatic charging current limit
- Balancing individual cells fro battery discharging
- Maximum Safety ( delta-peak sensitivity for NiMH/NiCd battery)
- Operating voltage
100 - 240 V / AC
- Max. charging capacity
60 W
- Charging current (max.)
6 A
- Discharge current
2 A
- Connector system
T connectors
- Dim
(L x W x H) 115 x 50 x 95 mm
- Height
95 mm
- Length
115 mm
- Width
50 mm
- Suitable for (No. of LiPo/LiIon/LiFe batteries) (max.)
4
- Suitable for (No. of LiPo/LiIon/LiFe batteries) (min.)
2
- Suitable for (no. of NiCd/NiMH batteries) (max.)
8
- Suitable for (No. of NiCd/NiMH batteries) (min.)
6
- Manufacturer part #
VC-11335920
- No. of cells
4
- Weight
326 g
- Plastic free packaging
Plastic-free packaging
- Product type
Scale model battery charger
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2267184 VOLTCRAFT V-Charge 60 Scale model battery charger 6 A
Warranty Terms
Warranty Terms 2267184 VOLTCRAFT V-Charge 60 Scale model battery charger 6 A
Description
One charger, more safety
The Voltcraft V-Charge 60 model charger, supplied with a T-to-banana plug cable, has a temperature sensor socket and is thus protected from overheating. The automatic charging current limitation offers even more protection during the charging process. In addition, the charger is equipped with a voltage control terminal and enables the adjustment of individual cells for battery discharge.
This text is machine translated.
The Voltcraft V-Charge 60 model charger, supplied with a T-to-banana plug cable, has a temperature sensor socket and is thus protected from overheating. The automatic charging current limitation offers even more protection during the charging process. In addition, the charger is equipped with a voltage control terminal and enables the adjustment of individual cells for battery discharge.
This text is machine translated.
Features
- Real-time cell voltage (monitor the charging status)
- Automatic charging current limit
- Balances individual cells for battery discharging
- Maximum safety (delta-peak sensitivity for NiMH/NiCd battery)
- Temperature sensor socket

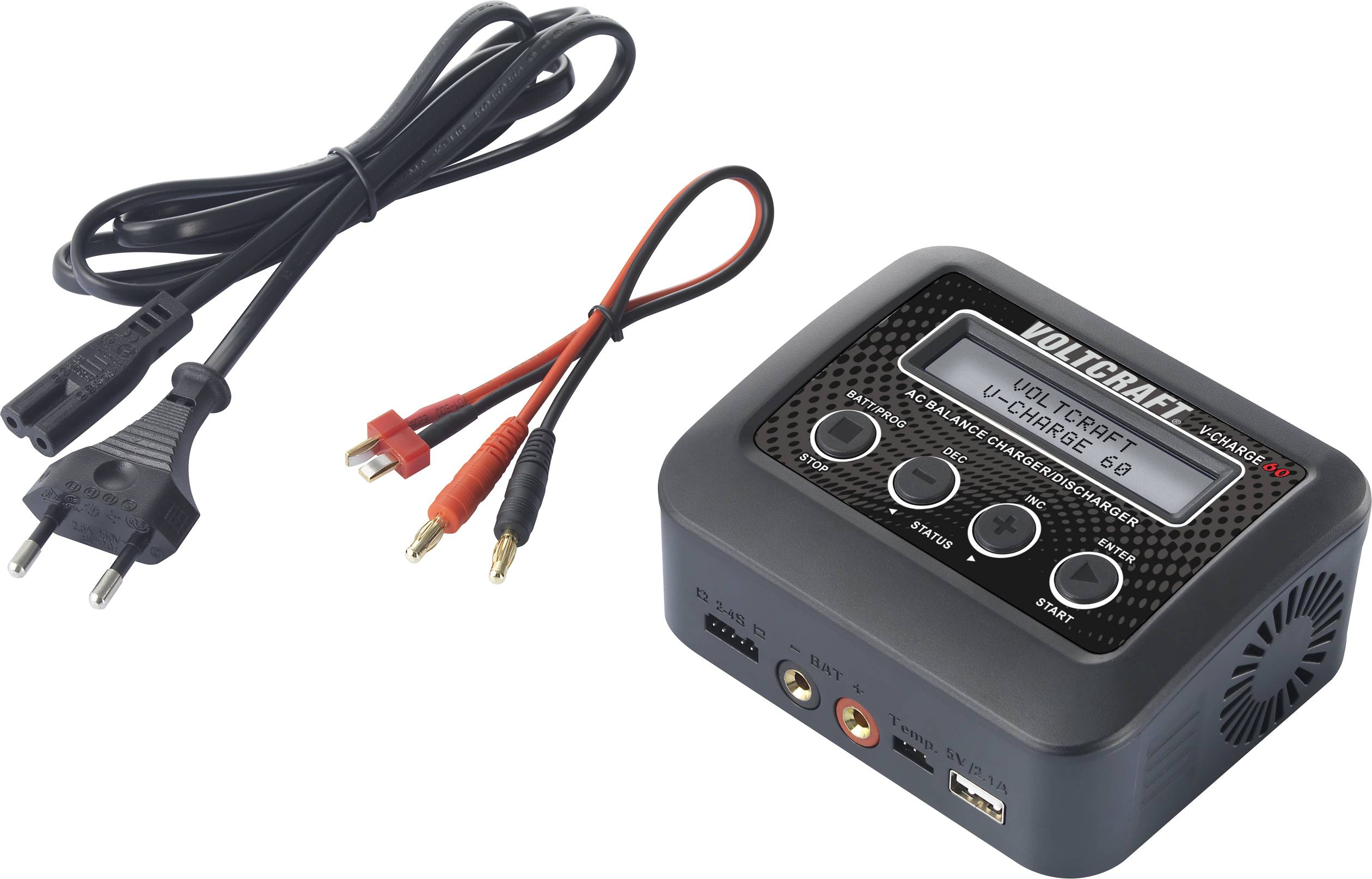

Scope of delivery
- Charger
- T to banana plug cable
- AC power cable
- CD manual
- Safety information
Hints
No PC interface
Input voltage: AC 100-240 V
Charging power: 60 W
Discharge power: 10 W
Charging current: 0.1-6.0 A
Discharge current: 0.1-2.0 A
Balance current: 200 mA/cell
LiPo/LiFe/LiIo/LiHV cells: 2-4 cells
NiCd/NiMH battery cells: 6-8 cells
Pb battery voltage: 6V- 12V
Battery data memory: 10 profiles
Internal tempeture: 80 degrees Celsius
Internal fan operates at 40 degrees Celsius
