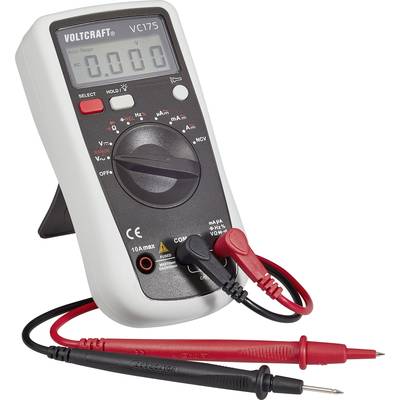

VOLTCRAFT VC175 Handheld multimeter Digital CAT III 600 V Display (counts): 4000
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Total (€ 32.76 / piece)
€
Highlights & Details
VC175 digital multimeter
- CAT III 600 V
- 4000 counts
- Autoranging
- Non-contact voltage test
- AC / DC current measurement range
- Capacitance measurement
- Frequency and duty cycle measurement
- Flashlight function and backlight
- 600 V HRC fuses
Technical specifications
- Voltage reading range DC (min.)
1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
1 mV
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
0.1 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
0.1 µA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
0.1 Ω - 40 MΩ
- Reading range - capacity
0.01 nF -100 µF
- Frequency reading range
10 Hz - 10 MHz
- DC resistance
10 MΩ
- AC resistance
4.5 MΩ
- Basic accuracy
0.8 %
- Measurement type (details)
Average
- Frequency range
45 Hz - 400 Hz Hz
- Interfaces
none
- Power supply (details)
9 V battery
- Height
150 mm
- Width
75 mm
- Weight
200 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
VC175
- Display
Digital
- Display (counts)
4000
- Dim
(W x H) 75 mm x 150 mm
Documents & Downloads
Datasheet
Datasheet 124457 VOLTCRAFT VC175 Handheld multimeter Digital CAT III 600 V Display (counts): 4000
User & Safety Instructions
User & Safety Instructions 124457 VOLTCRAFT VC175 Handheld multimeter Digital CAT III 600 V Display (counts): 4000
User & Safety Instructions 124457 VOLTCRAFT VC175 Handheld multimeter Digital CAT III 600 V Display (counts): 4000
Conformity certificate
Conformity certificate 124457 VOLTCRAFT VC175 Handheld multimeter Digital CAT III 600 V Display (counts): 4000
Warranty Terms
Warranty Terms 124457 VOLTCRAFT VC175 Handheld multimeter Digital CAT III 600 V Display (counts): 4000
Description
Robust unit with professional data entry and automatic scaling. VOLTCRAFT ® provides every user and scope of the right equipment. From entry-level to professional model. Always on the cutting edge of technology and the usual low price The VC100 series is designed for all measurement tasks in the household and hobby. Even professional tasks can be performed up to 600 V.
Features
- Diode test
- Aud. Continuity Tester
- Non-contact AC voltage detector
- Hold function
- Low battery display
- Auto power-off
- Robust housing with soft rubber protection
Scope of delivery
- Test Leads
- 9 V battery
- Manual
Hints
ISO-calibrated product available.
