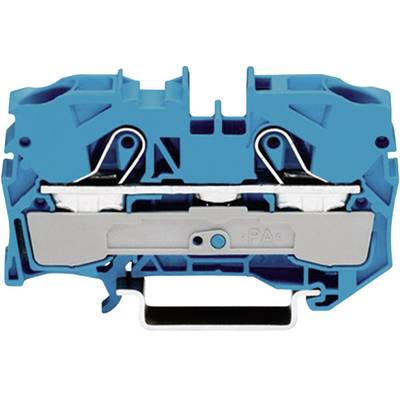

WAGO 2010-1204 Continuity 10 mm Pull spring Configuration: N Blue 1 pc(s)
EAN:
Part number:
Item no:
Connection
Pull spring
Cross section (flexible) (min.)
0.50 mm²
Cross section (flexible) (max.)
16 mm²
Cross section (inflexible) (min.)
0.50 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
10
7% = € 0.18
€ 2.33
25
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.51 / piece)
€
Highlights & Details
WAGO 2010-1204 Continuity 10 mm Pull spring Configuration: N Blue 1 pc(s)
- Durchgangsklemme
- TOPJOB®S
- CAGE CLAMP®
Technical specifications
- Connection
Pull spring
- Configuration
N
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
20
- AWG max.
6
- Clamp width
10 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Blue
- Nominal current
57 A
- Nominal current - rounded value
57 A
- Nominal voltage
800 V
- Min. stripping length
17 mm
- Stripping length (max.)
19 mm
- Manufacturer part #
2010-1204
- Content
1 pc(s)
- Type
Durchgangsklemme
- Width
10 mm
- Weight
0.02
- Type
2-conductors
- Nominal current (details)
57 A (76 A for flexible conductors)
- Connection
-
DIN rail (top hat rail) 35 mm
Blue
10
67.8 mm
36.9 mm
800 V
105-105 °C
V0
TRUE
Spring clamp connection
Spring clamp connection
1
2
FALSE
2.5-16 mm²
2.5-10 mm²
0.5-16 mm²
0.5-10 mm²
Thermoplastic
57 A
TRUE
- Product type
Continuity
Documents & Downloads
Datasheet
Datasheet 730725 WAGO 2010-1204 Continuity 10 mm Pull spring Configuration: N Blue 1 pc(s)
User & Safety Instructions
User & Safety Instructions 730725 WAGO 2010-1204 Continuity 10 mm Pull spring Configuration: N Blue 1 pc(s)
Description
The protective conductor terminal 2010 made possible by the CAGE CLAMP S connector simple plug from a wire- and flexible, provided with crimped ferrules, connectors.
