Buy WAGO 233-536 Spring-loaded terminal 0.50 mm² Number of pins 36 Orange 40 pc(s)

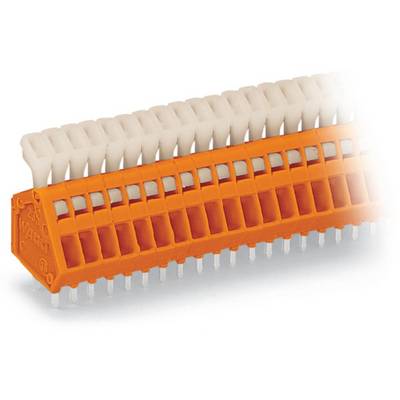

An orange and white multi-pin connector strip used for electronic applications.

'Current Loadability Curve': Diagram shows current in amperes (Y-axis) against ambient temperature in °C (X-axis). Lines vary for 2-, 4-, 6-, 12-pole configurations.

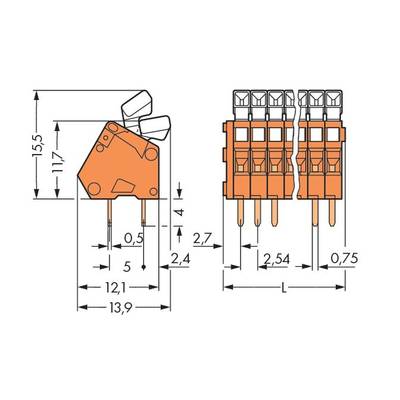

Technical drawing of an electrical connector with dimensions in millimetres for mounting and connection details.

1/3

Datasheet (PDF)

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 40 pc(s))

Set(s)

Total (€ 584.03 / piece)

€

Report legal concerns

Highlights & Details

PCB terminal strip

Content 40 pc(s)

Technical specifications

PCB T.STR. 36 POL. 2,54 MM ORANGE

Features: + CAGE CLAMP®

CS: 2.54 mm

No. of rows: 1

Pins per row: 36

Number of pins: 36

Series: 233

Min. stripping length: 6 mm

Stripping length (max.): 6 mm

Connection: Spring-loaded terminal
Print

Cross section (flexible) (min.): 0.08 mm²

Nominal current - rounded value

Cross section (inflexible) (min.): 0.08 mm²

Cross section (flexible) (max.): 0.50 mm²

Cross section (inflexible) (max.): 0.50 mm²

AWG (min.): 28

Connector orientation: At an angle (to the PCB)

AWG max.: 20

Contact material: Cathode copper, tin plated

Factory colour: Orange

Wire protection: Yes

Content: 40 pc(s)

Height: 19.50 mm

Length: 13.90 mm

Width: 93.74 mm

Industrial packaging: Yes

Manufacturer part #: 233-536

Type: 233-536

Nominal voltage: 160 V

Product type: Spring-loaded terminal

Documents & Downloads

Datasheet

Datasheet 729113 WAGO 233-536 Spring-loaded terminal 0.50 mm² Number of pins 36 Orange 40 pc(s)

User & Safety Instructions

User & Safety Instructions 729113 WAGO 233-536 Spring-loaded terminal 0.50 mm² Number of pins 36 Orange 40 pc(s)

WAGO 233-536 Spring-loaded terminal 0.50 mm² Number of pins 36 Orange 40 pc(s)
